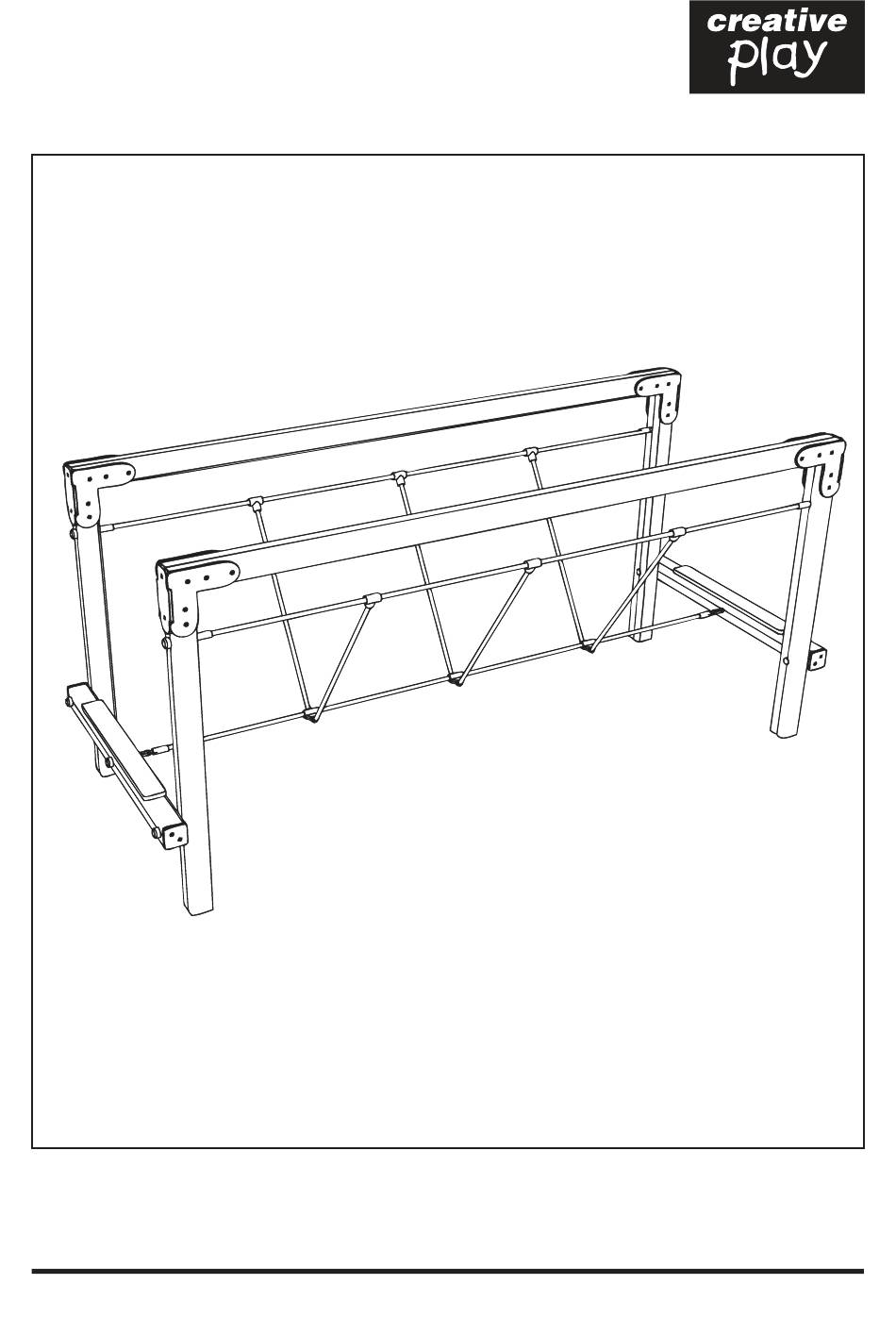

- Page 1 ROPE BRIDGE Installation Instructions REF: CH104 - ROPE BRIDGE pg 1 of 8...
- Page 2 PARTS required (INC. 90x90 Playtec L’s and backs PRE-ASSEMBLED) (INC. end caps and 800x90 HEX SLAT) (NET ASSEMBLY including 2 x EYE- BOLTS and QUICKLINKS) (FM80 ‘Brass screws’) (M12 200* cup square hex) (End Caps) (90x90 with 2 HOLES) (M12 Nylocs) pg 2 of 8 REF: CH104 - ROPE BRIDGE...
- Page 3 TOOLS required pg 3 of 8 REF: CH104 - ROPE BRIDGE...
- Page 4 Foundation Details FINISHED GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE REF: CH104 - ROPE BRIDGE pg 4 of 8...
- Page 5 Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: CH104 - ROPE BRIDGE pg 5 of 8...
- Page 6 Assembly Instructions Attach the RB1 timbers to the RB2 timbers Using M12 200* cup square hex bolts / NYLOCS / END CAPS Attach the RB3 timbers to the RB1 timbers Using FM80 BRASS SCREW and the PRE-ATTACHED Playtec L’s and Backs pg 6 of 8 REF: CH104 - ROPE BRIDGE...
- Page 7 Assembly Instructions Attach the NET ASSEMBLY to the RB1 / RB2 timbers Using NYLOCS / END CAPS pg 7 of 8 REF: CH104 - ROPE BRIDGE...
- Page 8 Additional Drawings pg 8 of 8 REF: CH104 - ROPE BRIDGE...
