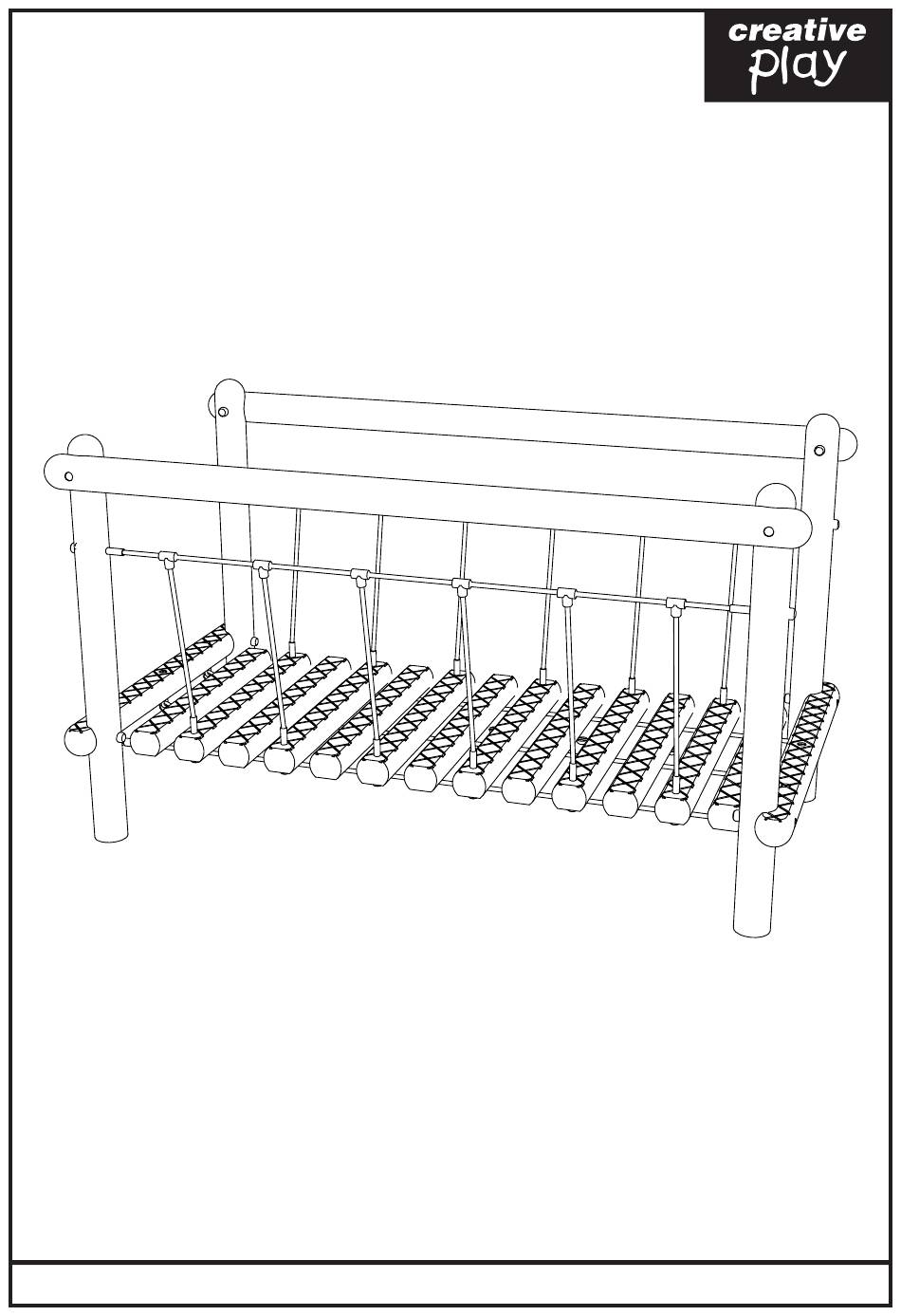

- Page 1 CH106-R - CLATTERBRIDGE Installation Instructions REF: CH106-R - CLATTERBRIDGE pg 1 of 9 FEB 18 - KB...
-
Page 2: Parts Required
ROPE ASSEMBLY [X2] R3 [X3] M12 X 200 BOLT [X8] [X39] M12 NYLOCS [X24] POLYFIX HALVES INC SCEWS COVERED END R-60 [X24] M10 X 40 SOCKET NUT [X6] REF: CH106-R - CLATTERBRIDGE pg 2 of 9 FEB 18 - KB... -
Page 3: Tools Required
PARTS REQUIRED TOOLS REQUIRED REF: CH106-R - CLATTERBRIDGE pg 3 of 9 FEB 18 - KB... - Page 4 FOUNDATION DETAIL 2460 REF: CH106-R - CLATTERBRIDGE pg 4 of 9 FEB 18 - KB...
-
Page 5: Installation Instructions
INSTALL R-106A TIMBERS INTO THE GROUND ENSURE THE TWO HOLES ON THE SAME SIDE ARE FACING FIX R-106B TO R-106A - ON THE OUTSIDE USING M12X200 BOLTS, NYLOCS AND END CAPS REF: CH106-R - CLATTERBRIDGE pg 5 of 9 FEB 18 - KB... - Page 6 INSTALLATION INSTRUCTIONS INSTALL R-106C BETWEEN R-106A USING M12X200 BOLTS, NYLOCS AND ROUNDED END CAPS ATTACH 3X R3 ROPES TO R-106C TIMBERS USING M10X40 SOCKET NUTS REF: CH106-R - CLATTERBRIDGE pg 6 of 9 FEB 18 - KB...
- Page 7 USING M12 NYLOCS AND ROUNDED END CAPS CONNECT ROPE ASSEMBLIES AND R-106D TO R3 ROPES AND R-106A USING M12 NYLOCS, ROUNDED END CAPS AND POLYFIX HALVES INC. SCREWS REF: CH106-R - CLATTERBRIDGE pg 7 of 9 FEB 18 - KB...
- Page 8 INSTALLATION INSTRUCTIONS FIX R-106E TIMBERS TO R3 ROPES USING POLYFIX HALVES INC. SCREWS MEASUREMENTS FROM WIDEST POINT OF TIMBER MEASUREMENTS FROM PLANED EDGE REF: CH106-R - CLATTERBRIDGE pg 8 of 9 FEB 18 - KB...
-
Page 9: Additional Measurements
ADDITIONAL MEASUREMENTS 2710 2335 1450 REF: CH106-R - CLATTERBRIDGE pg 9 of 9 FEB 18 - KB...
