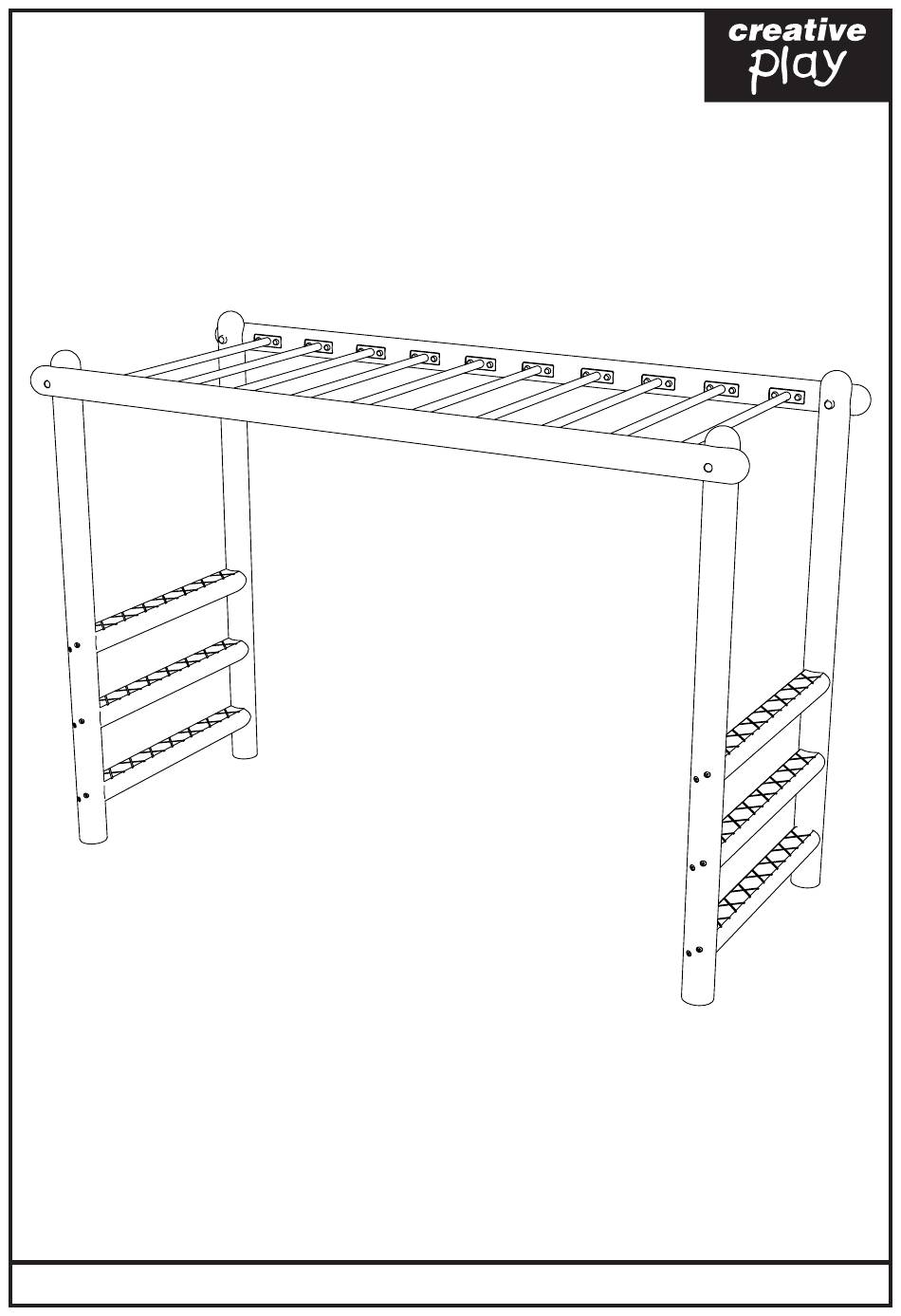

- Page 1 CH120-R - OVERHEAD LADDER Installation Instructions REF: CH120-R - OVERHEAD LADDER pg 1 of 6 JUNE 18 - KB...
-
Page 2: Parts Required
M12 X 200 BOLTS [X4] M8 X 80 SCREWS [X40] M8 X 180 SCREWS [X24] COVERED END R-60 [X12] M12 NYLOCS [X12] TOOLS REQUIRED COVERED END R-60 [X40] REF: CH120-R - OVERHEAD LADDER pg 2 of 6 JUNE 18 - KB... - Page 3 FOUNDATION DETAIL 3000 REF: CH120-R - OVERHEAD LADDER pg 3 of 6 JUNE 18 - KB...
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALL R-120A TIMBERS INTO THE GROUND ENSURE COUNTERSINKS ARE FACING OUTWARDS FIX R-120B TO R-120A - ON THE OUTSIDE USING M12X200 BOLTS, NYLOCS AND END CAPS REF: CH120-R - OVERHEAD LADDER pg 4 of 6 JUNE 18 - KB... - Page 5 INSTALLATION INSTRUCTIONS INSTALL R-120C BETWEEN R-120A USING M8X180 SCREWS ATTACH STANDARD BARS TO R-120B TIMBERS USING M8X80 SCREWS REF: CH120-R - OVERHEAD LADDER pg 5 of 6 JUNE 18 - KB...
-
Page 6: Additional Measurements
ADDITIONAL MEASUREMENTS 3250 1451 1325 REF: CH120-R - OVERHEAD LADDER pg 6 of 6 JUNE 18 - KB...
