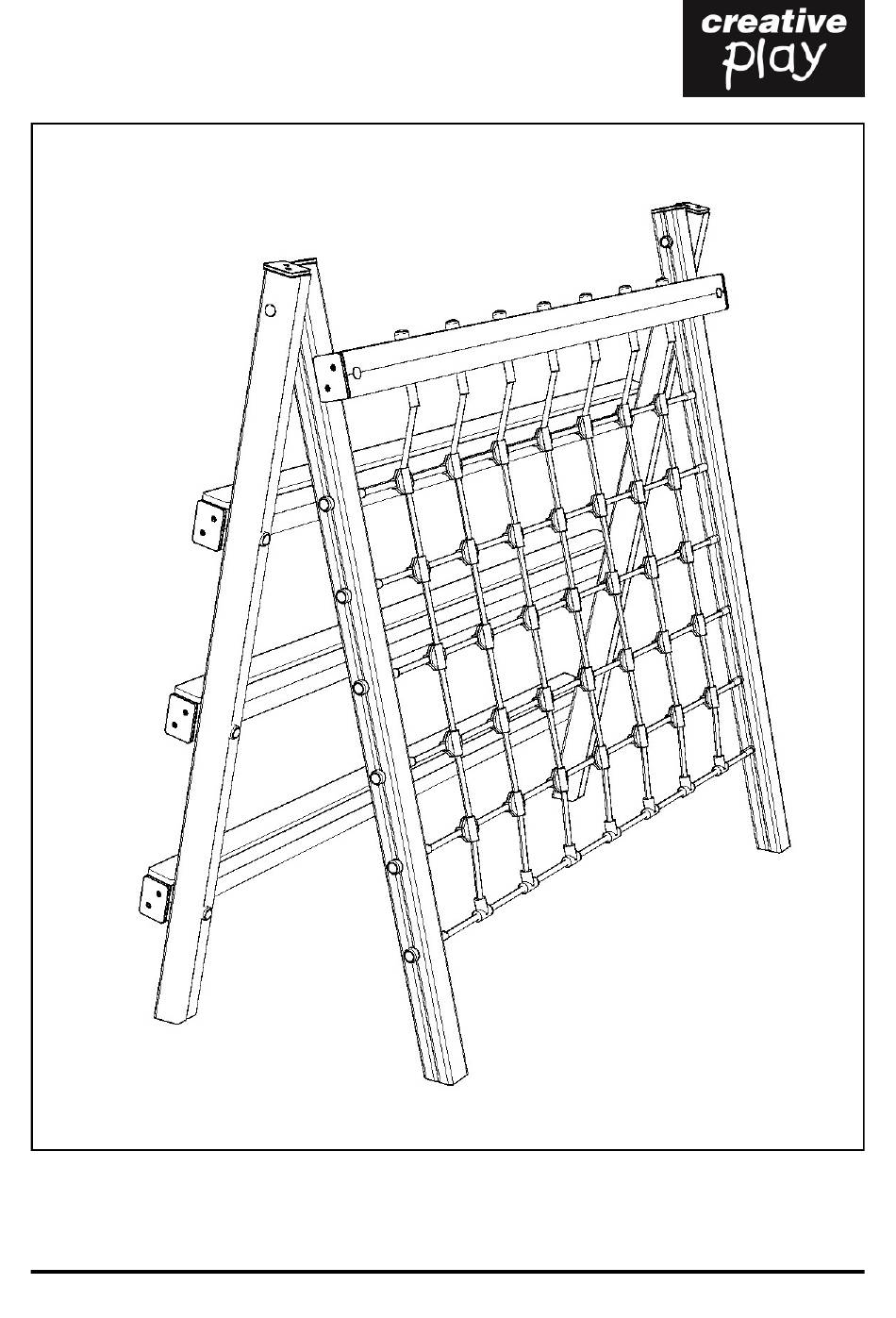

- Page 1 SCRAMBLE NET Installation Instructions REF: CH107 - SCRAMBLE NET pg 1 of 9...
-
Page 2: Parts Required
Parts required QTY x 1 QTY x 2 QTY x 2 (120mm x 90mm) (120mm x 90mm) (120mm x 90mm) (PRE-ASSEMBLED STEP SECTION) (PRE-ASSEMBLED ROPE) pg 2 of 9 REF: CH107 - CRAMBLE NET... - Page 3 Parts required (M12 NYLOC) (end caps) (M12 x 200 square cup hex bolt) pg 3 of 9 REF: CH107 - CRAMBLE NET...
-
Page 4: Foundation Details
Foundation details NET SIDE GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE pg 4 of 9 REF: CH107 - CRAMBLE NET... -
Page 5: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 5 of 9 REF: CH107 - CRAMBLE NET... - Page 6 Assembly instructions Attach the Timber (SN1) to the Timbers (SN2) TOP Using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS ENSURE: Attach JUST the BOTTOM PIECE Attach the Timber (SN4) to the Timbers (SN3) Using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS ENSURE: Attach JUST the BOTTOM PIECE pg 6 of 9...
- Page 7 Assembly instructions Attach STEP 1 and 2 Using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS FIG.1 REPEAT 1 and 2 WITH THE REST OF TIMBERS Using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS Holes CIRCLED... TIMBERS TO INSTALL pg 7 of 9 REF: CH107 - CRAMBLE NET...
- Page 8 Assembly instructions Attach the ROPE Using NYLOCS / END CAPS ENSURE: REPEAT IN ALL SIDES pg 8 of 9 REF: CH107 - CRAMBLE NET...
-
Page 9: Additional Dimensions
Additional dimensions pg 9 of 9 REF: CH107 - CRAMBLE NET...
