Summary of Contents for Creative Play ZIG ZAG BEAM

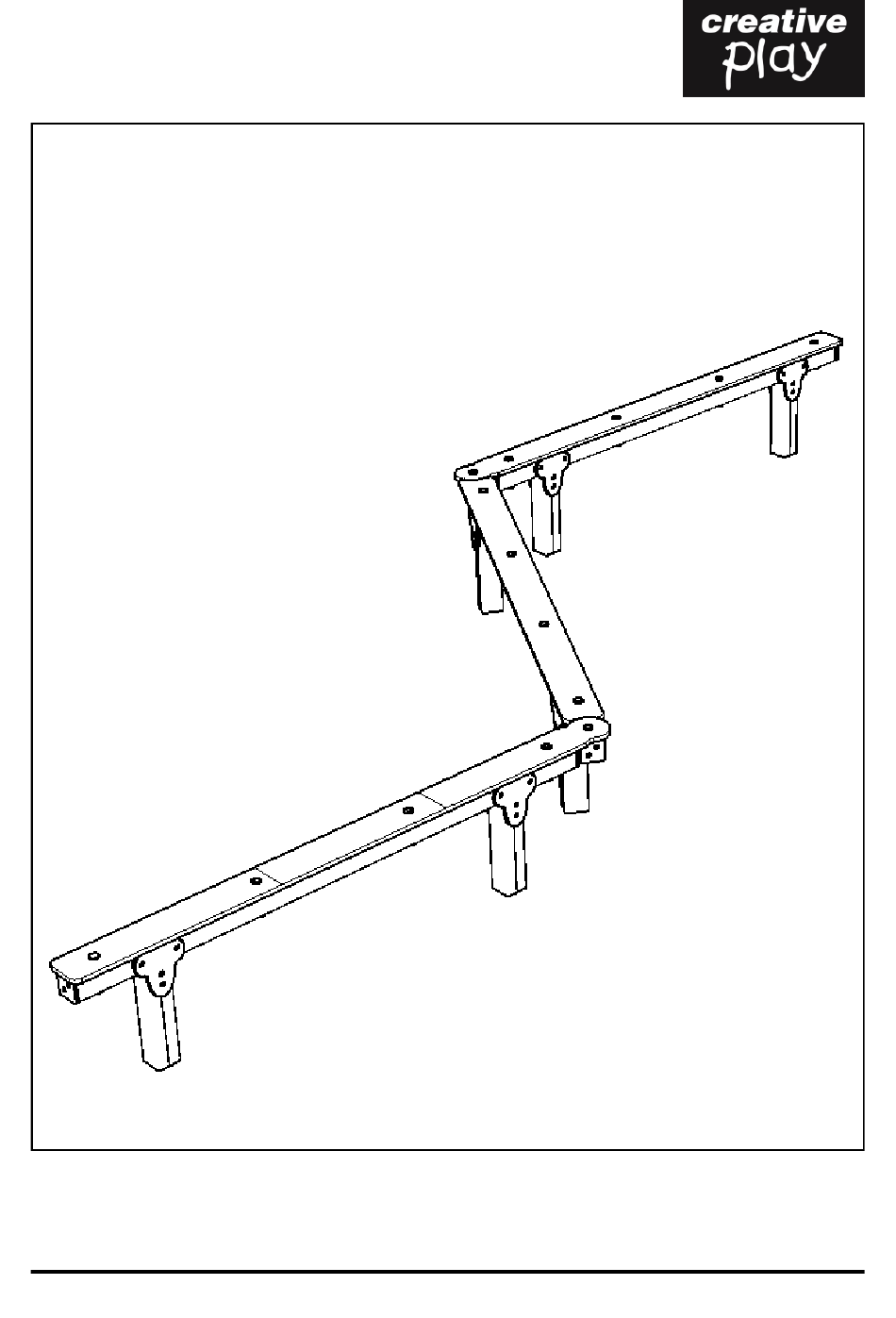

- Page 1 ZIG ZAG BEAM Installation Instructions REF: CH112 - ZIG ZAG BEAM pg 1 of 8...
-
Page 2: Parts Required
Parts required (M12 x 120 square cup hex bolt) (FM80 ‘BRASS SCREW’) (M12 NYLOC) QTY x 6 (end caps) (90mm x 90mm) pg 2 of 8 REF: CH112 - ZIG ZAG BEAM... -
Page 3: Top View
Foundation details 120º TOP VIEW FIG.1 NOTES: DRAWING OF 1 BENCH – DO the same in EACH GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE pg 3 of 8 REF: CH112 - ZIG ZAG BEAM... - Page 4 Foundation details 90º TOP VIEW FIG.2 NOTES: DRAWING OF 1 BENCH – DO the same in EACH GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE pg 4 of 8 REF: CH112 - ZIG ZAG BEAM...
-
Page 5: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA NOTES: 120º SURFACING NOTES: 90º SURFACING pg 5 of 8 REF: CH112 - ZIG ZAG BEAM... - Page 6 Attach the preassembled BEAM to the Timbers (ZZ2) Using FM80 BRASS CREWS—ATTACH BEFORE LAYING CONCRETE FOUNDATIONS NOTES: Do THAT for ALL 3 BEAMS LAY CONCRETE FOUNDATIONS ENSURE: LAY CENTER BEAM BEFORE LEFT /RIGHT pg 6 of 8 REF: CH112 - ZIG ZAG BEAM...
- Page 7 Assembly instructions Attach the LEFT/RIGHT BEAMS Using M12 120 cup square hex bolts / NYLOCS / END CAPS pg 7 of 8 REF: CH112 - ZIG ZAG BEAM...
-
Page 8: Additional Dimensions
Additional dimensions NOTES: 120º SURFACING NOTES: 90º SURFACING pg 8 of 8 REF: CH112 - ZIG ZAG BEAM...
