Summary of Contents for Creative Play CH122

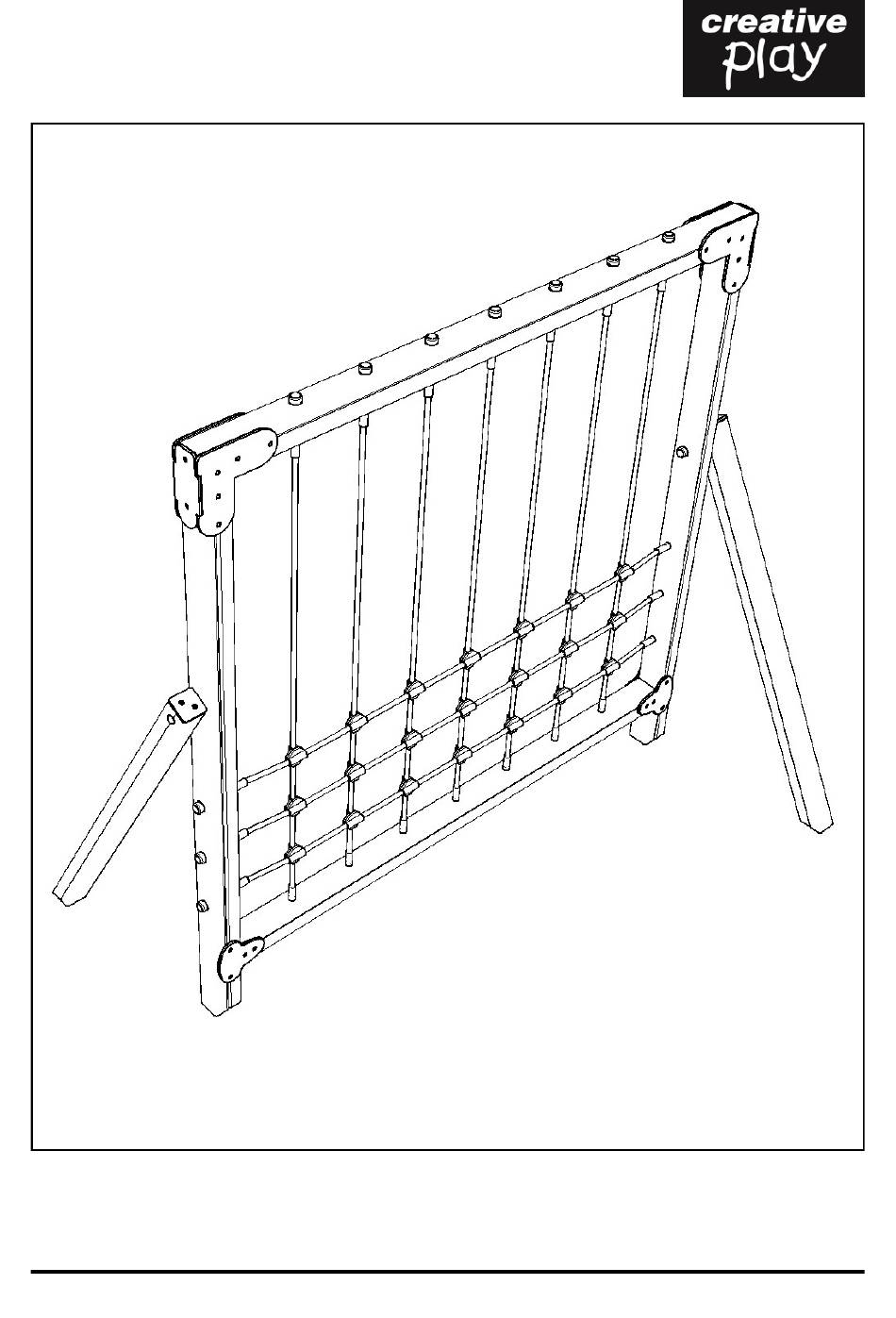

- Page 1 JUNIOR CLIMBING NET Installation Instructions REF: CH122 - JUNIOR CLIMBING NET pg 1 of 10...
-
Page 2: Parts Required
Parts required (PRE-ASSEMBLED TOP SECTION) (PRE-ASSEMBLED BOTTOM SECTION) QTY x 2 JCN4 (90mm x 90mm) QTY x 2 JCN3 (120mm x 90mm) (PRE-ASSEMBLED ROPE) pg 2 of 10 REF: CH122 - JUNIOR CLIMBING NET... - Page 3 Parts required (M12 x 220 square cup hex bolt) (FM80 ‘BRASS SCREW’) (M12 NYLOC) (end caps) pg 3 of 10 REF: CH122 - JUNIOR CLIMBING NET...
-
Page 4: Foundation Details
Foundation details GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE pg 4 of 10 REF: CH122 - JUNIOR CLIMBING NET... -
Page 5: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 5 of 10 REF: CH122 - JUNIOR CLIMBING NET... - Page 6 Assembly instructions Attach the Timber (JCN4) to the Timber (JCN3) Using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS Install the timbers (JCN4 and JCN3) FIG.1 GROUND LEVEL pg 6 of 10 REF: CH122 - JUNIOR CLIMBING NET...
- Page 7 Assembly instructions Position the Timber (JCN2) Holes CIRCLED... The holes circled get screwed AFTER Attach the TOP PIECE to the Timber (JNC3) Using BRASS SCREWS pg 7 of 10 REF: CH122 - JUNIOR CLIMBING NET...
- Page 8 Assembly instructions Attach the ROPE Using NYLOCS / END CAPS FIG.1 FIG.2 NOTES: BOTH SIDES FIG.3 pg 8 of 10 REF: CH122 - JUNIOR CLIMBING NET...
- Page 9 Assembly instructions Attach the BOTTOM PIECE to the Timber (JNC3) Using BRASS SCREWS pg 9 of 10 REF: CH122 - JUNIOR CLIMBING NET...
-
Page 10: Additional Dimensions
Additional dimensions pg 10 of 10 REF: CH122 - JUNIOR CLIMBING NET...
