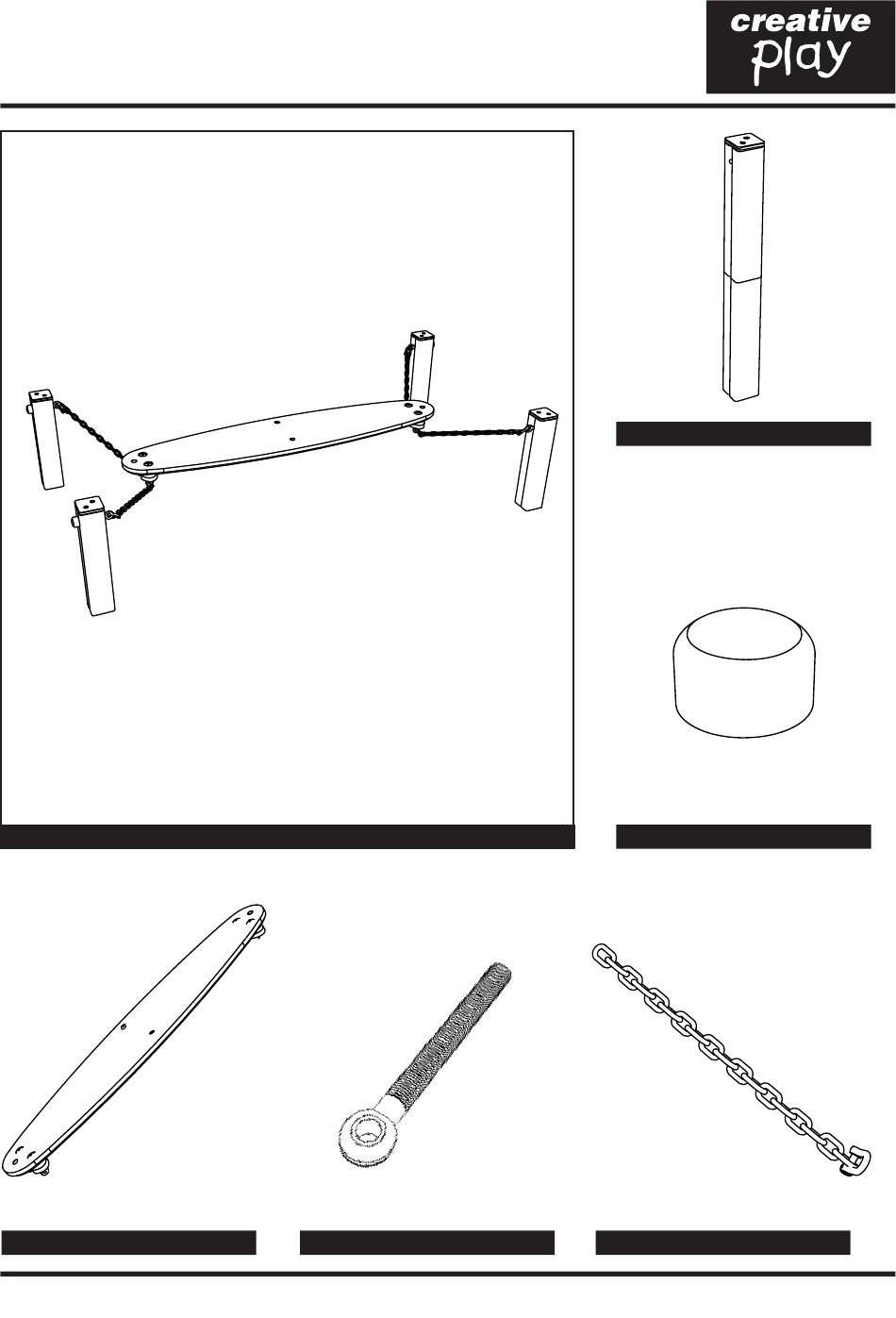

- Page 1 CH105 - MOVING BEAM Installation Instructions MB1 (CAPPED) 90MM X 90MM CH105 - MOVING BEAM END CAPS PRE-ASSEMBLED BEAM EYEBOLT X130mm CHAIN X 530MM (18 LINKS) REF: CH105 - MOVING BEAM pg 1 of 7 27.09.2023 REV-1...
- Page 2 PARTS REQUIRED CONSISTS OF SHACKLE / BOLT / NYLOC / CAP NYLOC (M12) 349.742.D-SHACKLE ‘SET’ (inc 4 spares) REF: CH105 - MOVING BEAM pg 2 of 7 27.09.2023 REV-1...
- Page 3 FOUNDATION DETAILS SOIL POST CONCRETE 1975 REF: CH105 - MOVING BEAM pg 3 of 7 27.09.2023 REV-1...
- Page 4 SURFACING DETAILS REF: CH105 - MOVING BEAM pg 4 of 7 27.09.2023 REV-1...
- Page 5 USING - MB1 X4 ENSURE HOLES ARE FACING CORRECTLY ATTATCH EYEBOLT X130mm TO THE TIMBER USING EYBOLT X130MM X4 / NYLOC X4 / ENDCAPS X4 REPEAT FOR REMAINING POSTS REF: CH105 - MOVING BEAM pg 5 of 7 27.09.2023 REV-1...
- Page 6 ATTATCH THE CHAIN TO THE EYBOLT USING THE D-SHACKLE USING CHAIN X4 / D-SHACKLE X4 ATTATCH THE CHAIN TO THE MOVING BEAM USING CHAIN X4 / D-SHACKLE X4 / M12 SOCKET X4 REF: CH105 - MOVING BEAM pg 6 of 7 27.09.2023 REV-1...
- Page 7 ADDITIONAL DIMENSIONS 2065 1500 1100 ENSURE DISTANCE BETWEEN FLOOR AND BEAM MINIMUM OF 200mm. REF: CH105 - MOVING BEAM pg 7 of 7 27.09.2023 REV-1...
