Summary of Contents for Creative Play CH120

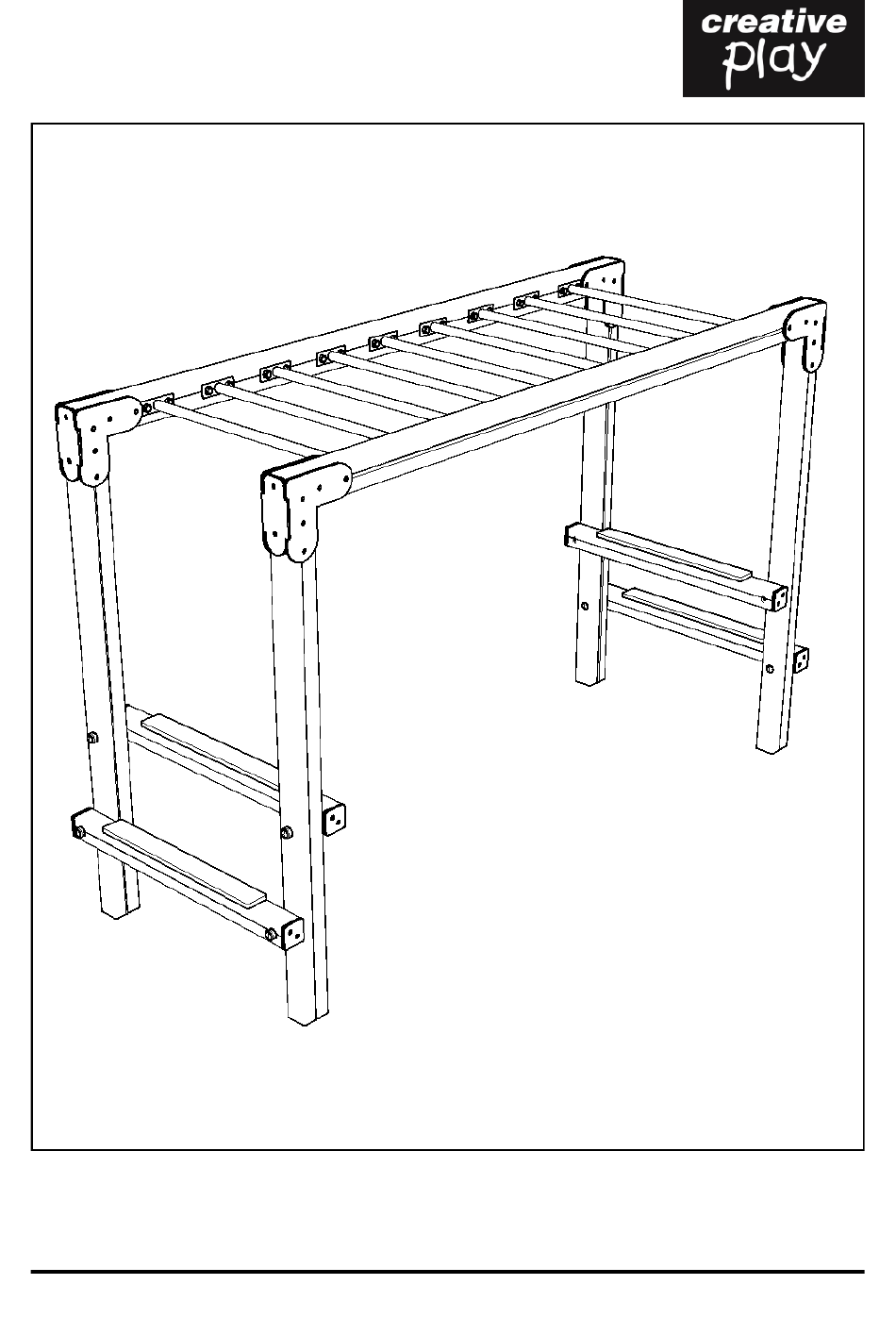

- Page 1 OVERHEAD LADDER Installation Instructions REF: CH120 - OVEHEAD LADDER pg 1 of 8...
-
Page 2: Parts Required
(FM80 ‘BRASS SCREW’) (PRE-ASSEMBLED STEP SECTION) (M12 x 220 square cup hex bolt) (960 STANDARD BAR) (end caps) QTY x 4 (M12 NYLOC) (BLUE end caps) (120mm x 90mm) SMALLER CAPS pg 2 of 8 REF: CH120 - OVERHEAD LADDER... -
Page 3: Foundation Details
Foundation details GROUND LEVEL GROUND TIMBER SUPPORT POST CONCRETE pg 3 of 8 REF: CH120 - OVERHEAD LADDER... -
Page 4: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 4 of 8 REF: CH120 - OVERHEAD LADDER... - Page 5 Assembly instructions Install the timbers (OH2) ENSURE: The holes are facing the correct direction Attach the pre-assembled STEP SECTION using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS NOTES: BOTH SIDES pg 5 of 8 REF: CH120 - OVERHEAD LADDER...
- Page 6 Assembly instructions Attach the pre-assembled TOP SECTION Using FM80 BRASS CREWS NOTES: BOTH SIDES Attach the BARS to the TOP SECTION Using FM80 BRASS SCREWS/ END BLUE CAPS pg 6 of 8 REF: CH120 - OVERHEAD LADDER...
- Page 7 The first BAR at either end sit AGAINST the PLAYTEC L as shown above Attach the remaining BARS to the TOP SECTION Using FM80 BRASS SCREWS/ END BLUE CAPS NOTE: Distance between plates 137 pg 7 of 8 REF: CH120 - OVERHEAD LADDER...
-
Page 8: Additional Dimensions
Additional dimensions pg 8 of 8 REF: CH120 - OVERHEAD LADDER...
