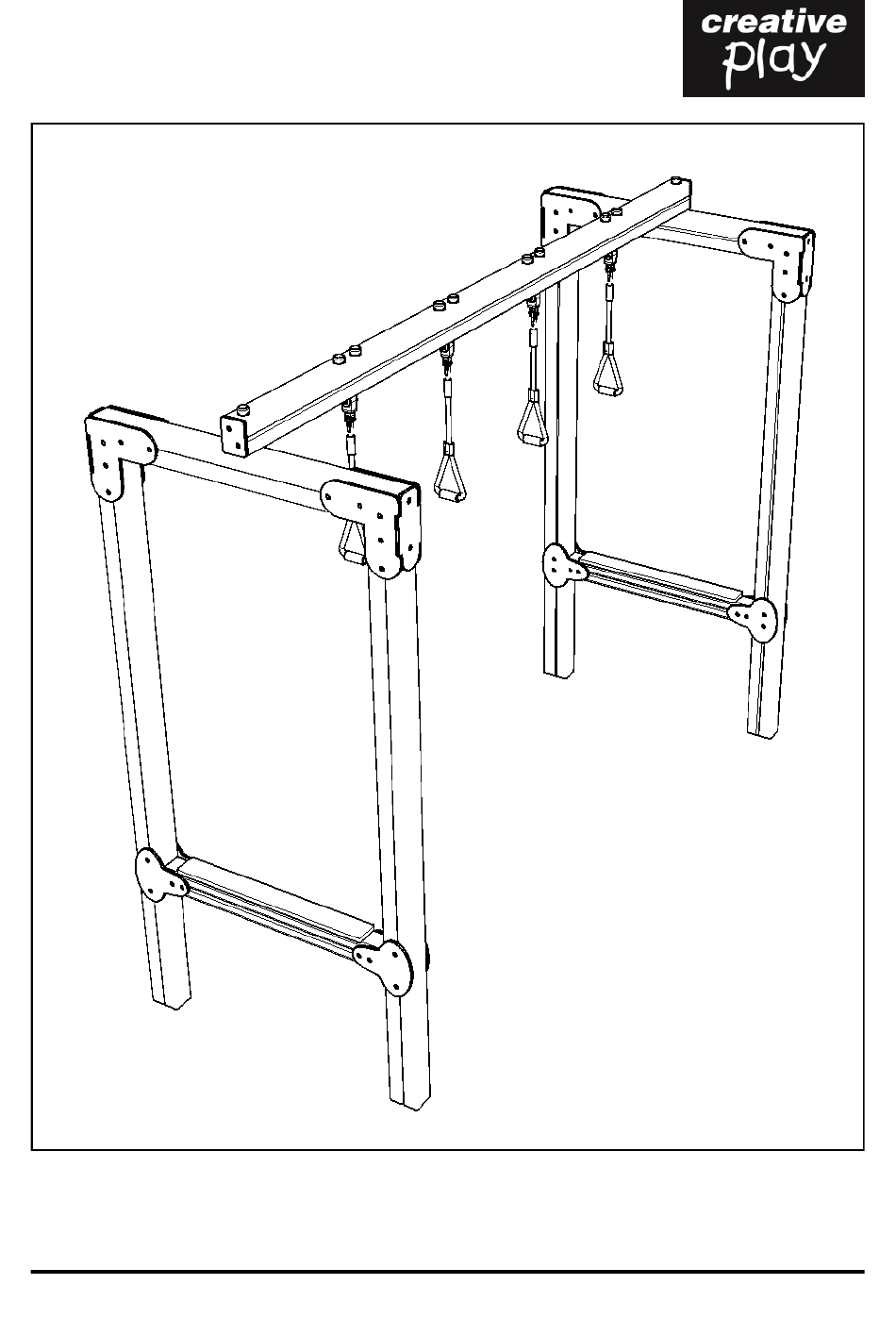

- Page 1 SWINGING GRIPS Installation Instructions REF: CH109 - SWINGING GRIPS pg 1 of 9...
-
Page 2: Parts Required
Parts required (PRE-ASSEMBLED TOP SECTION) (PRE-ASSEMBLED STEP SECTION) (GRIPS) (PRE-ASSEMBLED TOP SIDE SECTION) (M12 x 260 QTY x 4 (FM80 ‘BRASS SCREW’) square cup hex bolt) (120mm x 90mm) (end caps) (M12 NYLOC) (QUICKLINK ) pg 2 of 9 REF: CH109 - SWING GRIPS... -
Page 3: Tools Required
TOOLS required pg 3 of 9 REF: CH109 - SWING GRIPS... -
Page 4: Foundation Details
Foundation details SOIL TIMBER SUPPORT POST CONCRETE pg 4 of 9 REF: CH109 - SWING GRIPS... -
Page 5: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 5 of 9 REF: CH109 - SWING GRIPS... - Page 6 Assembly instructions Install the timbers (SW1) ENSURE: The faces are in the correct direction Attach the PRE-ASSEMBLED STEP SECTIONS Using FM80 BRASS SCREWS pg 6 of 9 REF: CH109 - SWING GRIPS...
- Page 7 Assembly instructions Attach the PRE-ASSEMBLED TOP SECTIONS Using FM80 BRASS CREWS NOTES: BOTH SIDES Attach the TOP SECTION to the TOP SIDE SECTIONS using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS pg 7 of 9 REF: CH109 - SWING GRIPS...
- Page 8 Assembly instructions Attach the TYRE - ROPE to the TOP PIECE Use LOCK TIGHT to ensure the quick link remains CLOSED ENSURE: COVER THE ENDS WITH BLACK CAPS pg 8 of 9 REF: CH109 - SWING GRIPS...
-
Page 9: Additional Dimensions
Additional dimensions pg 9 of 9 REF: CH109 - SWING GRIPS...
