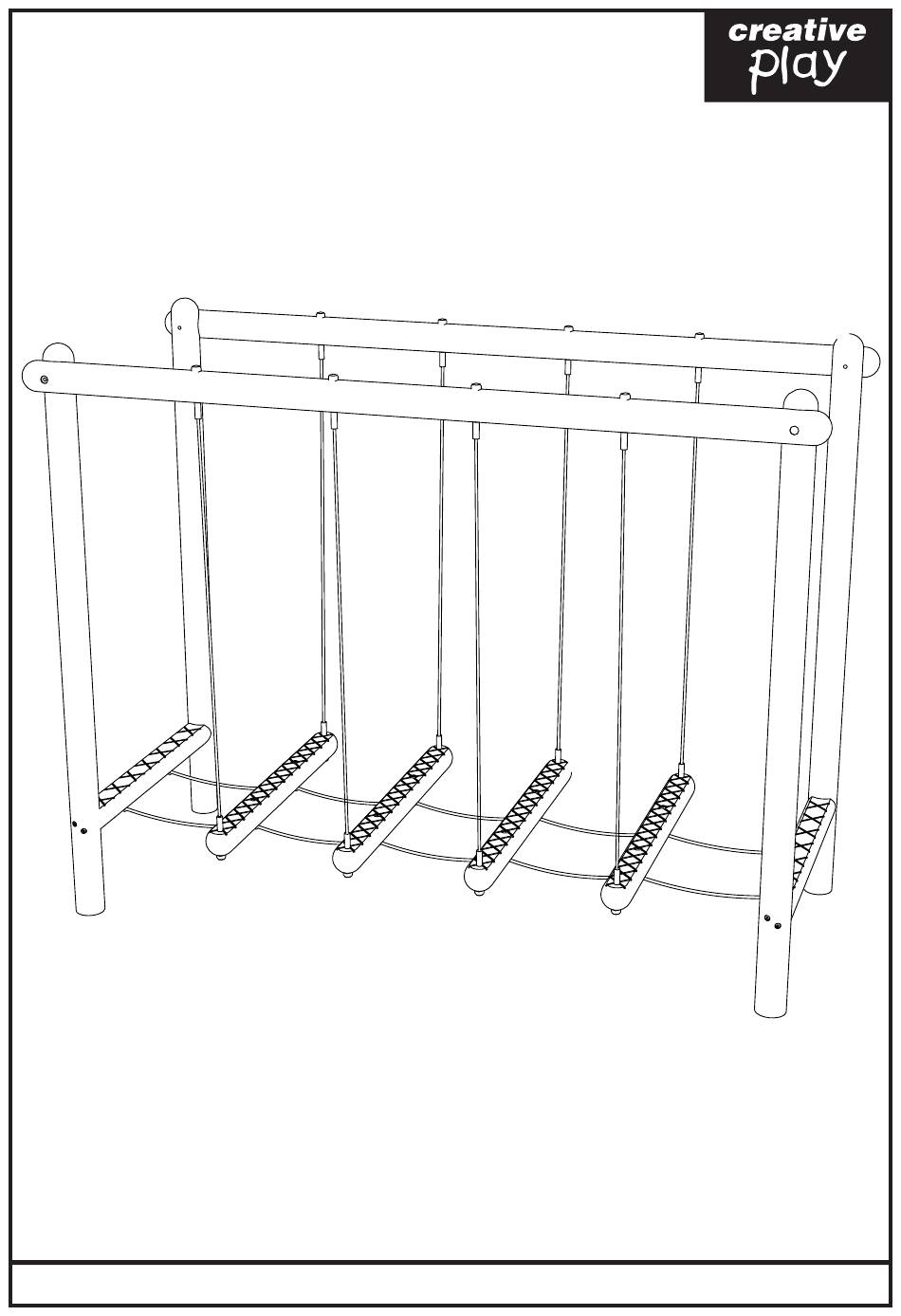

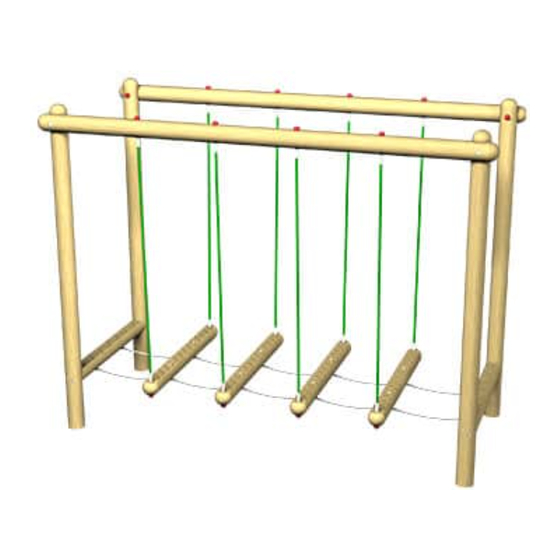

- Page 1 CH114-R - LOG WALK Installation Instructions REF: CH114-R - LOG WALK pg 1 of 8 FEB 18 - KB...
-
Page 2: Parts Required
M12 X 200 BOLTS [X4] M12 X 100 EYEBOLT [X12] M8 X 180 SCREWS [X8] 580MM CHAIN [X6] 650MM CHAIN [X4] M8 D-SHACKLE [X12] COVERED END R-60 [X12] REF: CH114-R - LOG WALK pg 2 of 8 FEB 18 - KB... -
Page 3: Tools Required
PARTS REQUIRED M12 X 50 SOCKET NUT [X12] M12 NYLOCS [X12] TOOLS REQUIRED REF: CH114-R - LOG WALK pg 3 of 8 FEB 18 - KB... - Page 4 FOUNDATION DETAIL 3000 REF: CH114-R - LOG WALK pg 4 of 8 FEB 18 - KB...
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALL R-114A TIMBERS INTO THE GROUND ENSURE COUNTERSINKS ARE FACING OUTWARDS FIX R-114B TO R-114A - ON THE OUTSIDE USING M12X200 BOLTS, NYLOCS AND END CAPS REF: CH114-R - LOG WALK pg 5 of 8 FEB 18 - KB... - Page 6 INSTALLATION INSTRUCTIONS INSTALL R-114C BETWEEN R-114A USING M8X180 SCREWS ATTACH LOG WALK ASSEMBLIES TO R-114B TIMBERS USING M12 NYLOCS AND ROUNDED END CAPS REF: CH114-R - LOG WALK pg 6 of 8 FEB 18 - KB...
- Page 7 INSTALLATION INSTRUCTIONS CONNECT LOG WALK ASSEMBLIES AND FRAMEWORK TOGETHER USING 580MM AND 640MM CHAIN LENGTHS, M12X100 EYEBOLTS, D-SHACKLES & M12X50 SOCKET NUT 640MM 580MM 580MM 640MM 580MM REF: CH114-R - LOG WALK pg 7 of 8 FEB 18 - KB...
-
Page 8: Additional Measurements
ADDITIONAL MEASUREMENTS 3250 3125 1452 1325 REF: CH114-R - LOG WALK pg 8 of 8 FEB 18 - KB...
