Ayra Vision Twins Spot User Manual page 6

3
4
2

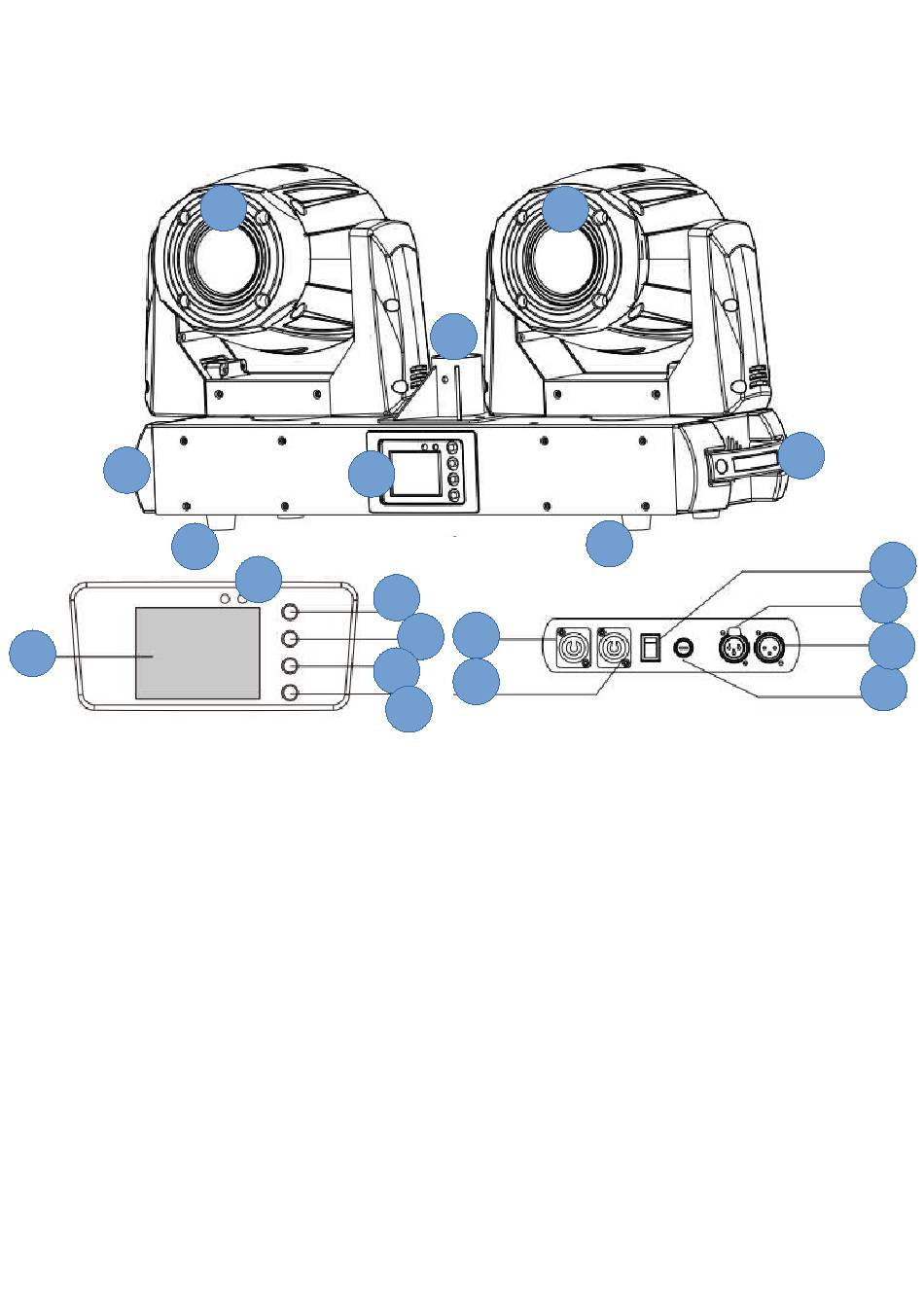

1. Moving head with light output via lens
2. Display with menu buttons
3. Handle
4. Legs for standing installation
5. 35mm stand mount adapter
6. Power output (link output) via white locking power socket
7. Power input via blue locking power socket
8. Fuse compartment for internal fuse (20mm glass, ...)
9. On/Off switch
10. 3-pin F-XLR for DMX output/link to chained fixture
11. 3-pin M-XLR for DMX input from DMX controller
12. Menu button: MENU
13. Menu button: UP
14. Menu button: DOWN
15. Menu button: ENTER
16. LED indicators
Base:
- Quick-lock suspension bracket mounting point (for suspended installation)
- Mounting eyelet for securing safety cable (for suspended installation)
A full explanation of these functions is included later in this manual, including illustrations.
The information included in this user manual is subject to change at any time and without notification:
Version: 1.1 Date & Author Initials: 22-03-2022 RV
Overview
1
2
16
12
14
1
5
6
13
7
15
Revision Date & Author Initials: -
4
3
9
8
11
10
