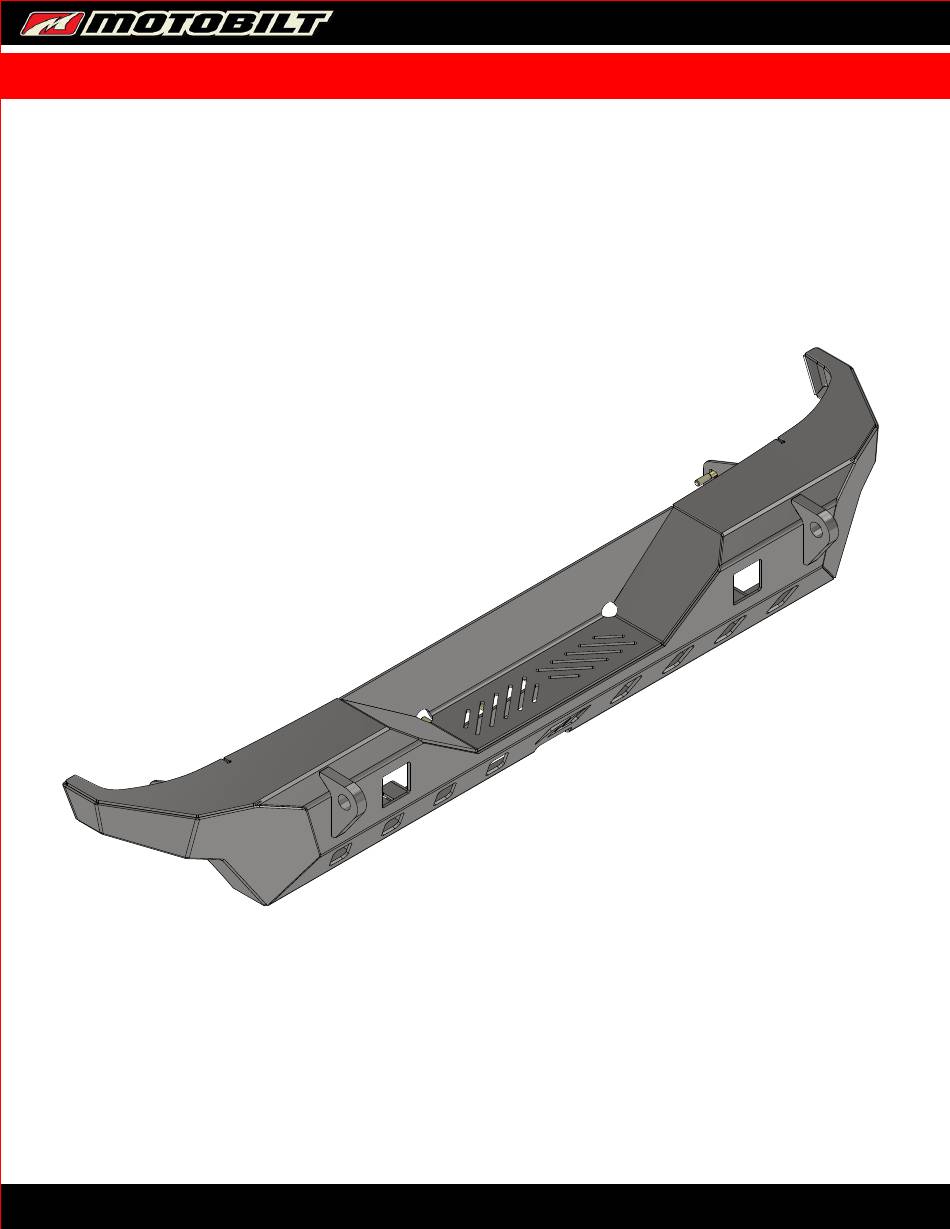

- Page 1 REV: MB1072 - Assembly Instructions Jeep JK Crusher Rear Bumper MB1072 - CRUSHER REAR BUMPER COMPATIBLE WITH JEEP JK/JKU ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB1072 - Shipping Jeep JK Crusher Rear Bumper CONTENTS MB1072-01 Qty 1 MB1072-08 Qty 2 1/2" - Flat Washer 1/2"-13 Nylon Hex Nut 1/2"-13 x 4" Hex Bolt Qty 2 Qty 2 Qty 2 motobilt.com | 334-219-2333...
- Page 3 REV: MB1072 - Assembly Instructions Jeep JK Crusher Rear Bumper motobilt.com | 334-219-2333...
- Page 4 REV: MB1072 - Assembly Instructions Jeep JK Crusher Rear Bumper REMOVE FACTORY HARDWARE AND SAVE FOR REUSE IF FACTORY HARDWARE IS REVERSED, REMOVE BOLTS AND BREAK NUTS OFF FOR REUSE motobilt.com | 334-219-2333...
- Page 5 REV: MB1072 - Assembly Instructions Jeep JK Crusher Rear Bumper Reuse Factory Hardware MB1072 motobilt.com | 334-219-2333...
- Page 6 REV: MB1072 - Assembly Instructions Jeep JK Crusher Rear Bumper 1/2"-13 x 4" Hex Bolt 1/2" - Flat Washer MB1072-08 1/2"-13 Nylon Hex Nut motobilt.com | 334-219-2333...
- Page 7 REV: MB1072 - Assembly Instructions Jeep JK Crusher Rear Bumper Reuse Factory Hardware motobilt.com | 334-219-2333...
