Summary of Contents for Ronix RA-1401

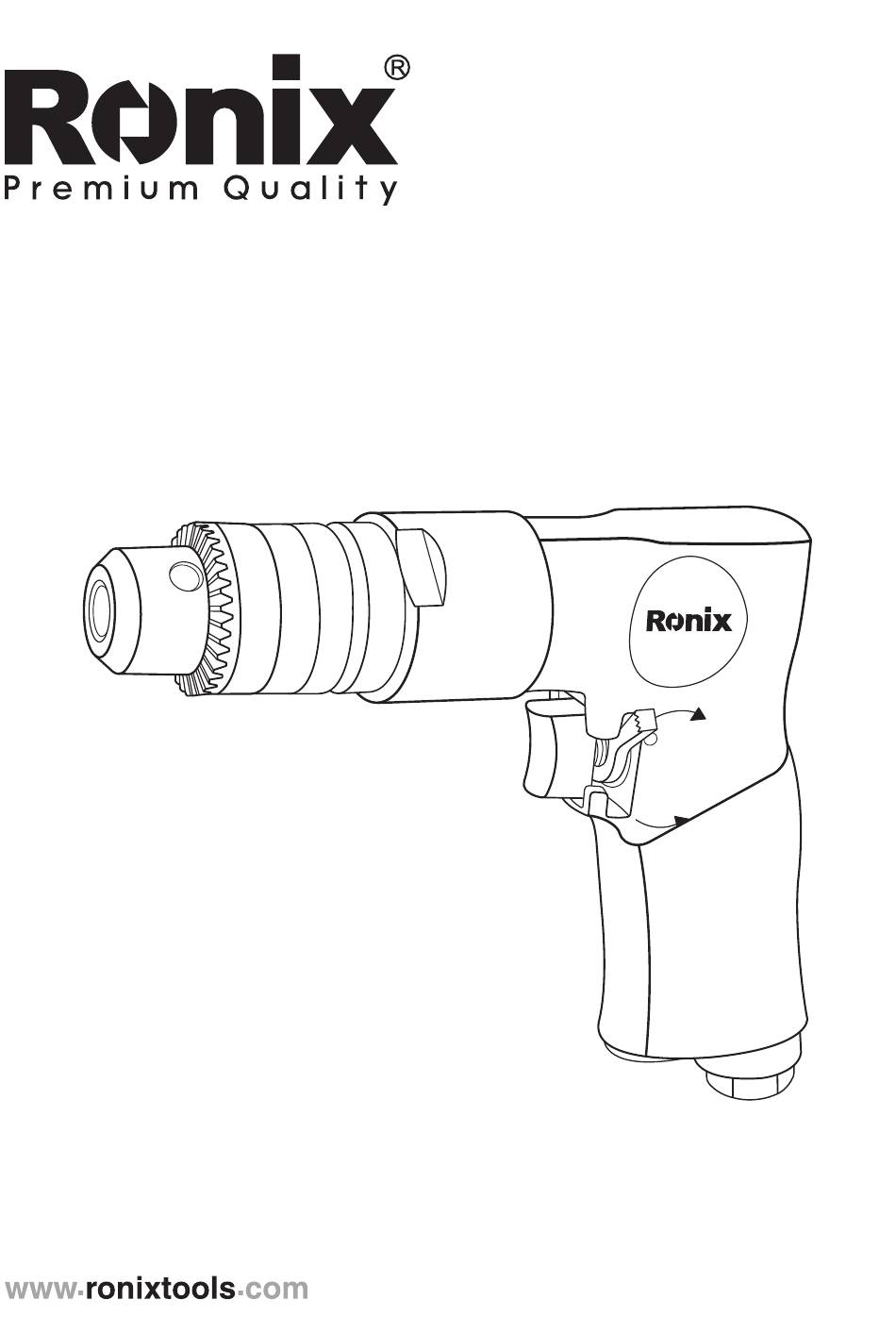

- Page 1 AIR DRILL RA-1401...
-
Page 2: Specifications
SPECIFICATIONS Model RA-1401 Head Style Keyed Chuck Chuck Size 3/8"-24UNF Chuck Capacity 1.5mm-10mm Max Torque 7.4ft.lb,10N.m Working Pressure 90Psi, 0.63MPa, 6.3 Bar No-Load Speed 1800RPM Air Inlet (NPT) 1/4'',6.35mm Air Hose (ID) 3/8",9.52mm Avg Air Consumption 3.7CFM,106L/min Length 7.08",180mm weight 1.1Kg... -
Page 3: Parts List
PARTS LIST Housing Chuck Reversing Trigger button Handle Air Inlet IMPORTANT SAFETY RULES Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: 1- Damage to lungs if an effective dust mask is not worn. -
Page 4: Air Supply
7- Always keep your air tool clean and lubricated. Daily lubrication is essential to avoid internal corrosion and possible failure. 8- Do not wear watches, rings bracelets or loose clothing when using air tools. 9- Using only light weight coil hoses from a tool to the wall or compressor coupling. - Page 5 hoses (over 8 meters). The hose diameter should be 3/8” I.D. 6- Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure. LUBRICATION An automatic in-line filter-regulator-lubricator is recommended as it increases tool life and keeps the tool in sustained operation.
- Page 6 Quick Quick Connector Connector Filter Lubricator AirTool Compressor Cut-off Valve Quick Quick Coupler Coupler Regulator Air Hose 0 - 8.5 Fig 4 LOADING AND OPERATION ENSURE YOU READ, UNDERSTAND AND APPLY SAFETY INSTRUCTIONS BEFORE USE. 1- Only use impact sockets which are specifically designed for use with an impact wrench.
-
Page 7: Maintenance
MAINTENANCE Disconnect wrench from air supply before changing accessories, servicing or performing maintenance. Replace or repair damaged parts. Use genuine parts only. Non-authorized parts may be dangerous. 1- Lubricate the air wrench daily with a few drops of air tool oil dripped into the air inlet. - Page 8 PROBLEMS POSSIBLE CAUSES REMEDIES - Lubricating clutch housing. - Check for excess clutch oil. Clutch cases need only be half full. Overfilling - Motor parts worn. can cause drag on high-speed clutch Tool runs at normal - Cam clutch worn or parts, ie.
