Ronix RA-1201 Manual

Air impact wrench
Hide thumbs Also See for RA-1201:
Table of Contents

Advertisement

Quick Links

Download this manual
AIR IMPACT WRENCH
RA-1201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA-1201 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix RA-1201

Summary of Contents for Ronix RA-1201

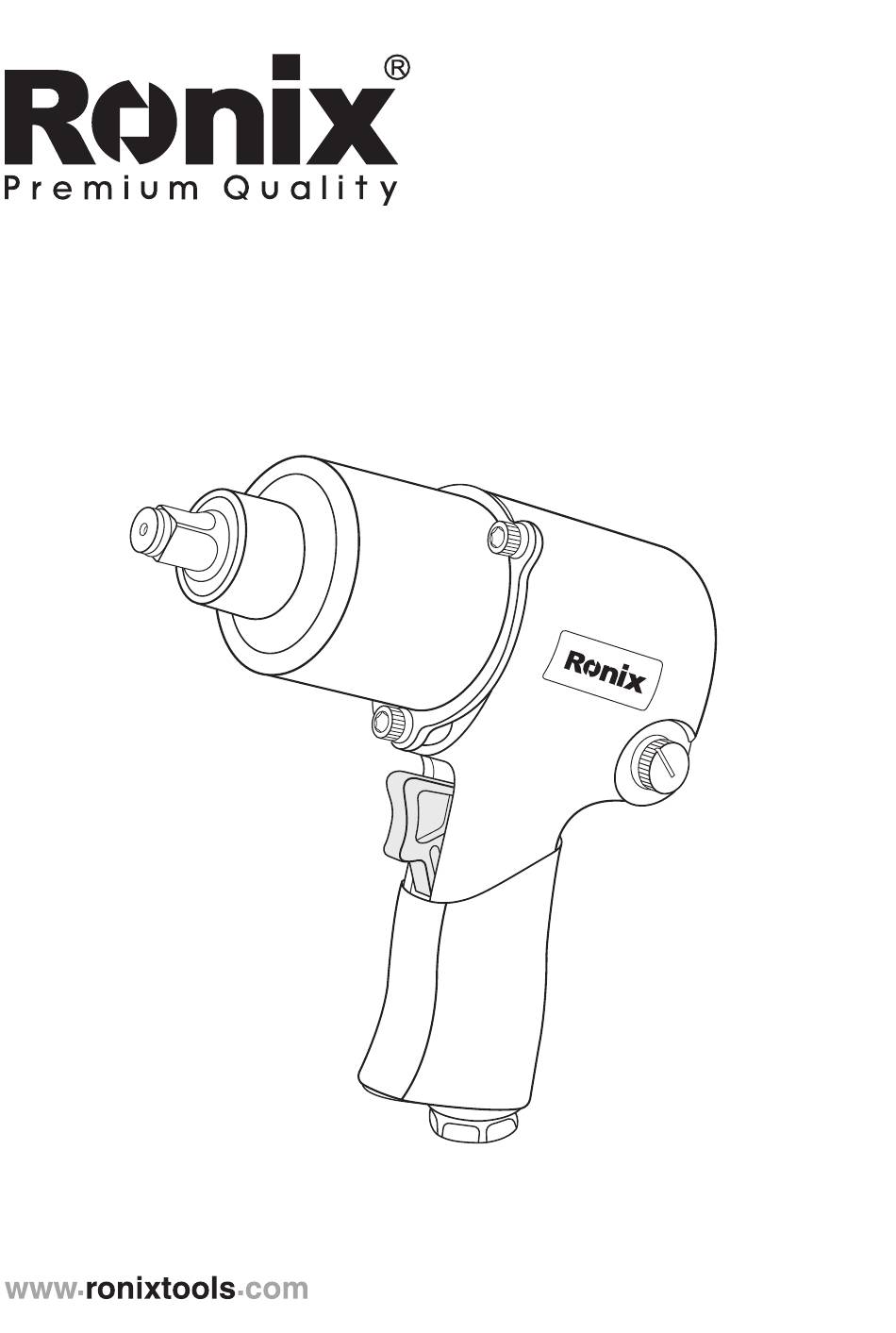

  • Page 1 AIR IMPACT WRENCH RA-1201...

  • Page 2: Specifications

    SPECIFICATIONS Model RA-1201 Head Style Fixed Square Max torque 664ft.lb,900N.m Working Pressure 90 Psi,0.63 MPa,6.3 Bar Drive anvil size 1/2'' No-load speed 7500RPM Std Bolt size 5/8'',16mm Air inlet (NPT) 1/4'',6.35mm Air hose (ID) 3/8'',9.52mm Avg air consumption 5CFM,142.5L/min Length 7.08",185mm...

  • Page 3: Parts List

    PARTS LIST Housing Anvil Trigger Direction Screw Handle Air Inlet IMPORTANT SAFETY RULES Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: 1- Damage to lungs if an effective dust mask is not worn.

  • Page 4: Air Supply

    discs, and before servicing any type of machine. 7- Always keep your air tool clean and lubricated. Daily lubrication is essential to avoid internal corrosion and possible failure. 8- Do not wear watches, rings bracelets or loose clothing when using air tools.
  • Page 5 5- Line pressure should be increased to compensate for unusually long air hoses (over 8 meters). The hose diameter should be 3/8" I.D. 6- Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure. LUBRICATION An automatic in-line filter-regulator-lubricator is recommended as it increases tool life and keeps the tool in sustained operation.
  • Page 6 male fitting in the tool housing. Quick Quick Connector Connector Filter Lubricator AirTool Compressor Cut-off Valve Quick Quick Coupler Coupler Regulator Air Hose 0 - 8.5 Fig 4 LOADING AND OPERATION ENSURE YOU READ, UNDERSTAND AND APPLY SAFETY INSTRUCTIONS BEFORE USE. 1- Only use impact sockets which are specifically designed for use with an impact wrench.

  • Page 7: Maintenance

    MAINTENANCE Disconnect wrench from air supply before changing accessories, servicing or performing maintenance. Replace or repair damaged parts. Use genuine parts only. Non-authorized parts may be dangerous. 1- Lubricate the air wrench daily with a few drops of air tool oil dripped into the air inlet.
  • Page 8 PROBLEMS POSSIBLE CAUSES REMEDIES - Lubricating clutch housing. - Check for excess clutch oil. Clutch cases need only be half full. Overfilling - Motor parts worn. can cause drag on high-speed clutch Tool runs at normal - Cam clutch worn or parts, ie.
