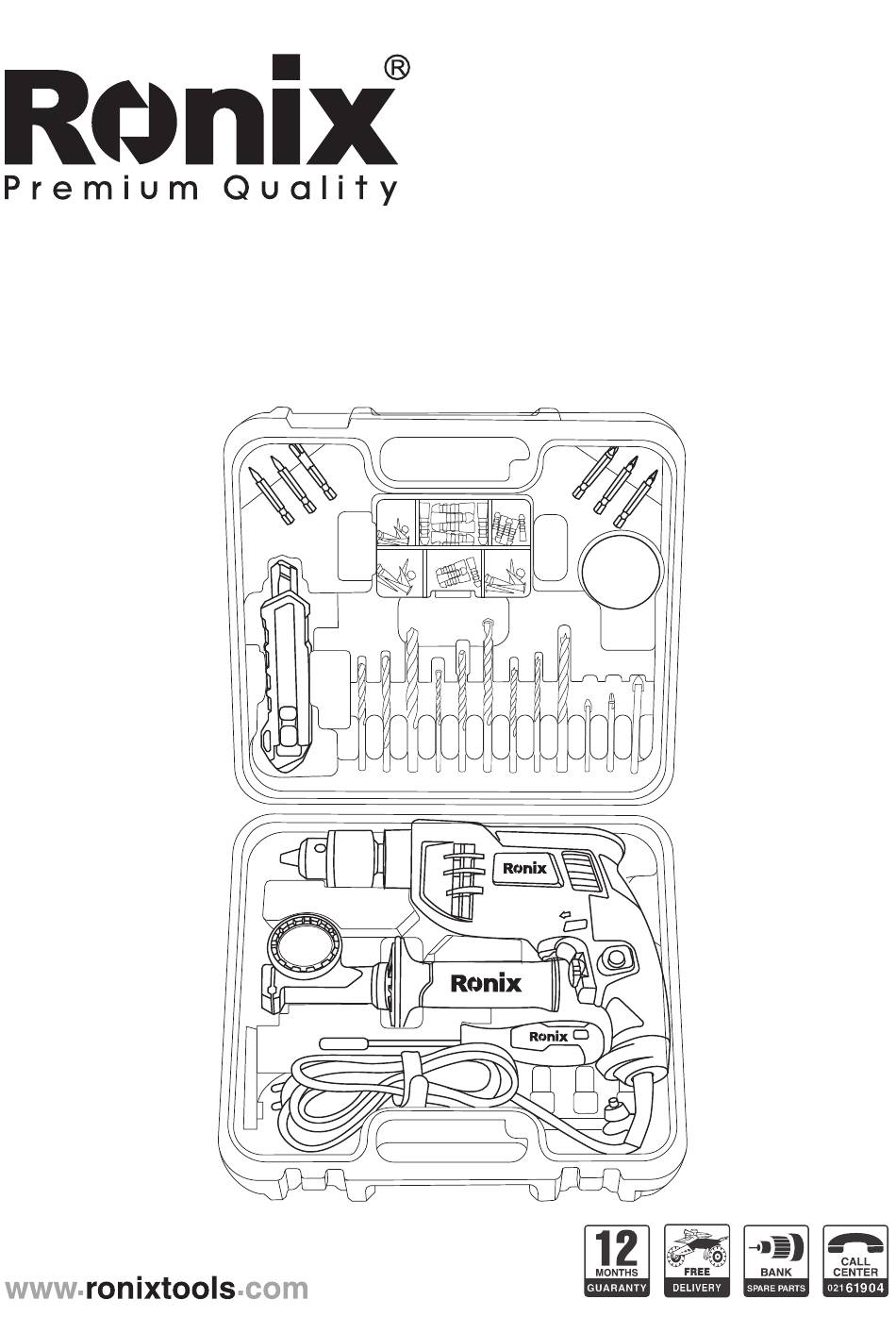

- Page 1 IMPACT DRILL KITS 33 PCS RS-0008...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Model RS-0008 Power 750w Voltage 220-240V Frequency 50-60Hz Chuck Type 13mm key chuck Weight 1.73kg Max Capacity in Concrete 13mm Body Material PA6+GF30 Cable Length No-Load Speed 0-2700RPM Max Capacity in Wood 25mm Max Capacity In Steel 13mm Net Weight 3.46kg... -
Page 3: Part List
PART LIST Knob for drilling hammer drilling Chuck Depth gauge Housing Rotation Lock-on button direction switch Speed dial Side handle Switch trigger Sheath Cable GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. -
Page 4: Work Area Safety
WORK AREA SAFETY - Keep work area clean and well lit. Cluttered or dark areas invite accidents. - Don’t operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 5 erating a power tool. Don’t use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. - Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
-
Page 6: Functional Description
starting the power tool accidentally. - Store idle power tools out of the reach of children and don’t allow persons unfamiliar with power tool or these instructions to operate the power tool. Power tools are dangerous in the hand s of untrained users. - Maintain power tools. -
Page 7: Speed Change
To start the tool, simply pull the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger and then push in the lock-on button. To stop the tool from the locked position, pull the switch trigger fully, then release it. -
Page 8: Installing Auxiliary Handle
out any work on the tool. INSTALLING AUXILIARY HANDLE Always use the auxiliary handle to ensure operating safety. Install the auxiliary handle on the tool barrel. Then tighten the handle by turning clockwise at the desired position. It may be swung 360° so as to be secured at any position. -
Page 9: Depth Gauge
the chuck by hand. After using the chuck key, be sure to return to the original position. DEPTH GAUGE 1- Depth gauge The depth gauge is convenient for drilling holes of uniform depth. Loosen the auxiliary handle and adjust the depth gauge to the desired depth. After adjusting, tighten the auxiliary handle. -
Page 10: Maintenance
DRILLING IN METAL For maximum performance, use high speed steel bits for metal or steel drilling. Selector to drill mode. To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling.
