Summary of Contents for Ronix RA-1301

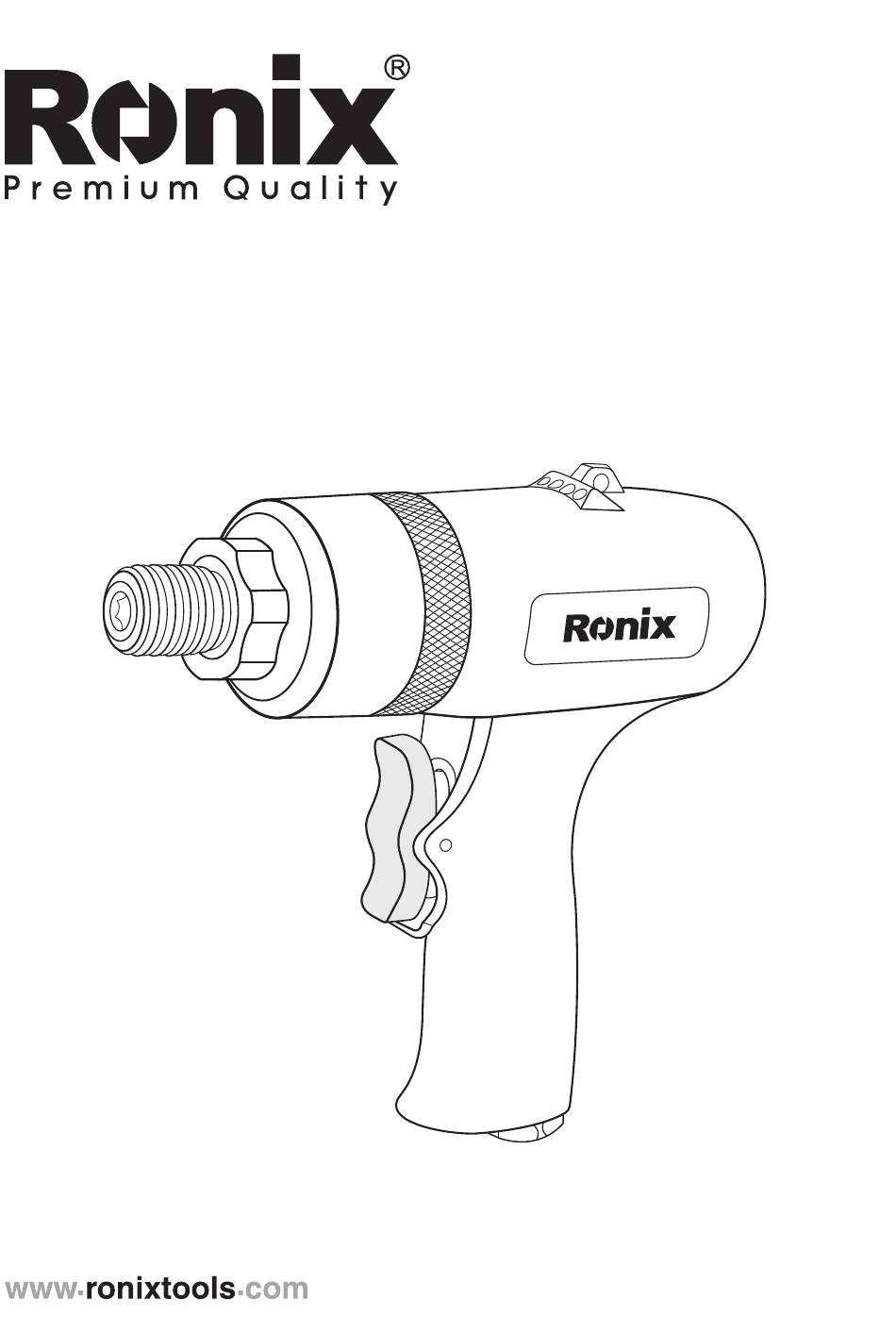

- Page 1 AIR IMPACT SCREWDRIVER RA-1301...
-
Page 2: Specifications
SPECIFICATIONS Model RA-1301 Head Style hexagon Max Torque 80ft.lb,108N.m Working Pressure 90 Psi,0.63 MPa,6.3 Bar Drive Anvil Size 1/4" ,6.35mm No-Load Speed 9000RPM Bolt Size 3-10mm Air Inlet (NPT) 1/4'',6.35mm Air Hose (ID) 3/8'',9.52mm Avg Air Consumption 4CFM,114L/min Overal Length 5.31",135mm... -
Page 3: Parts List
PARTS LIST Housing Anvil Trigger Reversing Button Handle Air Inlet IMPORTANT SAFETY RULES Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: 1- Damage to lungs if an effective dust mask is not worn. -
Page 4: Air Supply
6- Disconnect any machine from the air supply before changing blades or discs, and before servicing any type of machine. 7- Always keep your air tool clean and lubricated. Daily lubrication is essential to avoid internal corrosion and possible failure. 8- Do not wear watches, rings bracelets or loose clothing when using air tools. - Page 5 4- Clean air inlet filter weekly. 5- Line pressure should be increased to compensate for unusually long air hoses (over 8 meters). The hose diameter should be 3/8” I.D. 6- Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
- Page 6 to 6 drops of oil, depending on the work environment, directly through the male fitting in the tool housing. Quick Quick Connector Connector Filter Lubricator AirTool Compressor Cut-off Valve Quick Quick Coupler Coupler Regulator Air Hose 0 - 8.5 Fig 4 LOADING AND OPERATION ENSURE YOU READ, UNDERSTAND AND APPLY SAFETY INSTRUCTIONS BEFORE USE.
-
Page 7: Maintenance
MAINTENANCE Disconnect wrench from air supply before changing accessories, servicing or performing maintenance. Replace or repair damaged parts. Use genuine parts only. Non-authorized parts may be dangerous. 1- Lubricate the air wrench daily with a few drops of air tool oil dripped into the air inlet. - Page 8 PROBLEMS POSSIBLE CAUSES REMEDIES - Lubricating clutch housing. - Check for excess clutch oil. Clutch cases need only be half full. Overfilling - Motor parts worn. can cause drag on high-speed clutch Tool runs at normal - Cam clutch worn or parts, ie.
