Summary of Contents for Ronix 8905K

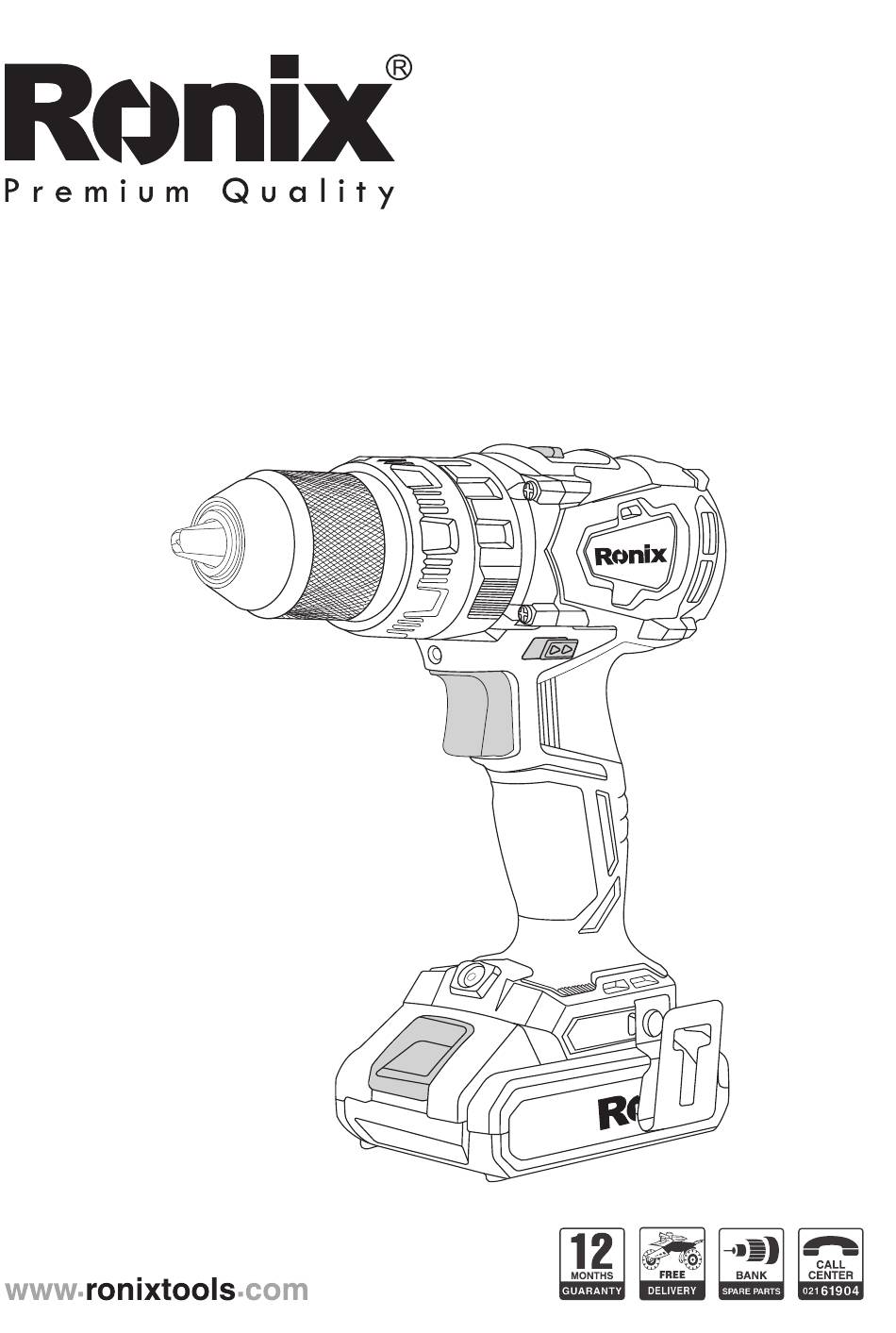

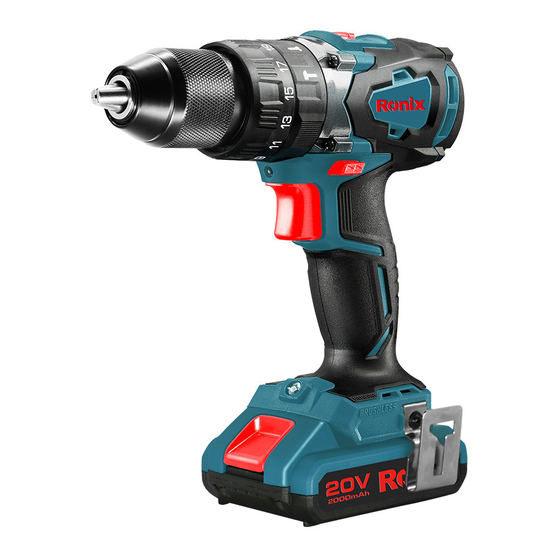

- Page 1 20V BRUSHLESS DRIVER HAMMER DRILL 8905K...
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Model 8905K Accessory No Load Speed 0-450/0-2000 rpm Battery QTY Voltage Battery capacity and 2.0Ah Impact Rate 0~30000 ipm voltage Charger Max Torque 55 N.m Torque Setting 21+3 setting Charger 13mm metal single sleeve Parameter 2.2A Chuck with lock... -
Page 4: Work Area Safety
(corded) power tool or battery-operated (cordless) power tool. WORK AREA SAFETY -Keep work area clean and well lit. Cluttered or dark areas invite accidents. -Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 5 before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. -Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 6 -Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. -Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 7 operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a «live» wire may make exposed metal parts of the power tool live and could give the operator an electric shock. -Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
-
Page 8: Tips For Maintaining Maximum Battery Life
such as nails, coins, etc. 3.Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. -Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 500 C (1220 F). -
Page 9: Reversing Switch Action
REVERSING SWITCH ACTION This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the Right side for clockwise rotation or from the Left side for counterclockwise rotation. When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled. -
Page 10: Speed Change
see that the switch trigger actuates properly and returns to the «OFF» position when released. -Always check the direction of rotation before operation. -Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool. -When not operating the tool, always set the reversing switch lever to the neutral position. -
Page 11: Adjusting The Fastening Torque
1 Speed change lever ADJUSTING THE FASTENING TORQUE The fastening torque can be adjusted in 18 steps by turning the adjusting ring so that its graduations are aligned with the pointer on the tool body. The fastening torque is minimum when the number 1 is aligned with the pointer and maximum when the marking is aligned with the pointer. -
Page 12: Installing Or Removing Driver Bit Or Drill Bit
INSTALLING OR REMOVING DRIVER BIT OR DRILL Turn the sleeve counter clockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Turn the sleeve clockwise to tighten the chuck. To remove the bit, turn the sleeve counterclockwise. Sleeve NOTE: When driving wood screws, predrill pilot holes to make driving easier... -
Page 13: Drilling Operation
OPERATION CAUTION: Always insert the battery cartridge all the way until it locks in place. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. Hold the tool firmly with one hand on the grip and the other hand on the bottom of the battery cartridge to control the twisting action. - Page 14 CAUTION: -Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged. -There is a tremendous force exerted on the tool/ bit at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the work piece.
-
Page 15: Maintenance
-Never use gasoline, benzene, thinner, alcohol or the like. Discoloration, deformation or cracks may result. NOTE: To maintain product safety and reliability repairs, any other maintenance or adjustment should be performed by Ronix Service Authorized Service Centers, always using RONIX replacement parts. USER MANUAL...
