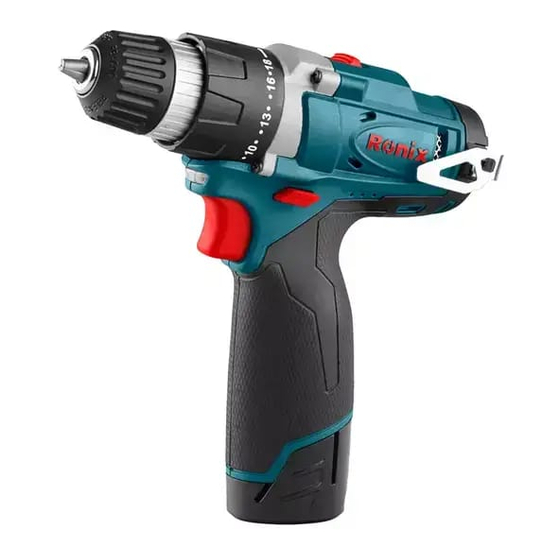

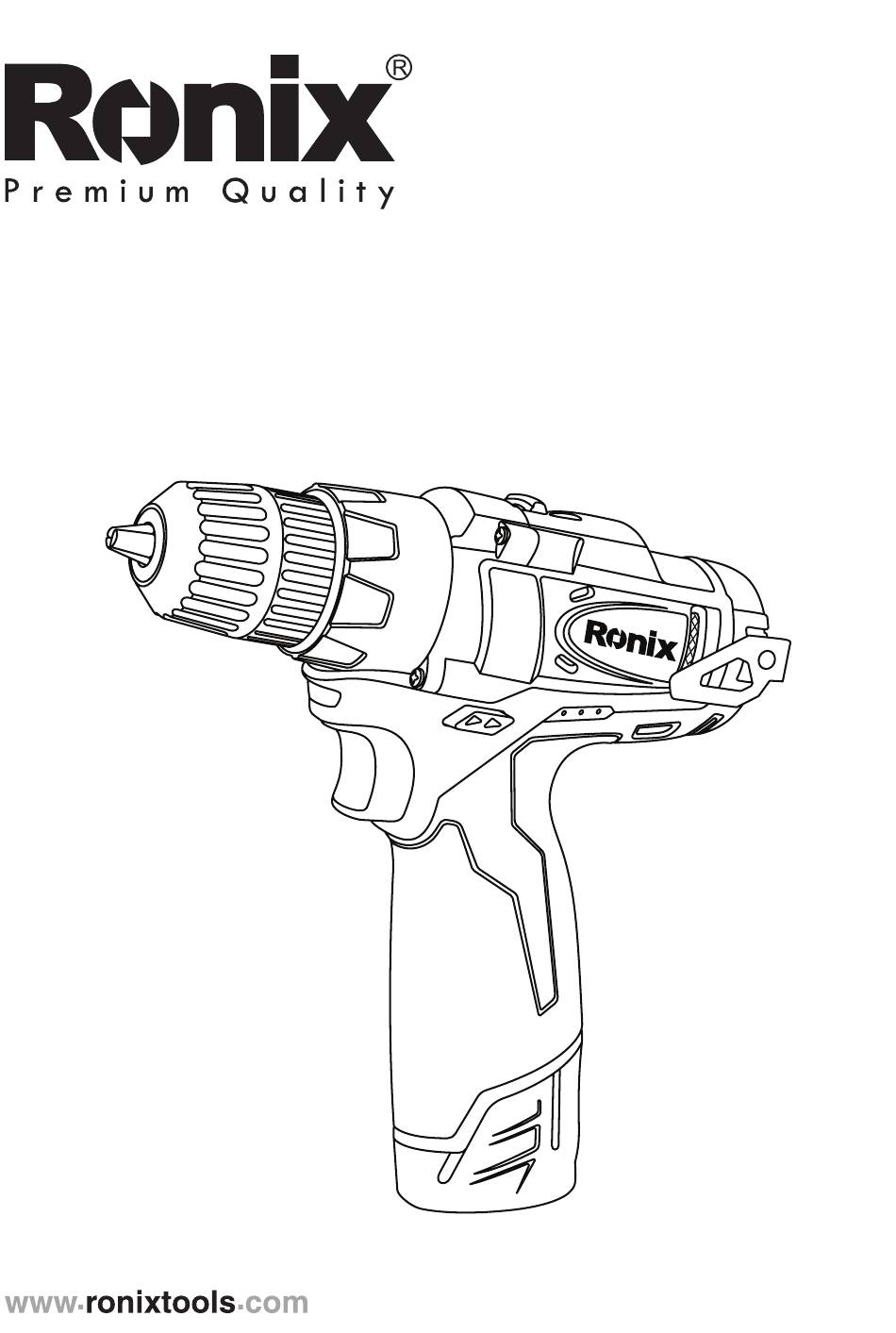

- Page 1 CORDLESS DRIVER DRILL RP-8812...
-
Page 2: Technical Specification
TECHNICAL SPECIFICATION Model 8812 Weight 1.2kg Battery Voltage Battery Chemistry Lithium Battery capacity 1.5Ah Max Torque 30NM Max Capacity In Wood 30mm Charge time 1Hr30 Includes Two 1.5Ah/12 V Batteries, 1 Fast charger GENERAL POWER TOOL SAFETY RULES WARNING! -Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. -
Page 3: Electrical Safety
ELECTRICAL SAFETY -Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. -Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. - Page 4 personal injuries. -Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. -Remove any adjusting key or wrench before turning the power tool on.
- Page 5 -Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. -Keep cutting tools sharp and clean.
- Page 6 -Follow instruction for lubricating and changing accessories. -Keep handles dry, clean and free from oil and grease. CORDLESS DRILL/SCREW DRIVER SAFETY WARNING! -Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a «live»...
-
Page 7: Do Not Short The Battery Cartridge
-Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery. -Do not disassemble battery cartridge. -If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion. - Page 8 tool operation and charge the battery cartridge when you notice less tool power. -Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life. -Charge the battery cartridge with room temperature at 10°C - 40°C (50°F - 104°F). Let a hot battery cartridge cool down before charging it. LIGHTING UP THE FRONT LAMP CAUTION: Do not look in the light or see the source of light directly.
-
Page 9: Reversing Switch Action
REVERSING SWITCH ACTION This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation. When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled Reversing switch lever FUNCTIONAL DESCRIPTIO CAUTION:... -
Page 10: Switch Action
the way until it locks in place with a little click. -Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly. SWITCH ACTION A CAUTION: -Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the «OFF»... -
Page 11: Speed Change
SPEED CHANGE To change the speed, first switch off the tool and then slide the speed change lever to the «2» side for high speed or «1» side for low speed. Be sure that the speed change lever is set to the correct position before operation. -
Page 12: Adjusting The Fastening Torque
ADJUSTING THE FASTENING TORQUE The fastening torque can be adjusted in 18 steps by turning the adjusting ring so that its graduations are aligned with the pointer on the tool body. The fastening torque is minimum when the number 1 is aligned with the pointer and maximum when the marking is aligned with the pointer. -
Page 13: Operation
bit in the chuck as far as it will go. Turn the sleeve clockwise to tighten the chuck. To remove the bit, turn the sleeve counterclockwise. Sleeve NOTE: When driving wood screws, predrill pilot holes to make driving easier and to prevent splitting of the work piece. See the chart. Nominal diameter Recommended size of wood screw (mm) -
Page 14: Drilling Operation
Always insert the battery cartridge all the way until it locks in place. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. Hold the tool firmly with one hand on the grip and the other hand on the bottom of the battery cartridge to control the twisting action. - Page 15 Start the tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts in. CAUTION: -Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged. -There is a tremendous force exerted on the tool/ bit at the time of hole break through.
-
Page 16: Maintenance
-Never use gasoline, benzene, thinner, alcohol or the like. Discoloration, deformation or cracks may result. NOTE: To maintain product safety and reliability repairs, any other maintenance or adjustment should be performed by RONIX SERVICE Authorized Service Centers, always using RONIX replacement parts. USER MANUAL...
