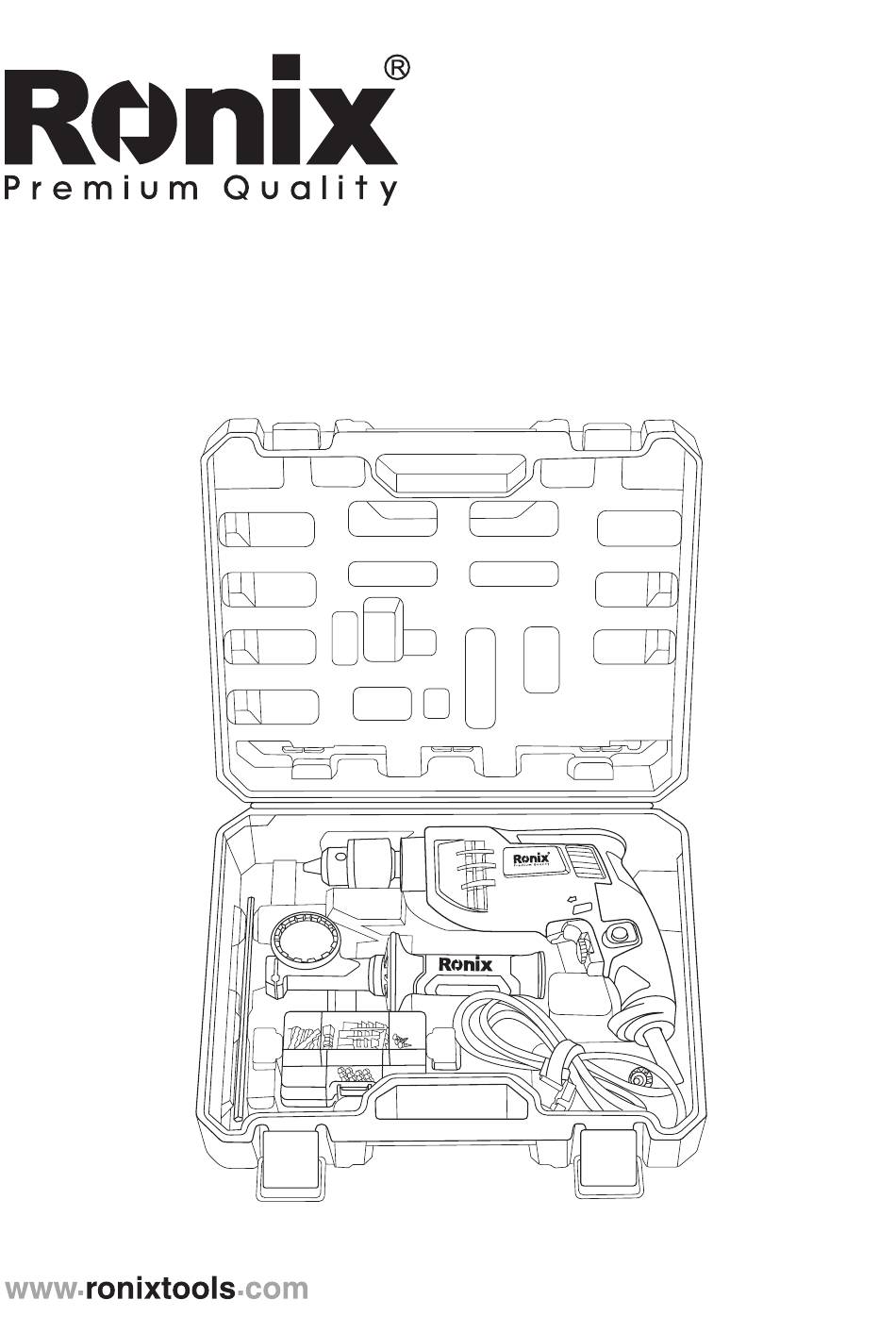

- Page 1 IMPACT DRILL KITS 54 PCS RS-0005...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Model RS-0005 Power 750 W Voltage 220-240V Frequency 50-60Hz Item package quantity Total weight 4.02 kg Chuck Type 13mm key chuck Chuck Capacity 1.5 To 13 mm No-Load Speed 0-2700 RPM Max. Capacity in Wood 25 mm Max Capacity In Steel... -
Page 3: Part List
PART LIST Knob for drilling hammer drilling Chuck Depth gauge Housing Rotation Lock-on button direction switch Speed dial Side handle Switch trigger Sheath Cable GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. -
Page 4: Work Area Safety
WORK AREA SAFETY - Keep work area clean and well lit. Cluttered or dark areas invite accidents. - Don’t operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 5 operating a power tool. Don’t use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. - Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
-
Page 6: Functional Description
the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. - Store idle power tools out of the reach of children and don’t allow persons unfamiliar with power tool or these instructions to operate the power tool. -
Page 7: Speed Change
during extended use. Apply caution when locking tool in “ON” position and maintain firm grasp on tool. To start the tool, simply pull the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger and then push in the lock-on button. -
Page 8: Installing Auxiliary Handle
ASSEMBLY CAUTION: Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. INSTALLING AUXILIARY HANDLE Always use the auxiliary handle to ensure operating safety. Install the auxiliary handle on the tool barrel. Then tighten the handle by turning clockwise at the desired position. -
Page 9: Depth Gauge
To install the bit, place it in the chuck as far as it will go. Tighten the chuck by hand. Place the chuck key in each of the three holes and tighten clockwise. Be sure to tighten all three chuck holes evenly. To remove the bit, turn the chuck key counterclockwise in just one hole, then loosen the chuck by hand. -
Page 10: Maintenance
Secure the workpiece to prevent it from turning when drilling. Begin drilling at a very low speed to prevent the bit from slipping off the starting point. Increase the speed as the drill bit bites into the material. DRILLING IN METAL For maximum performance, use high speed steel bits for metal or steel drilling. - Page 11 attempting to perform inspection or maintenance. Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Clean ventilation slots regularly with a brush or compressed air. IMPACT DRILL KITS 54 PCS...
