Summary of Contents for Ronix RS-0007

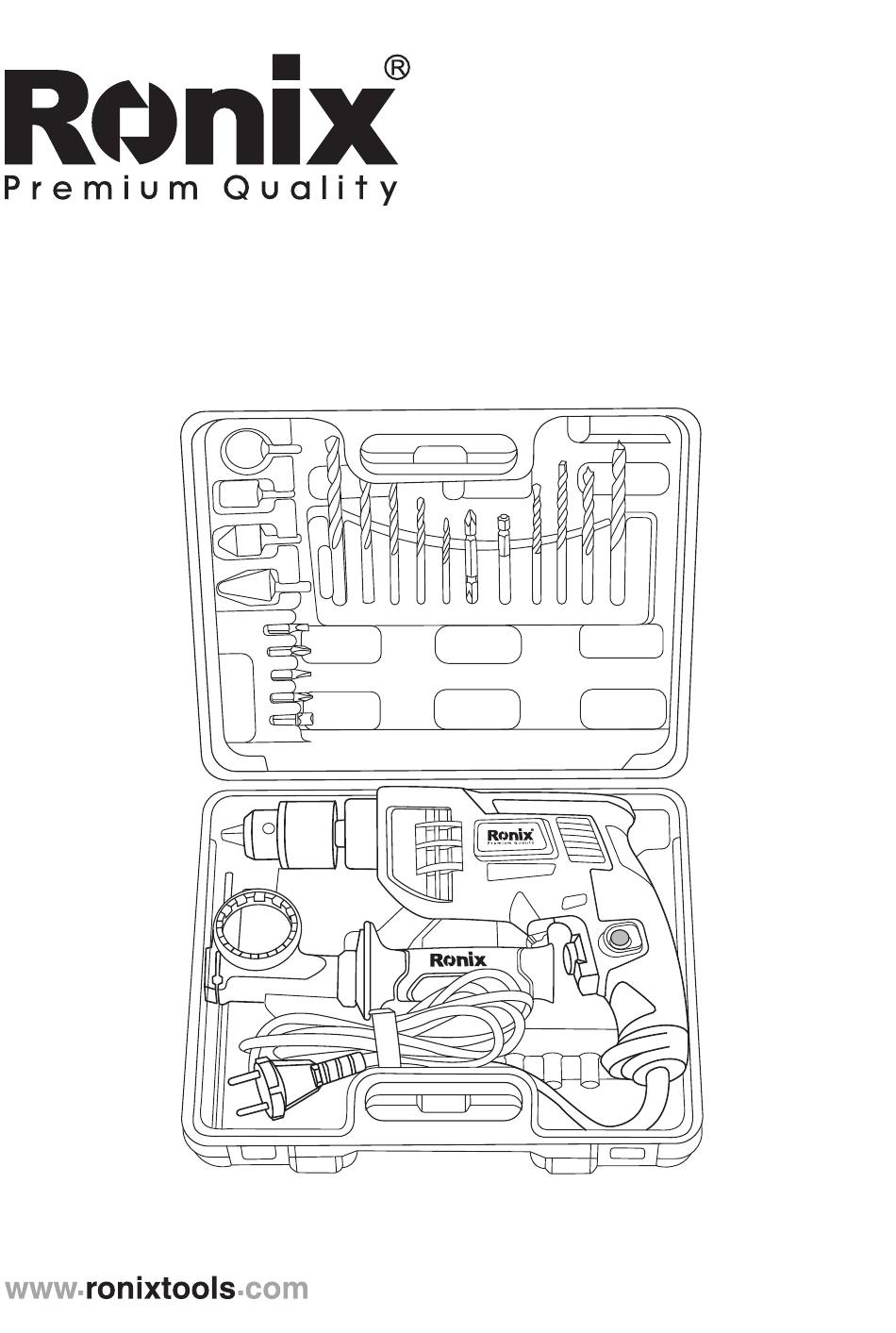

- Page 1 IMPACT DRILL KITS 29 PCS RS-0007...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Model RS-0007 Power 750w Voltage 220-240V Frequency 50-60Hz Chuck Type 13mm key chuck Weight 1.73kg Max Capacity in Concrete 13mm Body Material PA6+GF30 Cable Length No-Load Speed 0-2700RPM Max Capacity in Wood 25mm Max Capacity In Steel 13mm Net Weight 2.908kg... -
Page 3: Part List
PART LIST Knob for drilling hammer drilling Chuck Depth gauge Housing Rotation Lock-on button direction switch Speed dial Side handle Switch trigger Sheath Cable GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. -
Page 4: Electric Safety
- Don’t operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. - Page 5 moment of inattention while operating power tools may result in serious personal injury. - Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
-
Page 6: Functional Description
starting the power tool accidentally. - Store idle power tools out of the reach of children and don’t allow persons unfamiliar with power tool or these instructions to operate the power tool. Power tools are dangerous in the hand s of untrained users. - Maintain power tools. -
Page 7: Speed Change
to stop. For continuous operation, pull the switch trigger and then push in the lock-on button. To stop the tool from the locked position, pull the switch trigger fully, then release it. SPEED CHANGE To change the speed, rotate the speed dial to the “-” position for low speed or the “+”... -
Page 8: Installing Auxiliary Handle
INSTALLING AUXILIARY HANDLE Always use the auxiliary handle to ensure operating safety. Install the auxiliary handle on the tool barrel. Then tighten the handle by turning clockwise at the desired position. It may be swung 360° so as to be secured at any position. -
Page 9: Depth Gauge
DEPTH GAUGE 1- Depth gauge The depth gauge is convenient for drilling holes of uniform depth. Loosen the auxiliary handle and adjust the depth gauge to the desired depth. After adjusting, tighten the auxiliary handle. NOTE: The depth gauge cannot be used at the position where the depth gauge strikes against the tool body. -
Page 10: Maintenance
drilling. Selector to drill mode. To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling. Use a cutting lubricant when drilling metals.
