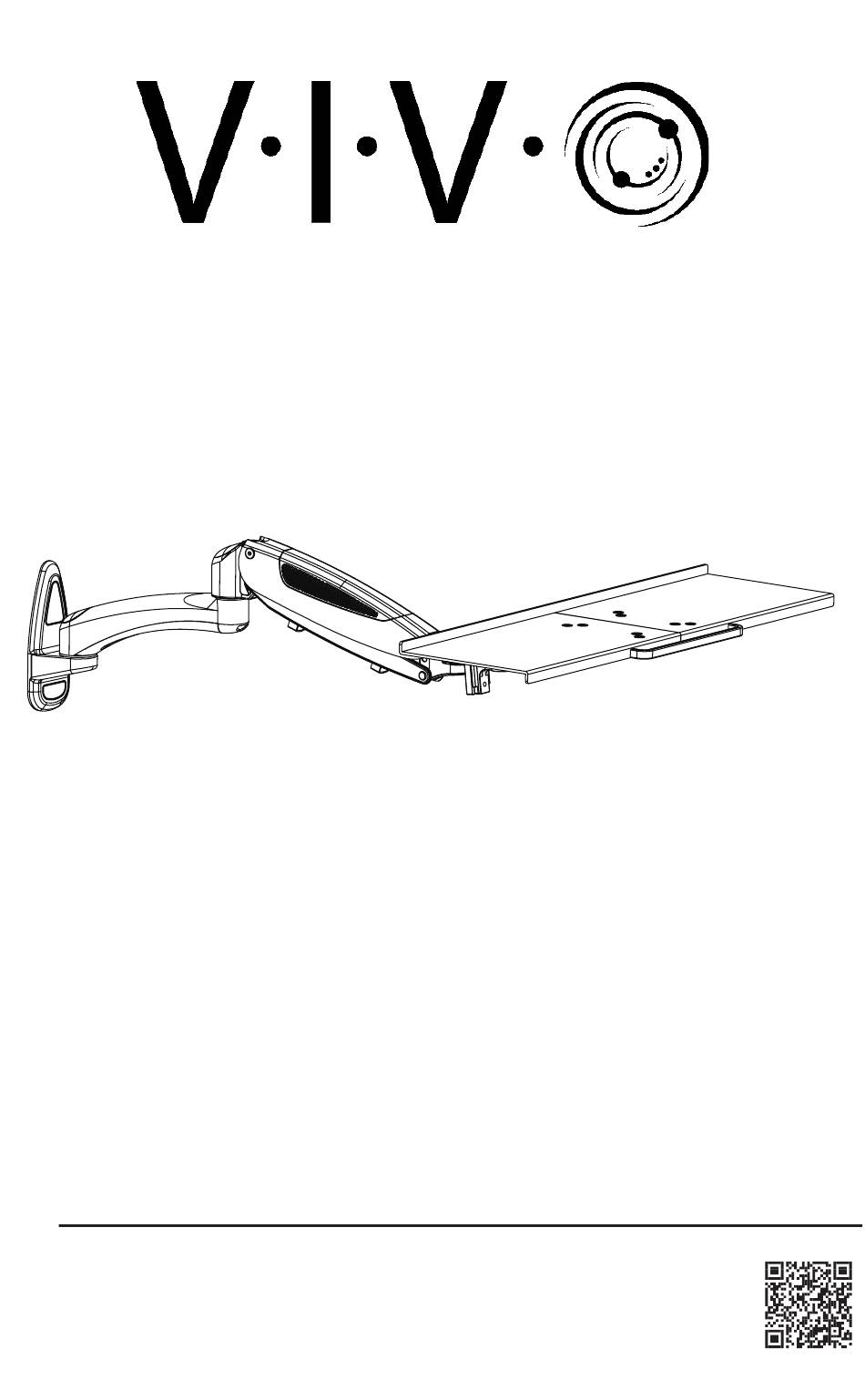

- Page 1 Black Pneumatic Wall Mounted Keyboard Tray SKU: MOUNT-KB35A Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-kb35a...
-
Page 2: Tools Needed
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) D (x1) E (x1) Wall Plate Arm Extension Keyboard Bracket Mount Fitting F (x1) G (x1) H (x1) I (x2) J (x5) Keyboard Tray Handle Wall Plate Cover K (x1) Connecting Plate Included Hardware &... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Wood Stud Installation Place Wall Plate (A) against the wall and mark drilling locations with a pencil. Use of a stud finder and Level (T-D) is highly recommended. Drill 1.2” (30mm) deep holes using a .12” (3mm) bit, then attach Wall Plate (A) to wall using M6x50mm Screws (W-A) and a Phillips screwdriver. - Page 5 OPTION B: Concrete / Brick Installation Place Wall Plate (A) against the wall and mark drilling locations with a pencil. Use of a Level (T-D) is highly recommended. Drill 2” (50mm) deep holes using a .31” (8mm) bit, press Concrete Anchors (M-B) into holes, then attach Wall Plate (A) to wall using M6x50mm Screws (M-A) and a Phillips screwdriver.
- Page 6 STEP 2 Slide Arm Extension (B) onto Wall Plate (A). Secure using M6x25mm Screw (S-E) and Cap (I) with a Phillips screwdriver. STEP 3 Attach Mount Fitting (E) to Arm (C) using M6x16mm Screws (S-C) and M6.5 Washer (S-F). Use M6.5 Washer (S-F) with top screw inserted through slot. Tighten the M6x16mm Screws (S-C) using the 4mm Allen Wrench (T-B).
-
Page 7: Tilt Adjustment
Tilt Adjustment The Keyboard Bracket (D) features a tilt adjustment allowing you to use the full tilt range or limit the range, with a Tilt Screw (D1) under the bracket. Take note of the two positions below and then use 3mm Allen Wrench (T-A) to adjust the Tilt Screw (D1) so that it’s in the limited range setting. - Page 8 STEP 4 Assemble both halves of Keyboard Tray (F) to Keyboard Bracket (D) and Connecting Plate (K) using M5x10mm Screws (S-A) and a Phillips screwdriver. NOTE: Make sure the lip on Keyboard Tray (F) is facing up in the back, and the handle mounting holes are in the front.
- Page 9 STEP 5 Secure Handle (G) to Keyboard Tray (F) using M4x6mm Screws (S-B) and a Phillips screwdriver. STEP 6 Mount Keyboard Bracket (D) to Arm (C) using M5x18mm Screw (S-D) and secure using 4mm Allen Wrench (T-B).
- Page 10 STEP 7 Assemble Arm (C) to Arm Extension (B). Secure using M6x25mm Screw (S-E) and Cap (I) with a Phillips screwdriver. Remove adhesive backing from Pads (J) and place them on Keyboard Tray (F).
- Page 11 STEP 8 Adjust the tension in Arm (C) using 5mm Allen Wrench (T-C). Turn clockwise to reduce tension for lighter keyboards and counter-clockwise to increase tension for heavier keyboards. Lock the rotation of Arm (C) by tightening the set screw in back using 3mm Allen Wrench (T-A).
-
Page 12: Last Updated
LAST UPDATED: 03/29/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
