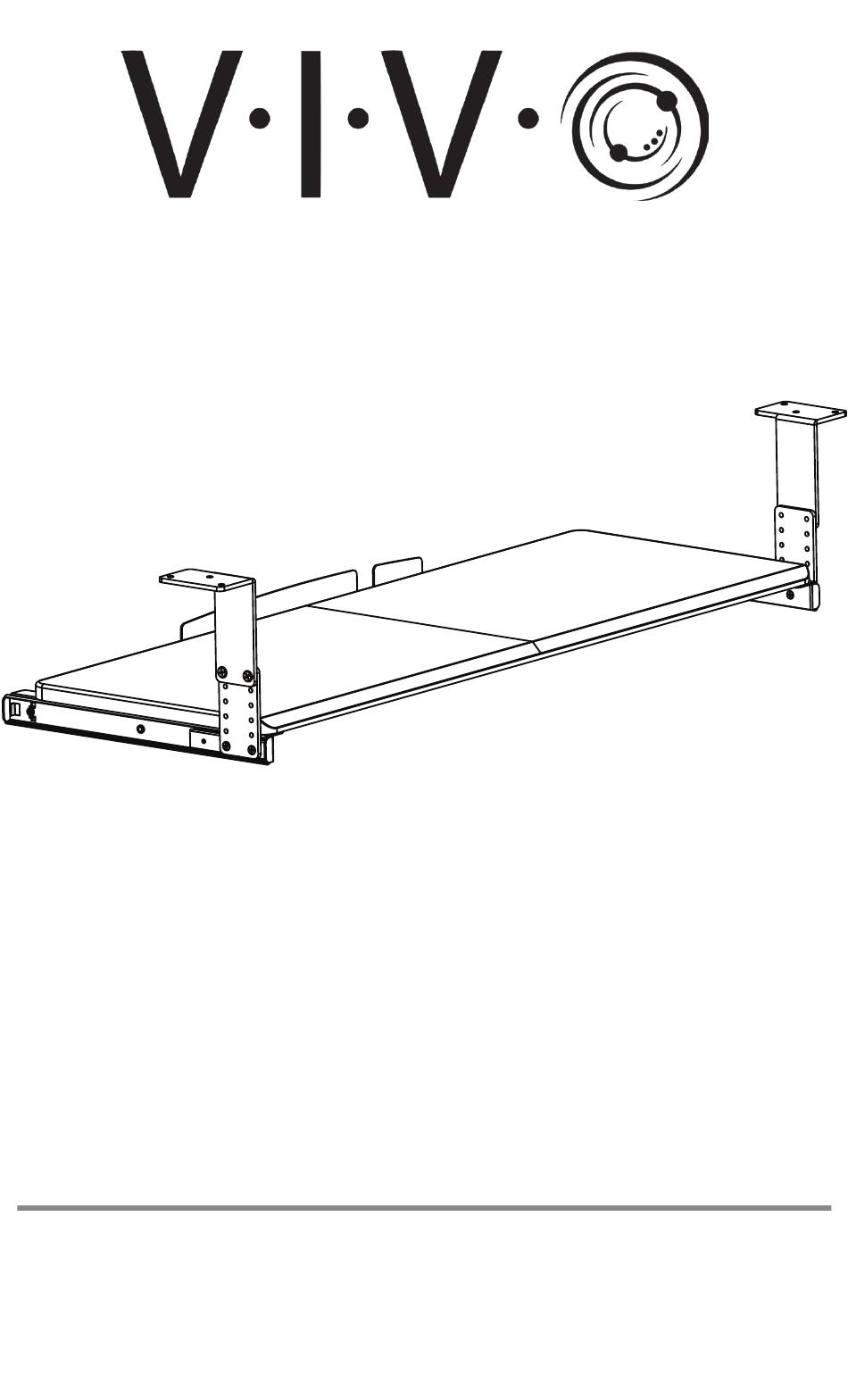

- Page 1 Under Desk Height Adjustable Keyboard Tray MOUNT-KB27HB Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Mounting Bracket 1 Mounting Bracket 2 Keyboard Tray E (x2) F (x2) G (x1) D (x2) Support Bracket Connecting Keyboard Rail Plate Stop Included Hardware & Tools S-A (x8) S-B (x8) S-C (x12) S-D (x6) M4x7mm Screws M5x12mm Round... -
Page 4: Assembly Steps
Assembly Steps STEP 1 Assemble Keyboard Tray (C) using Connecting Plates (F) and M5x12mm Flat Head Screws (S-C), and tighten with a Phillips screwdriver. STEP 2 Attach Keyboard Stop (G) to the back of Keyboard Tray (C) using M5x12mm Flat Head Screws (S-C). - Page 5 STEP 3 Choosing Assembly Method Tray features two assembly options based on the desired extension distance. Extended Standard Standard Extended Tray will be flush with desktop edge. Tray will be able to extend an additional 1.2” (30mm) when in use, but won’t be flush with desktop edge.
- Page 6 STEP 3 - Cont’d Assemble Rails (D) to the Support Brackets (E) in the desired position using M4x7mm Screws (S-A) and a Phillips screwdriver. Inset Ensure Inset Holes are Holes facing outwards.
- Page 7 STEP 4 Attach Rails (B) to Keyboard Tray (A) using M5x12mm Round Head Screws (S-B), and tighten with a Phillips screwdriver. The Rails (B) should protrude from the back of the Keyboard Tray (A). Back (Bottom View) Front...
- Page 8 STEP 5 Choose Mounting Option Mounting Brackets (A,B) can be assembled facing inward or outward depending on your installation needs. Use a tape measure to measure the amount of clearance you need beneath your desk and choose the option that fits best. Desktop Inward Facing 27.3”...
- Page 9 Outward Facing - Cont’d Hold Template (T-A) along the underside edge of desktop and mark the outer holes using a pencil. Underside of Desktop Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 1/8” (3mm) Hole Depth: 0.4” (10mm) (S-F) and using a Phillips Install Keyboard Tray to desk using ST5x16mm Screws screwdriver or drill.
- Page 10 Inward Facing Attach Mounting Brackets (A,B) to Supports Brackets (E) at the desired height using M5x8mm Round Head Screws (S-E) and a Phillips screwdriver, ensuring Bracket extends over Keyboard Tray. Mounting Bracket 1 (A) should be on the right and Mounting Bracket 2 (B) on the left. For easier assembly, Mounting Brackets (A,B) can be installed to the desk first followed by Support Brackets (E) and Rails (D), then installing Keyboard Tray (C) last.
- Page 11 Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 1/8” (3mm) Hole Depth: 0.4” (10mm) (S-F) and a Phillips screwdriver or drill. Install Keyboard Tray to desk using ST5x16mm Screws...
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
