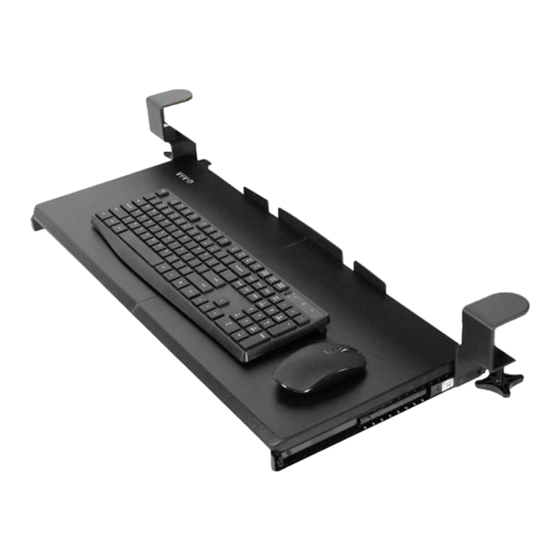

Black Clamp-on Tilting Keyboard Tray
Instruction Manual
SKU: MOUNT-KB05T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-kb05t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-KB05T
Summary of Contents for Vivo MOUNT-KB05T
- Page 1 Black Clamp-on Tilting Keyboard Tray Instruction Manual SKU: MOUNT-KB05T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-kb05t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Connect Keyboard Tray (A) using Connecting Plate (B), M5x12mm Flathead Screws (S-C), and a Phillips screwdriver. STEP 2 Attach Keyboard Stop (E) to tray assembly using M5x12mm Flathead Screws (S-C) and a Phillips screwdriver.
- Page 4 STEP 3 Connect Tilting Track (C) to tray assembly using M5x12mm Panhead Screws (S-B) and a Phillips screwdriver. Note: Make sure the tilt adjustment knobs are closer to the front edge of the tray STEP 4 Turn assembly over and connect Clamps (D) to side of Tilting Track (C) using M4x7mm Screws (S-A) and a Phillips screwdriver, as shown below.
- Page 5 STEP 5 Place Clamp Pad (F) onto Clamp (D), as shown below. Slide assembly onto desktop and secure by tightening Clamp (D) knobs.
- Page 6 STEP 6 Gently pull keyboard tray to bring it forward. Gently push it back to return it to it’s under desktop storage position. STEP 7 Remove both locking knobs from Tilting Brackets (C), adjust to desired position, then reinstall locking knobs into new adjustment position to secure.
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
