Premium under desk keyboard tray

Advertisement

Premium Under
Desk Keyboard Tray
MOUNT-KB27P-B
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-KB27P-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-KB27P-B

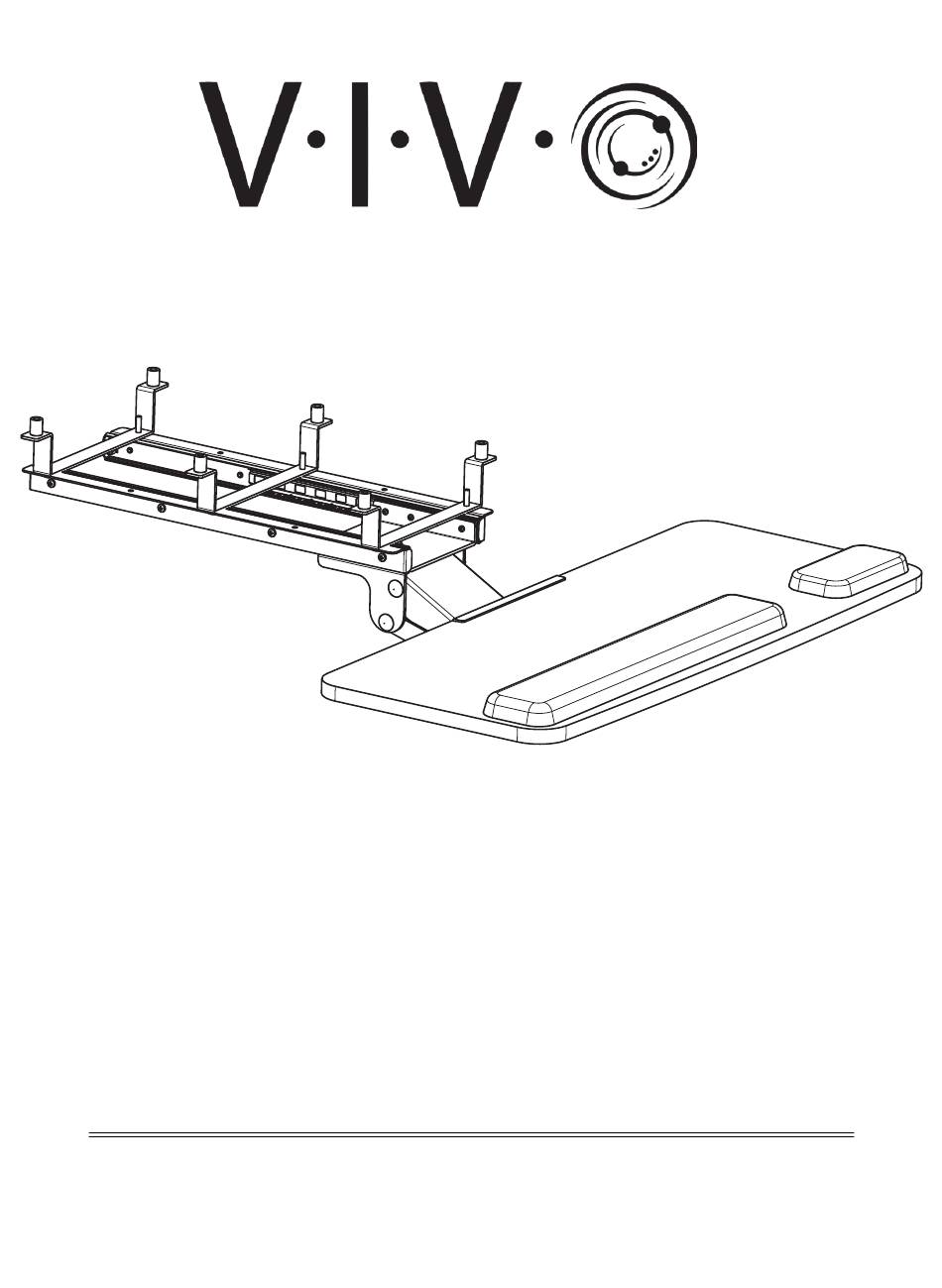

  • Page 1 Premium Under Desk Keyboard Tray MOUNT-KB27P-B Assembly Manual...
  • Page 2: We're Here For You

    Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process. www.vivo-us.com/products/mount-kb27p-b WATCH NOW...
  • Page 3: Please Read

    Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.
  • Page 4 Package Contents B (x3) A (x1) C (x1) Adapter Keyboard Tray Mounting Bracket D (x1) E (x1) Keyboard Wrist Pad Mouse Wrist Pad Included Hardware & Tools S-A (x10) S-B (x6) S-C (x6) S-D (x6) S-E (x6) S-F (x6) M5x12mm M5 Washer ST5x15mm ST5x25mm...
  • Page 5: Mounting Options

    Mounting Options Option 1: Straight Desk Mounting pg. 6-20 Option 2: Corner Desk Mounting pg. 21-30...
  • Page 6 Straight Desk Mounting...
  • Page 7: Pre-Assembly Steps

    Pre-Assembly Steps Fold in one end of Template (T-A) along the line. Testing Template Hold the entire Template (T-A) on the underside of your desktop, and align the non-folded end of the Template with the Front Edge. Observe your desk frame’s horizontal supports to see if they intersect the Template.
  • Page 8: Standard Assembly

    Standard Assembly STEP 1 Tape the Template (T-A) to the underside of the desktop. Note: Ensure the end of Template is still Underside of Desktop aligned with the Front Edge of desktop. Mark all six inner holes using a pencil, then remove the Template.
  • Page 9 STEP 2 Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 1/8” (3mm) Hole Depth: 3/8” (10mm) Secure Mounting Bracket (A) to the desktop using ST5x15mm Screws (S-C), M5 Washers (S-B) and a Phillips screwdriver.
  • Page 10 STEP 3 Attach Keyboard Tray (C) to Mounting Bracket (A) using M5x12mm Screws (S-A) and a Phillips screwdriver. Ensure the four screw holes on Keyboard Tray are towards the back. STEP 4 Remove adhesive backing from Wrist Pads (D,E) and apply where desired.
  • Page 11 Adjustments Loosen the Lever to allow vertical adjustment and tilt of the keyboard tray. Retighten once at the desired position. Lever Swivel keboard tray as desired. Assembly Complete...
  • Page 12 ** Alternate Installation ** Installing with Adapters STEP 1 Determining Mounting Hole Pattern Side A: Unfold and position Template (T-A) so that Side A is Aligned with the Front Edge of the desktop. Try to locate six outer holes that are exposed to the desktop. If this hole pattern works, proceed to step 2 on page 14.
  • Page 13 Side B: If there are not enough holes exposed to the desktop, flip the Template around that Side B is Aligned with the Front Edge of the desktop. Try again to locate six outer holes that are exposed to the desktop. If this hole pattern works, proceed to step 2 on page 14.
  • Page 14 STEP 2 Cut the Template (T-A) between the A and B sections, then tape the side closest to the Front Edge. This step will only show Side B Aligned with Front Edge, but the instructions NOTE will be the same for both orientations. Underside of Desktop Mark the four outer holes using a pencil, then Pre-Drilling Instructions...
  • Page 15 STEP 3 Determining Mounting Hardware Use a Tape Measure to measure your desktop’s deepest crossbar/obstruction. Desktop Deepest Crossbar/ Deepest Crossbar Obstruction Depth Use Deepest Crossbar Depth with the table below to determine the mounting hardware to use for Mounting Bracket (A). Deepest Crossbar Depth Mounting Hardware to Use 1.7”...
  • Page 16 STEP 4 Using the hardware selected from Determining Mounting Hardware, mount two Adapters (B) to the underside of desktop using the marked holes closest to the Front Edge. NOTE Please note the last Adapter (B) Ensure Spacers (S-G,S-H) are between the Adapters (B) and will be installed later.
  • Page 17 STEP 4 - Cont’d Attach the last Adapter (B) to the back of Mounting Bracket (A) using M5x12mm Screws (S-A) and a Phillips screwdriver. NOTE Please note the last Adapter (B) will be secured later. STEP 5 Pre-Drilling Instructions Drill the back two mounting holes into desktop using the illustration shown. Drill into the desktop by passing the drill bit through the holes on Adapter (B).
  • Page 18 STEP 6 Secure the remaining Adapter (B) to the desktop using remaining hardware from Determining Mounting Hardware and a Phillips screwdriver. Ensure Spacers (S-G,S-H) are between the Adapters (B) and the desktop.
  • Page 19 Attach Keyboard Tray (C) to Mounting Bracket (A) using M5x12mm Screws (S-A) and a Phillips screwdriver. STEP 8 Remove adhesive backing from Wrist Pads (D,E) and apply where desired.
  • Page 20 Adjustments Loosen the Lever to allow vertical adjustment and tilt of the keyboard tray. Retighten once at the desired position. Lever Swivel keboard tray as desired. Assembly Complete...
  • Page 21 Corner Desk Mounting...
  • Page 22 STEP 1 Cut off both ends of Template (T-A) using a scissors.
  • Page 23 STEP 2 Orient Template (T-A) either direction with Side A at Front Edge or Side B at Front Edge and find a location where either set of six outer holes is exposed to the desktop. ** Side A at Front Edge ** ** Side B at Front Edge **...
  • Page 24 STEP 3 Cut the Template (T-A) between the A and B sections, then tape the side closest to the Front Edge. This step will show only the first Template orientation, with section B at desktop NOTE edge, but the instructions will be the same for both orientations. Pre-Drilling Instructions Mark the four outer holes using a pencil, then remove the Template.
  • Page 25 STEP 4 Determining Mounting Hardware Use a Tape Measure to measure your desktop’s deepest crossbar/obstruction. Desktop Deepest Crossbar/ Deepest Crossbar Obstruction Depth Use Deepest Crossbar Depth with the table below to determine the mounting hardware to use for Mounting Bracket (A). Deepest Crossbar Depth Mounting Hardware to Use 1.7”...
  • Page 26 STEP 5 Using the hardware selected from Determining Mounting Hardware, mount two Adapters (B) to the underside of desktop using the marked holes closest to the Front Edge. Ensure Spacers (S-G,S-H) are NOTE Please note the last Adapter (B) between the Adapters (B) and will be installed later.
  • Page 27 STEP 5 - Cont’d Attach the last Adapter (B) to the back of Mounting Bracket (A) using the hardware from Determining Mounting Hardware. NOTE Please note the last Adapter (B) will be secured later. STEP 6 Pre-Drilling Instructions Drill the back two mounting holes into desktop using the illustration shown. Drill into the desktop by passing the drill bit through the holes on Adapter (B).
  • Page 28 STEP 7 Secure the remaining Adapter (B) to the desktop using remaining hardware from Determining Mounting Hardware and a Phillips screwdriver. Ensure Spacers (S-G,S-H) are between the Adapters (B) and the desktop.
  • Page 29 Attach Keyboard Tray (C) to Mounting Bracket (A) using M5x12mm Screws (S-A) and a Phillips screwdriver. STEP 9 Remove adhesive backing from Wrist Pads (D,E) and apply where desired.
  • Page 30 Adjustments Loosen the Lever to allow vertical adjustment and tilt of the keyboard tray. Retighten once at the desired position. Lever Swivel keboard tray as desired. Assembly Complete...
  • Page 31 Securely store your PC in Clamp on & under desk and more with our clamp-on an under desk mount or keyboard tray options for and wall mount solutions. cart for easy access. all setup types. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 32 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
