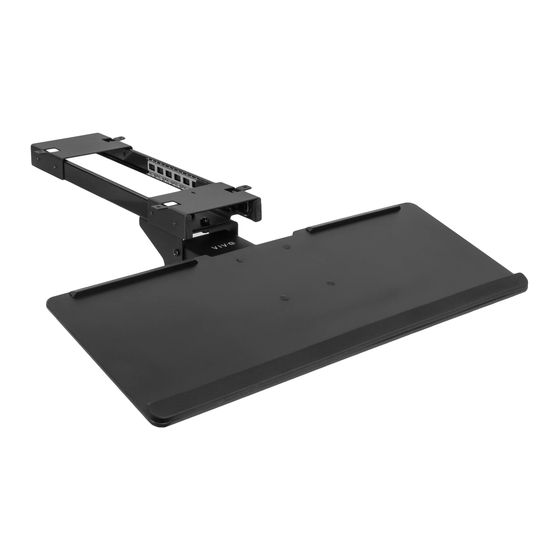

Black Deluxe Under Desk Keyboard Tray
Instruction Manual
SKU: MOUNT-KB04C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-kb04c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-KB04C
Summary of Contents for Vivo MOUNT-KB04C
- Page 1 Black Deluxe Under Desk Keyboard Tray Instruction Manual SKU: MOUNT-KB04C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-kb04c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Position Track (A) 30mm from the front edge of the desk and mark hole locations with a pencil. Set Track (A) aside and drill 15mm (0.6") holes using a 4mm (3/20") drill bit.
- Page 4 STEP 2 Assemble Mounting Bracket (B) to Track (A) using M5X8mm Screws (S-A) and a Phillips screwdriver. STEP 3 (W-A) and a Phillips screwdriver. Mount assembly to underside of desk using ST5.5x19mm Screws...
- Page 5 STEP 4 Assemble Right and Left Tray (C, D) to mount assembly using Connecting Bracket (E), M5x12mm Screws (S-B) and a Phillips screwdriver. STEP 5 Remove adhesive backing from Screw Covers (S-C) and apply over previously installed screws. Remove adhesive backing from Wrist Rests (F) and apply to assembled keyboard tray.
- Page 6 Adjustments Loosen the knob to adjust tilt and height, and tighten in the desired position.
- Page 7 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 8 ): 1HR 8M within office hrs - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
