Summary of Contents for Vivo MOUNT-KB01B

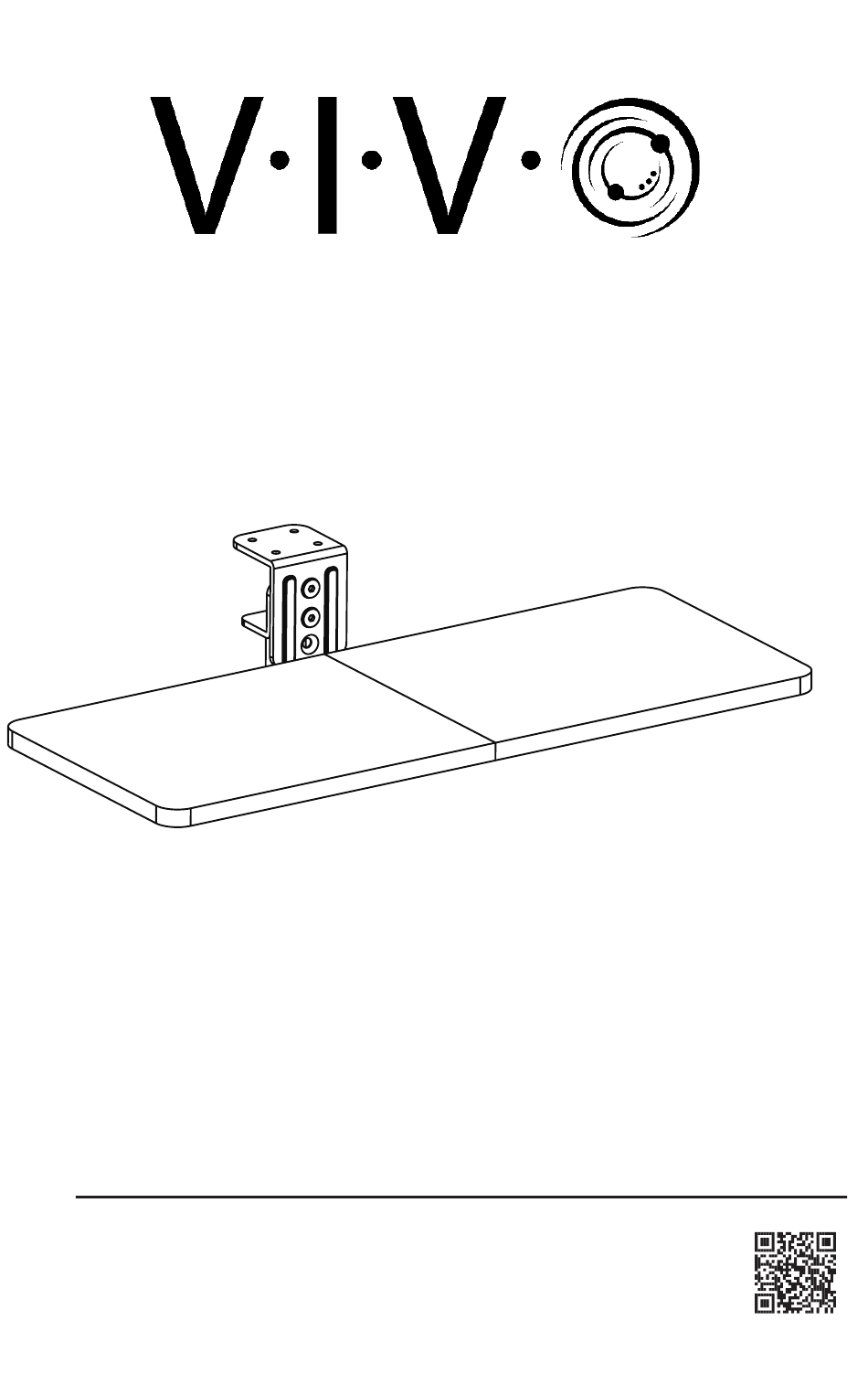

- Page 1 Under Desk Rotating Keyboard Tray SKU: MOUNT-KB01B Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-kb01b...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x1) C (x1) D (x1) Tray Set Tray Support Upper Lower Mounting Mount Bracket E (x1) F (x2) G (x1) Swivel Cap Plastic Template Bushing Included Hardware & Tools S-A (x4) S-B (x10) M-A (x6) T-A (x1) M8x12mm M5x12mm...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Align the Mounting Template (G) to the underside edge of your desktop with the arrow facing the desktop edge. Tape to temporarily hold in place. Mark and drill .39” (10mm) deep pilot holes using a 3/16 (3mm) drill bit. Remove Template. DESKTOP STEP 2 Install the Upper Mounting Bracket (C) to the desktop using ST5x16mm Screws (M-A) and a Phillips... - Page 5 STEP 3 Attach the Lower Mounting Bracket (D) to the Upper Mounting Bracket (C) using M8x12mm Screws (S-A), tightening with 5mm Allen Wrench (T-A). Select the mounting holes that match your desired under desk clearance. S-A (x2) 1st Set 2nd Set 1st Set - 3 1/ 4 ”...
- Page 6 STEP 5 Insert Plastic Bushings (F) into top and bottom of Tray Support (B) post. Secure the Tray Support (B) to the Lower Mounting Bracket (D) by threading the Swivel Cap (E) to Lower Mounting Bracket post.
- Page 7 STEP 6 Place keyboard and mouse onto assembled tray and adjust as desired. Desktop 360°...
- Page 8 LAST UPDATED: 10/09/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
