Summary of Contents for Vivo MOUNT-KB35B

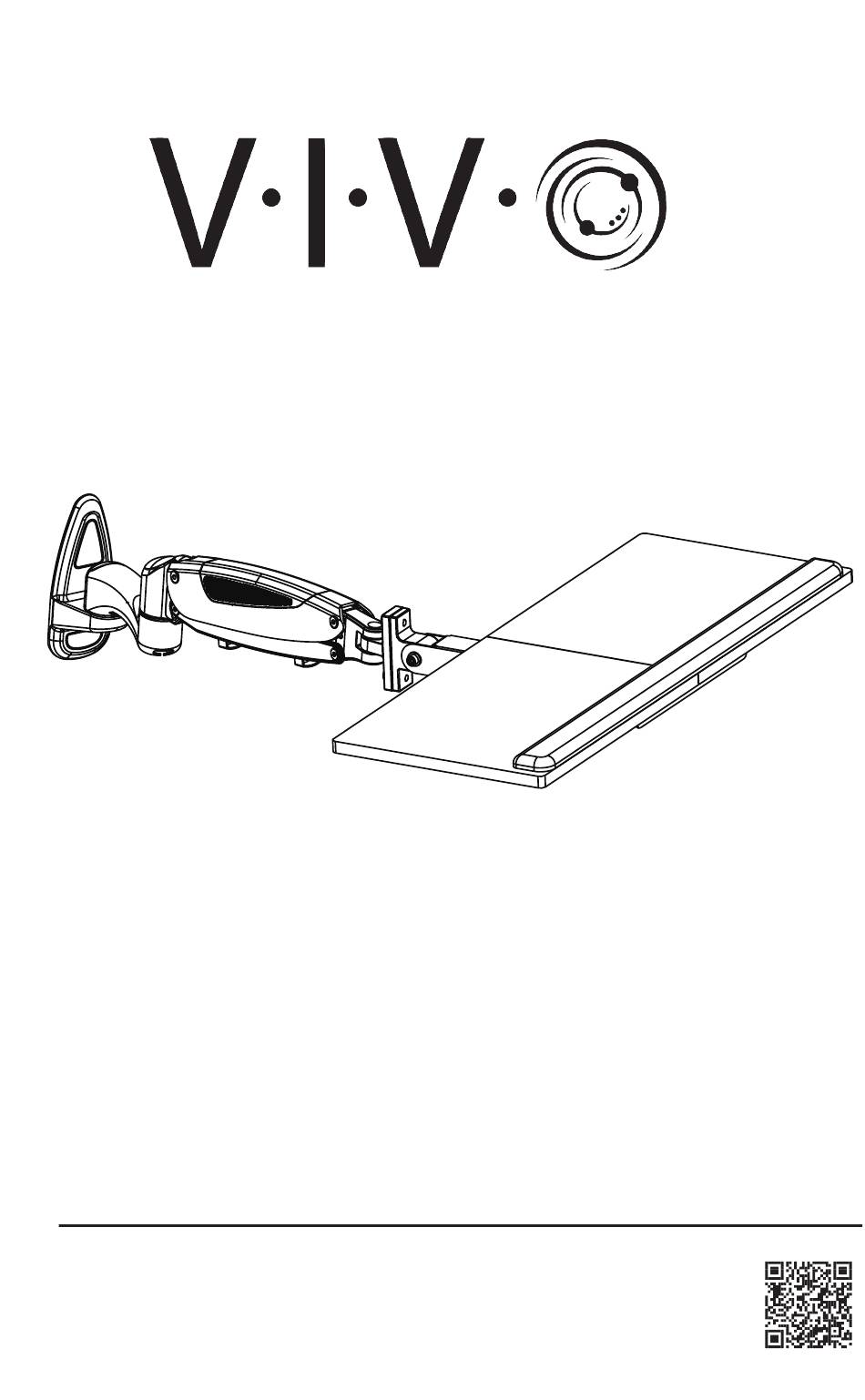

  • Page 1 Pneumatic Wall Mounted Keyboard Tray SKU: MOUNT-KB35B Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-kb35b...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) Lower Arm Wall Mount C (x1) D (x1) Adjustable Arm Connecting Plate E (x2) F (x1) Keyboard Tray Wrist Pad Half G (x2) H (x1) I (x1) Top Screw Cover Bottom Screw Cover...
  • Page 4: Included Hardware & Tools

    Included Hardware & Tools S-A (x10) S-B (x2) S-C (x2) S-D (x2) M5x10mm Screw M6x20mm Screw Large Washer Small Washer S-E (x2) W-A (x3) W-B (x3) T-A (x1) M6x25mm ST6x50mm Concrete Anchor 3mm Allen Spring Screw Screw Wrench T-B (x1) T-C (x1) T-D (x1) 4mm Allen...
  • Page 5 STEP 1 Option 1: Wood Stud Mounting Use Wall Mount (A) to mark drilling locations on the wall where a stud is located. Use of a Level (T-D) and stud finder is recommended. Pre-Drilling Instructions Drill mounting holes using illustration below. 1/8”...
  • Page 6 Wood Stud Mounting - Cont’d Secure Wall Mount (A) to wall using ST6x50mm Screws (W-A) with a Phillips screw- driver. Insert Top Cover (H) and Bottom Cover (I) into the mounting holes. Do NOT use included Anchors (W-B) for wood or drywall. Proceed to STEP 2 on Page 8...
  • Page 7 Option 2: Concrete / Brick Mounting Pre-Drilling Instructions Drill Bit: 5/32” (8mm) Hole Depth 2” (50mm) Use Wall Mount (A) to mark drilling locations. Use of a Level (T-D) is recommended. Press Concrete Anchors (W-B) into the drilled holes. Secure Wall Mount (A) to wall using ST6x50 Screws (W-A) with a Phillips screwdriver.
  • Page 8 STEP 2 Slide Lower Arm (B) onto the Wall Mount (A). Secure using the M6x25mm Spring Screws (S-E) and Caps (G). Slide Adjustable Arm (C) onto Lower Arm (B) and secure using the M6x25mm Spring Screws (S-E) and Caps (G).
  • Page 9 STEP 3 Attach Keyboard Tray Halfs (E) to the Connecting Plate (D) using M5x10mm Screws (S-A) and a Phillips screwdriver. Remove adhesive backing from Wrist Pad (F) and stick to Keyboard Tray as shown.
  • Page 10 STEP 4 Attach Keyboard Tray to the Adjustable Arm (C) using M6x20mm Screws (S-B), Large and Small Washers (S-C,S-D) and 4mm Allen Wrench (T-B). S-B S-D STEP 5 Attach Lever (C1) to the Keyboard Tray using M5x10mm Screws (S-A) and a Phillips screwdriver.
  • Page 11: Keyboard Height Adjustment

    Keyboard Height Adjustment Press and hold Lever (C1) to adjust keyboard height.
  • Page 12 Set Tilt Angle The tilt range will be set using the Tilt Pin underneath the keyboard tray. The Tray Support rests on the Pin, restricting the angle. Follow steps below to adjust and lock in your tilt. 1. Lift Tray to Reveal Pin: Tray Support Tray Support Tilt Pin...
  • Page 13 3. Determine Angle & Set From barely flush, turn the Tilt Pin 5-15 times using 3mm Allen Wrench (T-A). The less you unscrew, the steeper the downward tilt. Test Angle In-Between Turns It is best to make small adjustments to the Tilt Pin length, lower the Keyboard Tray, and test the stability before finalizing the position and adding weight.
  • Page 14 Swivel Arm Adjustment Using the 3mm Allen Wrench (T-A), tighten the Set Screw to your preference. Free Motion Set Screw Turn the Set Screw clockwise to tighten the arm into place.. Secure Turn the Set Screw counter- clockwise to loosen the arm for free motion...
  • Page 15 Keyboard Angle Adjustment Using 5mm Allen Wrench (T-C), adjust the Joint Bolt to position Keyboard Tray. Free Motion Joint Bolt Joint Bolt Turn the Joint Bolt clockwise to tighten the arm into place. Secure Turn the Joint Bolt counter- clockwise to loosen the arm for free motion.
  • Page 16 LAST UPDATED: 10/24/24 REV2 v2.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
