Summary of Contents for Vivo MOUNT-KB08CL

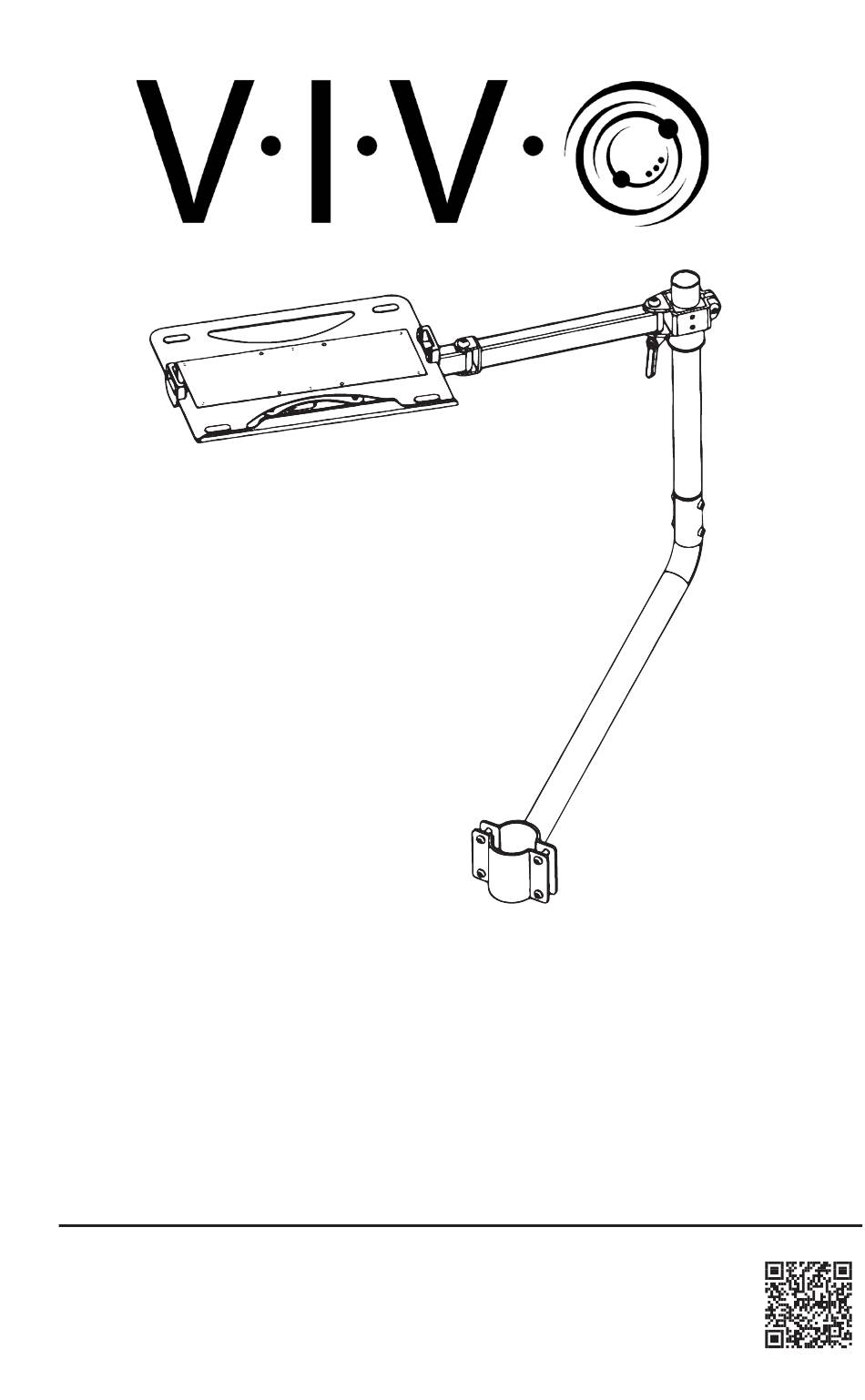

- Page 1 Office Chair Mounted Laptop Tray SKU: MOUNT-KB08CL Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-kb08cl...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Angled Support Vertical Support D (x1) E (x4) F (x1) Laptop Tray Pole Collar G (x1) Clamping Plate Included Hardware & Tools S-A (x4) S-B (x4) S-C (x4) T-A (x1) T-B (x1) M4x12mm M6x25mm M6x8mm... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Mount Angled Support (A) to the larger, lower portion of your chair’s gas spring pole, using Clamping Plate (G), M6x25mm Screws (S-B), and 4mm Allen Wrench (T-A). NOTE: This mount can fit pole diameters between 1.7” - 2” (44mm-51mm). - Page 5 STEP 2 Attach Vertical Support (B) to Angled Support (A) using M6x8mm Screws (S-C) and 4mm Allen Wrench (T-A).
- Page 6 STEP 3 Peel adhesive backing from Pads (E) and stick to the top of Laptop Tray (D) as shown. Secure the VESA Plate (C1) from Arm (C) to the back of Laptop Tray (D) using M4x12mm Screws (S-A) and the Phillips end of 5mm Allen Wrench (T-B). Positioning Note The Center Screw on VESA Plate (C1) should...
- Page 7 STEP 4 1. Slide the Pole Collar (F) onto the Vertical Support (B), at height you want the Laptop Tray to be for desired use. Then secure by tightening the adjustment lever on Pole Collar (F). 1. Slide the Arm (C) down the Vertical Support (B) so that it rests on top of the Pole Collar (F).
- Page 8 LAST UPDATED: 04/24/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
