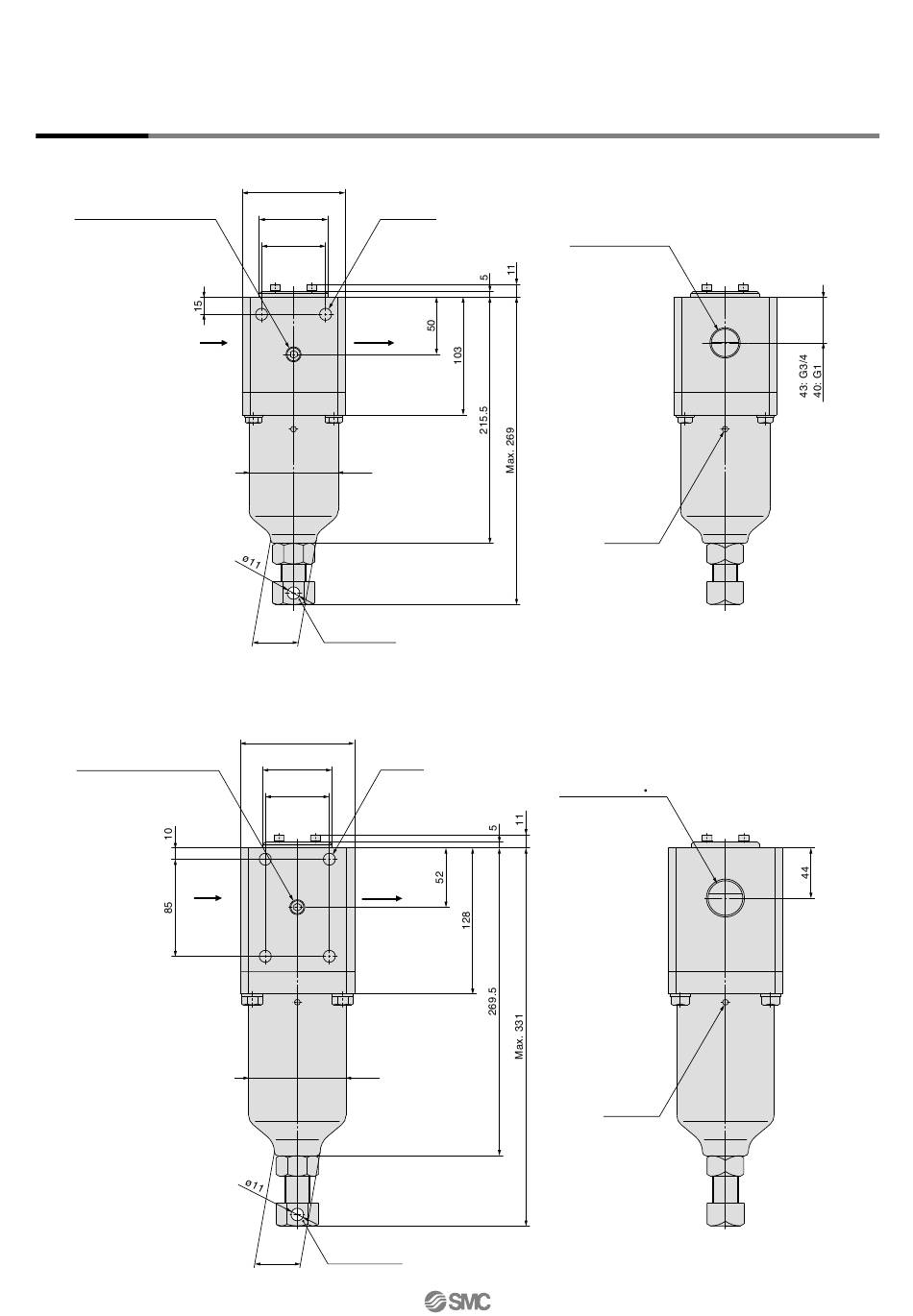

Dimensions
VCHR30
2 x Rc 1/4: with plug
Set pressure detection port
IN
VCHR40
2 x Rc 1/4: with plug
Set pressure detection port
IN
6.0 MPa Direct Operated Regulator
„90
ø60 2 x ø10.5
56
OUT
ø80
Adjusting bolt
ø40
„100
ø60
4 ø10.5
56
OUT
ø85
Adjusting bolt
ø40
Series
(Relieving Type)
Port size: G3/4, G1
Relief port
Port size: G1,G1 1/2
Relief port
VCHR
