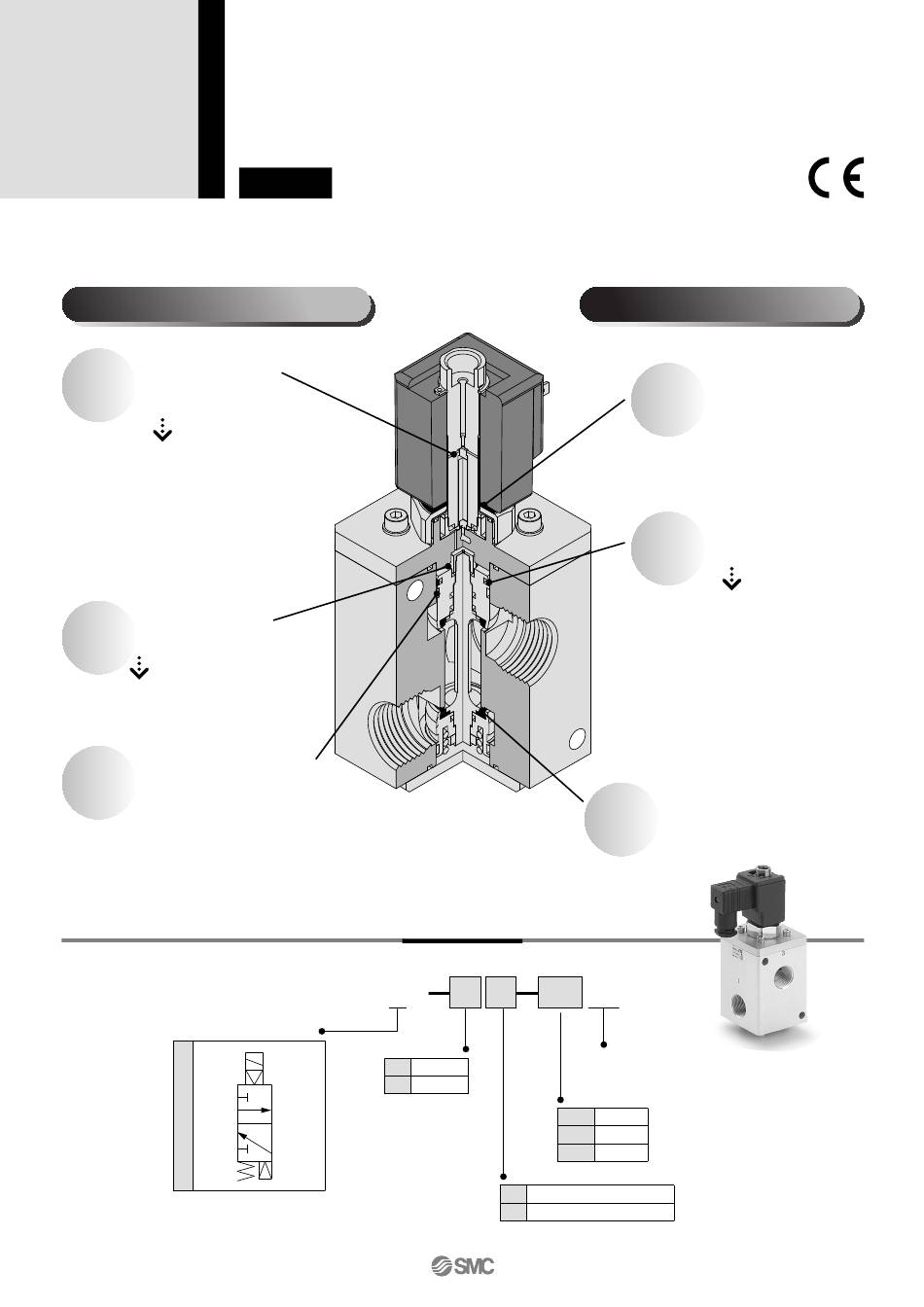

SMC Networks VCH41 Series Instruction Manual page 10

Series
Stable responsiveness
Response time variation within ±2 ms
Collision-proof construction
between the iron cores keeps
equipment free of abrassion.
Construction with reduced variation and
improved responsiveness when
switching off.
Improved durability by applying
a special surface treatment
to the sliding parts.
Unnecessary volume inside
the pilot chamber is reduced.
High speed response
with reduced variance
Uses NSF-H1-certified grease on
the guide ring (sliding part).
Special treatment containing
fluoro-resin is applied to the
body side sliding face.
1
3
1
7
5.0 MPa Pilot Operated 3 Port Solenoid Valve
For Air
How to Order
VCH410
Valve type
Voltage
5
6
∗ Consult with SMC
for other voltages.
CE marking
compliant products
are only available
2
with 50 VDC or less.
VCH400
Service life: 10 million cycles
5 D 06 G
24 VDC
12 VDC
Port size
04
06
10
Electrical entry
D DIN connector
DL DIN connector with light
∗ A surge voltage suppressor is integrated
inside the coil as a standard feature.
Use of shock absorbing rubber,
results in protection of the
pilot valve and electric parts.
A special fluoro-resin seal is
adopted for the sliding part.
Stable responsivess after
extended mactivity.
Less likely to subject to a
pressure changes.
Improved durability under a high
pressure environment is due to the
polyurethane elastomer poppet.
-Q
Thread type
(G thread for hydraulics and
pneumatics conforming to ISO1179-1)
1/2
3/4
1
