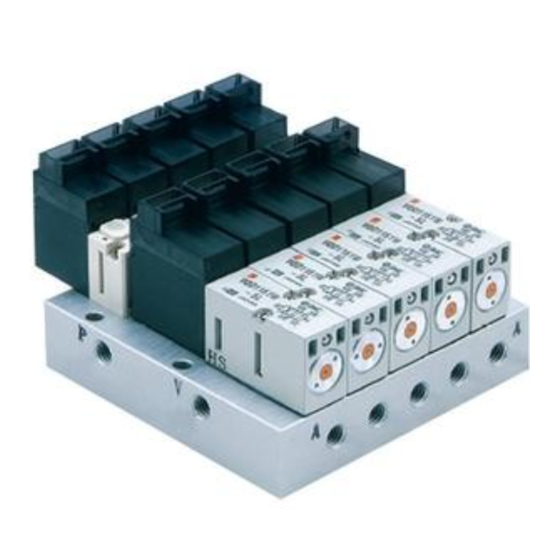

SMC Networks VQD1000-V Series Quick Start Manual

Series
Vacuum /
Release Unit
10-VQ110- -X46
(For charging release air)
Positive
pressure: P
(Release air)
Vacuum
pressure: V
(Suction air)
3
Nil 0.8 cm
L 3
3.2 cm
Note) Calculate and set the volume using the formula for the relationship
between pressure and the release air tank on page 1963.
Symbol
10-VQ110- -X46
(For charging release air)
Positive pressure
(Release air) P
Vacuum pressure
(Suction air) V
N.O.
Integral
tank
Connection port
(M5 or Rc 1/8 plug)
10-VQ110- -X46
(For charging release air)
Positive pressure
(Release air) P
Vacuum pressure
(Suction air) V
N.C.
Connection port
(M5 or Rc 1/8 plug)
1964
Vacuum / Release Unit

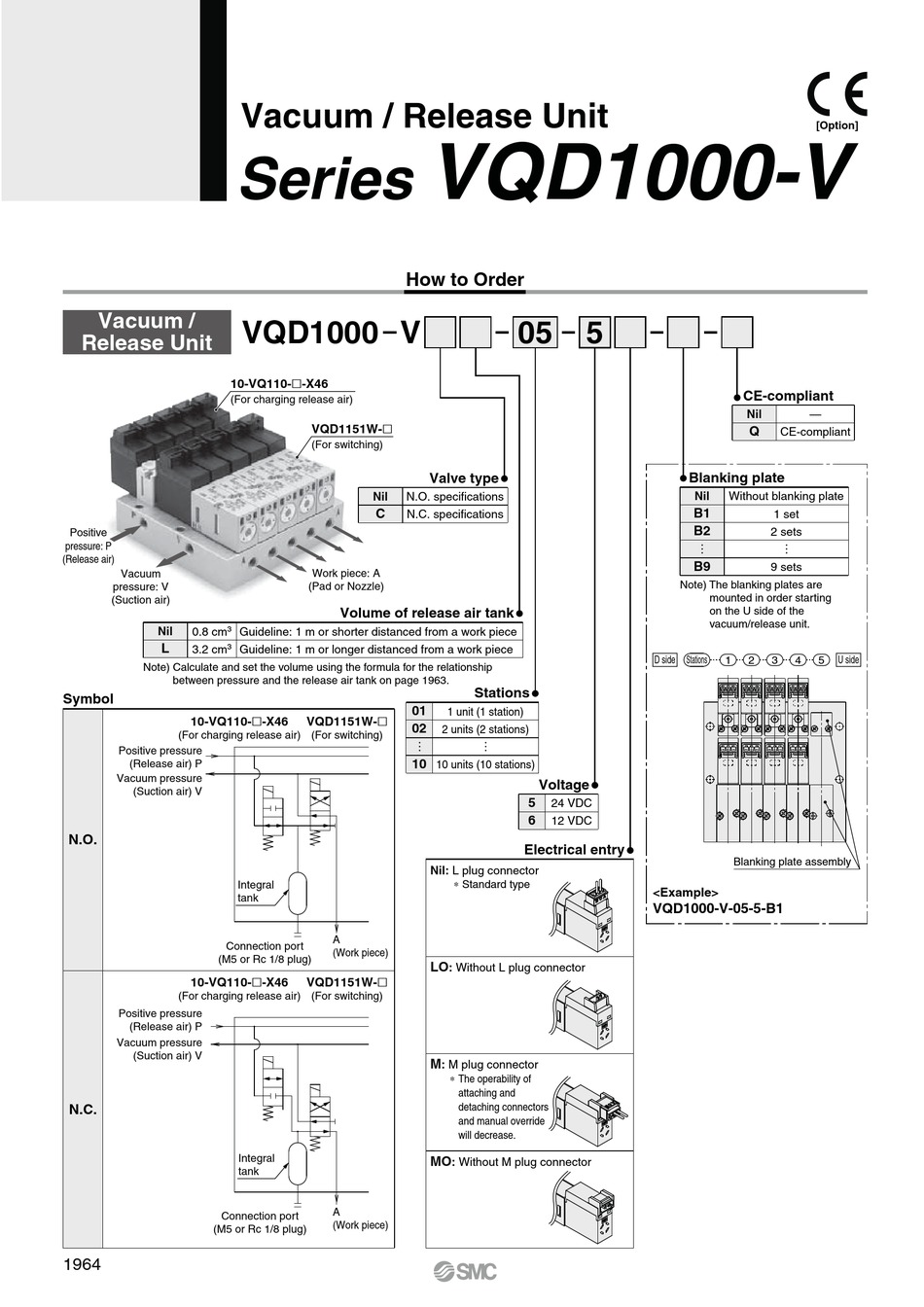

How to Order
VQD1000 V
VQD1151W-
(For switching)
Nil N.O. specifications
C
N.C. specifications
Work piece: A
(Pad or Nozzle)
Volume of release air tank
Guideline: 1 m or shorter distanced from a work piece
Guideline: 1 m or longer distanced from a work piece
01
VQD1151W-
02
(For switching)
10
A
(Work piece)
VQD1151W-
(For switching)
Integral
tank
A
(Work piece)
VQD1000-V
05 5
Valve type
Stations
1 unit (1 station)
2 units (2 stations)
10 units (10 stations)
Voltage
5
24 VDC
6
12 VDC
Electrical entry
Nil: L plug connector
Standard type
LO
: Without L plug connector
M
: M plug connector
The operability of
attaching and
detaching connectors
and manual override
will decrease.
MO
: Without M plug connector
[Option]
CE-compliant
Nil —
Q
CE-compliant
Blanking plate
Nil Without blanking plate
B1
1 set
B2
2 sets
B9
9 sets
Note) The blanking plates are
mounted in order starting
on the U side of the
vacuum/release unit.
D side Stations 1 2 3 4 5
Blanking plate assembly
<Example>
VQD1000-V-05-5-B1
Best Pneumatics 1 Ver.5
U side
