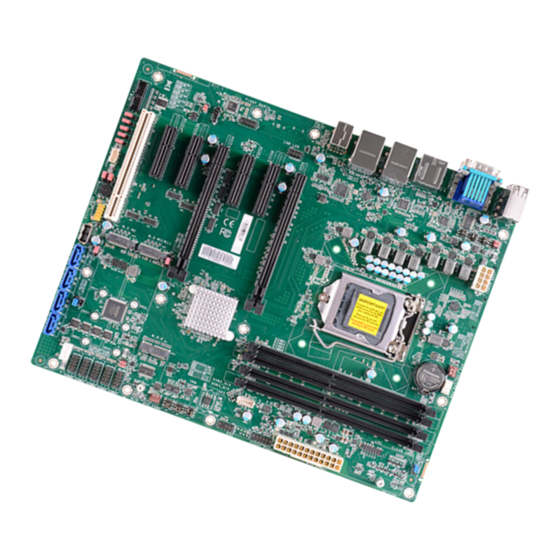

Atx industrial motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CMS632-W480E/Q470E
ATX Industrial Motherboard
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for DFI CMS632

Summary of Contents for DFI CMS632

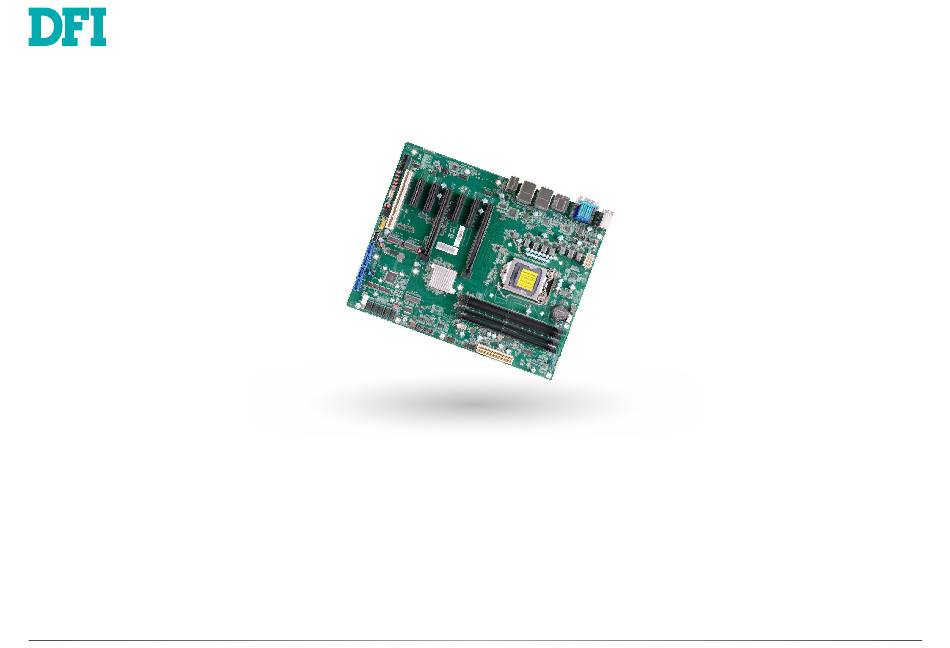

  • Page 1 CMS632-W480E/Q470E ATX Industrial Motherboard User’s Manual...
  • Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | CMS632-W480E/Q470E...

  • Page 3: Table Of Contents

    Overview ..........................32 Main ............................33 Advanced ..........................33 RC ACPI Configuration ....................34 CPU Configuration ......................34 Power & Performance ....................35 PCH-FW Configuration ....................35 Trusted Computing ......................38 NCT6126D Super IO Configuration ................39 Serial Port Console Redirection ...................41 USB Configuration ......................42 User's Manual | CMS632-W480E/Q470E...
  • Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | CMS632-W480E/Q470E...
  • Page 5 Memory module • Storage device such as a hard disk drive. • Power supply External system peripherals may also be required for navigation and display, including at least a keyboard, a mouse and a video display monitor. User's Manual | CMS632-W480E/Q470E...

  • Page 6: Chapter 1 - Introduction

    1 x M.2 2230 E Key (USB 2.0/PCIe x1) (opt.) AUDIO Audio Codec Realtek ALC888 ETHERNET Controller 1 x Intel ® I210AT PCIe (10/100/1000Mbps) ® 1 x Intel I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i9/ i7/i5 supports iAMT) User's Manual | CMS632-W480E/Q470E...
  • Page 7 Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled MECHANISM Dimensions ATX Form Factor 305mm (12") x 244mm (9.6") Height PCB: 1.6mm Top Side: 33.3mm, Bottom Side: 4mm CERTIFICATIONS Certifications CE, FCC Class B, RoHS, UKCA User's Manual | CMS632-W480E/Q470E...

  • Page 8: Pci Express Configuration

    Plug and Play peripherals. RTC Timer The Real Time Clock (RTC) installed on the system board allows your system to automatically power-on on the set date and time. User's Manual | CMS632-W480E/Q470E...
  • Page 9 Chapter 1 INTRODUCTION X Block Diagram User's Manual | CMS632-W480E/Q470E...

  • Page 10: Board Layout

    2230 (opt.) S/PDIF PCIe 5 (PCIe x4) M2JP1 COM2 COM3 PCIe 6 (PCIe x4) COM4 COM5 PCI 1 COM6 CN37 SOJ2 M2JP2 JP26 Buzzer SATA0 SATA1 SATA2 SATA3 Digital I/O JP11/12/13/14/15 USB2_11/12 USB2_14 M2JP3 M2JP4 Power User's Manual | CMS632-W480E/Q470E...

  • Page 11: System Memory

    Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. Features • Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC) • Dual Channel DDR4 2400/2666/2933MHz (ECC support: W480E only) User's Manual | CMS632-W480E/Q470E...

  • Page 12: Removing The Dimm Module

    Hold the card by its edges and remove it from the slot. The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 1 Step 2 Step 2 Step 3 Step 3 User's Manual | CMS632-W480E/Q470E...
  • Page 13 Align the 4 screw holes and tighten the heat sink up by inserting screws, DO remember to con- nect the fan cable on the board. (The location of fan connector may vary.) There are 4 screw holes around the CPU for the heat sink to be mounted. User's Manual | CMS632-W480E/Q470E...
  • Page 14 2. Put a jumper cap on pin 2 and pin 3. Wait for a few seconds and set it back to its de- fault setting, i.e. jumper cap on pin 1 and pin 2. 3. Plug the power cord and power-on the system. „ 1-2 On: Normal (default) „ 2-3 On: Clear CMOS Data User's Manual | CMS632-W480E/Q470E...
  • Page 15 JP2 must be set in accordance to JP3. When COM 2 RS232/422/485 is selected, JP6 and JP8 must be set in accordance to JP10. The pin functions of the COM ports will vary according to the jumpers’ setting. User's Manual | CMS632-W480E/Q470E...
  • Page 16 JP4 (for COM 1) and JP7 (for COM 2) are used to configure Serial COM ports to pure RS232 or RS232 with power. The pin functions of COM 1 and COM 2 will vary according to JP4’s and JP7’s setting respectively. User's Manual | CMS632-W480E/Q470E...
  • Page 17 JP15 is used to set DIO Power Voltage. JP11/12/13/14 is used to set DIO Power. „ JP11 (DIO 0~3 PWR) / JP12 (DIO 4~7 PWR) / JP13 (DIO 8~11 PWR) / JP14 (DIO 12~15 PWR) 1-2 On: 2-3 On: DIO PWR (default) User's Manual | CMS632-W480E/Q470E...
  • Page 18 PCI 1 CN37 Buzzer SOJ2 M2JP2 JP26 M2JP3 Buzzer M2JP4 Power M2JP3 M2JP4 Power JP23 is used to set PWM control. JP27 is used to set InnoAGE functions. „ JP27 Pins Signals INNOAGE_PCRST# INNOAGE_RECOV# INNOAGE_PWRLED# INNOAGE_HDDLED# INNOAGE_PWRBTN# User's Manual | CMS632-W480E/Q470E...
  • Page 19 M2JP1 and M2JP2 are used to control the power of M2CN1(M.2-M1) and M2CN2(M.2-M2). M2JP3 and M2JP4 are used to switch the signal output. M2JP3 M2JP4 1-2 On: 1-2 On: M2CN1 (PCIex4/SATA) M2CN2 (PCIex4) 2-3 On: 2-3 On: PCIE5 PCIE6 User's Manual | CMS632-W480E/Q470E...
  • Page 20 RJ45 LAN 1/2 • 1 HDMI port • 1 VGA port • RJ45 LAN 1/2 • 1 Line-in jack (optional) • 1 Line-out jack • 1 Mic-in jack • 1 COM 1 • 4 USB 2.0 User's Manual | CMS632-W480E/Q470E...
  • Page 21 4 x USB 2.0 rear ports (USB 7/8/9/10) • 2 x USB 3.2 Gen 2 internal ports (USB 5/6) • 2 x USB 2.0 internal ports, box headers (USB 11/12) • 1 x USB 2.0 internal ports, (USB 14) User's Manual | CMS632-W480E/Q470E...
  • Page 22 VGA port. After you plug the monitor’s cable connector into the VGA port, gen- SIN- SIN- Data- tly tighten the cable screws to hold the connector in place. DTR- DTR- DSR- DSR- RTS- RTS- CTS- CTS- User's Manual | CMS632-W480E/Q470E...
  • Page 23 Mic-in Jack (Pink) This jack is used to connect an external microphone. Front Audio The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of your system. User's Manual | CMS632-W480E/Q470E...

  • Page 24: Digital I/O Connector

    4 Serial ATA 3.0 ports with data transfer rate up to 6Gb/s DIO8 DIO9 • Integrated Advanced Host Controller Interface (AHCI) controller DIO10 DIO11 • Support RAID 0, RAID 1, RAID 5, RAID 10 DIO12 DIO13 DIO14 DIO15 User's Manual | CMS632-W480E/Q470E...

  • Page 25: Com (Serial) Ports

    COM6 CN37 SOJ2 M2JP2 JP26 Buzzer M2JP3 M2JP4 Power „ COM Port Pin Assignment RS232 RS422 RS232 RS485 with PWR Full Duplex DCD- +12V Data+ SIN- SIN- Data- DTR- DTR- DSR- DSR- RTS- RTS- CTS- CTS- User's Manual | CMS632-W480E/Q470E...

  • Page 26: Cooling Fan Connectors

    Insufficient power supplied to the system may result in instability or malfunction of the add-in boards and peripherals. Calculating the system’s approximate power Control usage is important to ensure that the power supply meets the system’s consump- tion requirements. User's Manual | CMS632-W480E/Q470E...

  • Page 27: Front Panel

    Power On Suspend) state, it will blink at 1-second intervals. When the system is in the S3 (STR - Suspend To RAM) state, it will blink at 4-second intervals. Power Button This button is used to switch the system's power on or off . User's Manual | CMS632-W480E/Q470E...

  • Page 28: Lpc Connector

    33MHz LPC bus clock. For more information about LPC bus refer KDAT MDAT to the Intel Low Pin Count Interface Specification Revision 1.1’. The table below indicates the ® pin functions of the LPC connector. Assignment Assignment L_AD1 RST# L_AD0 FRAME# VCC3 LAD3 LAD2 SERIRQ 5V5B User's Manual | CMS632-W480E/Q470E...

  • Page 29: Innoage Hdd Power

    W480E/Q470E M.2 E Key PCIe 4 (PCIe x16) 2230 (opt.) S/PDIF PCIe 5 (PCIe x4) M2JP1 PCIe 6 (PCIe x4) PCI 1 CN37 SOJ2 M2JP2 JP26 Buzzer M2JP3 M2JP4 Power „ Pin Assignment Assignment +12V_SATA 5V_SATA User's Manual | CMS632-W480E/Q470E...

  • Page 30: Expansion Slots

    Install PCI cards for other expansion demands. M.2 Socket The M.2 socket is the Next Generation Form Factor (NGFF) which is designed to support mul- tiple modules and make the M.2 more suitable in application for solid-state storage. User's Manual | CMS632-W480E/Q470E...

  • Page 31: Battery

    • There exists explosion hazard if the battery is incorrectly installed. the board when it’s correctly mounted. • Replace only with the same or equivalent type recommended by the manufacturer. • Dispose of used batteries according to local ordinances. User's Manual | CMS632-W480E/Q470E...

  • Page 32: Chapter 3 - Bios Settings

    “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | CMS632-W480E/Q470E...

  • Page 33: Advanced

    The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | CMS632-W480E/Q470E...
  • Page 34 Last State The system returns to the last state right before power failure. Note: Some of the fields may not be available when the features are not supported by the equipped CPU. User's Manual | CMS632-W480E/Q470E...
  • Page 35 Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and ME Unconfig on RTC Clear nothing is executing. When disabled, ME will not be unconfigured on RTC Clear. Note: The sub-menus are detailed in following sections. User's Manual | CMS632-W480E/Q470E...
  • Page 36 Version 2.22.1282. Copyright (C) 2022 AMI USB Provisioning of AMT Secure Erase Mode Enable or disable AMT USB Provisioning. Select Secure Erase module behavior: Simulated or Real. Force Secure Erase Enable or disable Force Secure Erase on next boot. User's Manual | CMS632-W480E/Q470E...
  • Page 37 This field is used to enable or disable the ME FW Image Re-Flash function, which allows the ration. user to update the ME firmware. Unconfigure ME Enable or disable to unconfigure ME with resetting MEBx password to default. User's Manual | CMS632-W480E/Q470E...
  • Page 38 This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | CMS632-W480E/Q470E...
  • Page 39 WatchDog Timer Unit Select WatchDog Timer Unit — Second or Minute. SuperIO WatchDog Timer Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. Note: The sub-menus are detailed in following sections. User's Manual | CMS632-W480E/Q470E...
  • Page 40 ▼ SYS Smart Fan/CPU Smart Fan Control = [Disabled] Fix Fan Speed Count Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will al- ways operate at the specified speed regardless of gauged temperatures. User's Manual | CMS632-W480E/Q470E...
  • Page 41 Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. Flow Control is for RS485 mode and is only supported by Serial Port 1 (COM1). User's Manual | CMS632-W480E/Q470E...

  • Page 42: Usb Configuration

    Keep USB devices available only for EFI applications. Auto Disable Legacy support if no USB devices are connected. XHCI Hand-off Enable or disable XHCI Hand-off. USB Mass Storage Driver Support Enable or disable USB Mass Storage Driver Support. User's Manual | CMS632-W480E/Q470E...
  • Page 43 This field controls the execution of UEFI and Legacy Storage OpROM. Video This field controls the execution of UEFI and Legacy Video OpROM. Other PCI devices This field determines OpROM execution policy for devices other than Network, Storage or Video. User's Manual | CMS632-W480E/Q470E...
  • Page 44 Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | CMS632-W480E/Q470E...
  • Page 45 Please select a submenu and press Enter. The submenus are detailed in the following pages. Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | CMS632-W480E/Q470E...
  • Page 46 Enable or disable the root port, or select "Auto" for auto-detection. Enable or disable this field to detect non-compliance PCIe devices in the PEG. Max Link Speed Configure PCIE2/PCIE4 port’s Max Speed: Auto, Gen1, Gen2 or Gen3. User's Manual | CMS632-W480E/Q470E...
  • Page 47 Non-compliant device detection. Control Iommu Pre-boot Behavior Enable dTBT and PCH USB topology IOMMU in Pre-boot environment. DMA Control Guarantee Enable or disable DMA_Control_Guarantee bit. Hybrid Storage Mode Enable or disable Dynamic Configuration for Hybrid Storage Device. User's Manual | CMS632-W480E/Q470E...
  • Page 48 This field shows up when SATA Mode Selection is set to Intel RST Premium With Intel Optane System Acceleration. Enable or disable to use RST Legacy OROM when CSM is enabled. Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | CMS632-W480E/Q470E...
  • Page 49 Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | CMS632-W480E/Q470E...
  • Page 50 Refer to the Advanced > CSM Configuration submenu for more information. This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | CMS632-W480E/Q470E...
  • Page 51 When the BIOS IC needs to be replaced, you have to populate it properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not. User's Manual | CMS632-W480E/Q470E...
  • Page 52 Combination of RAID 0 (data striping) RAID 10 Stripe (not same mirror) and RAID 1 (mirroring) Extends capacity to the sum of total SPAN None drives, the second drive won't be used until the first one is full. User's Manual | CMS632-W480E/Q470E...
  • Page 53 2. Press <Y> to confirm the process. 5. Relevant information will appear with the message "Mode change is completed." on bot- tom. 3. Wait the process to start, the whole process takes about several seconds depends on the volume amounts. User's Manual | CMS632-W480E/Q470E...
  • Page 54 Chapter 4 Chapter 4 Chapter 4 RAID SETTINGS RAID SETTINGS RAID SETTINGS Other RAID modes follow the same procedure as well. User's Manual | CMS632-W480E/Q470E...
