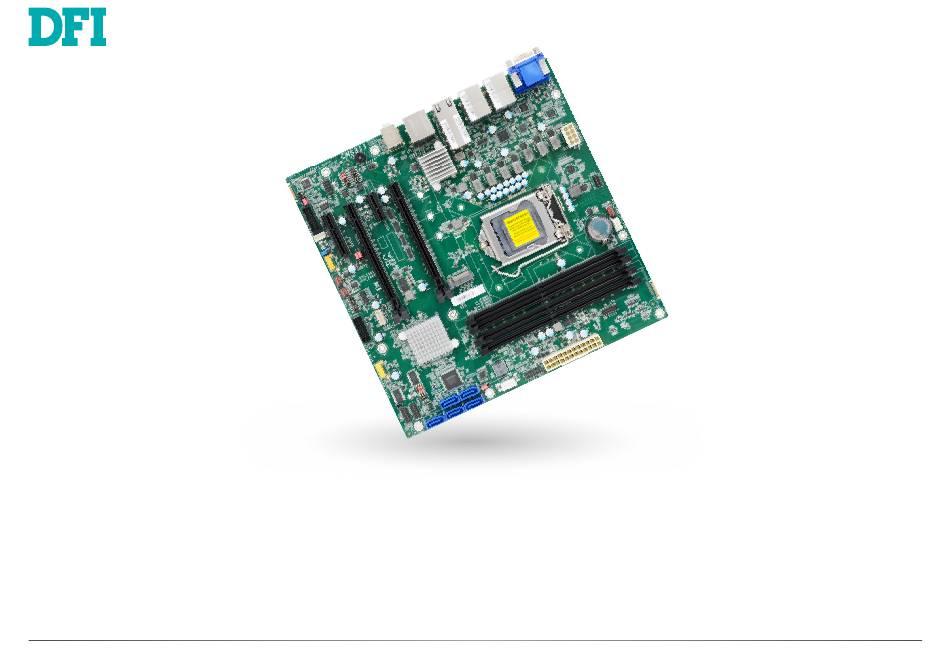

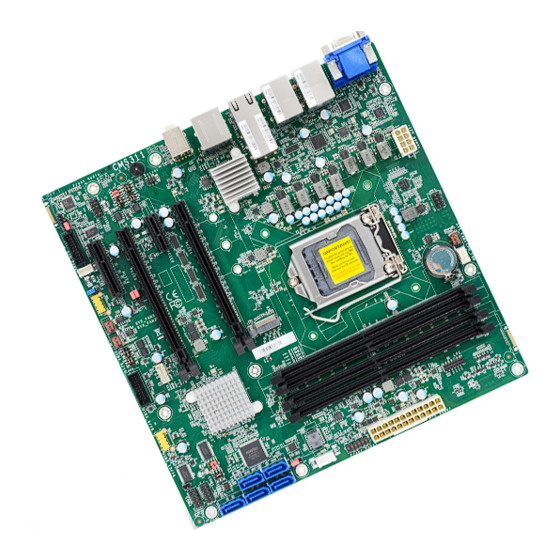

- Page 1 CMS311-W480E/Q470E microATX Industrial Motherboard User’s Manual...
- Page 2 The changes or modifications not expressly approved by the party responsible for are the properties of the respective owners. compliance could void the user’s authority to operate the equipment. • Shielded interface cables must be used in order to comply with the emission limits. User's Manual | CMS311-W480E/Q470E...
-
Page 3: Table Of Contents
Main ............................33 Advanced ..........................33 RC ACPI Configuration ....................34 CPU Configuration ......................34 Power & Performance ....................35 PCH-FW Configuration ....................35 Trusted Computing ......................38 NCT6126D Super IO Configuration ................39 Serial Port Console Redirection ...................41 USB Configuration ......................42 CSM Configuration ......................43 User's Manual | CMS311-W480E/Q470E... - Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | CMS311-W480E/Q470E...
- Page 5 The board and accessories in the package may not come similar to the information listed above. This may differ in accordance with the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative. User's Manual | CMS311-W480E/Q470E...
-
Page 6: Chapter 1 - Introduction
5 x SATA 3.0 (up to 6Gb/s), RAID 0/1/5/10 1 x 16-bit DIO 1 x LPC SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security Infineon TPM2.0 (opt., MOQ required) User's Manual | CMS311-W480E/Q470E... - Page 7 Operating: 5 to 95% RH Storage: 5 to 95% RH MTBF Mechanism Dimensions micro ATX Form Factor 244mm (9.6") x 244mm (9.6") Height PCB: 1.6mm Top Side: TBD Bottom Side: TBD Certifications Certifications CE, FCC Class B, RoHS User's Manual | CMS311-W480E/Q470E...
-
Page 8: Features
This function allows you to use a USB keyboard or USB mouse to wake up a system from the The Real Time Clock (RTC) installed on the system board allows your system to automatically S3 (STR - Suspend To RAM) state. power-on on the set date and time. User's Manual | CMS311-W480E/Q470E... -
Page 9: Block Diagram
10G LAN 4 SPI BIOS S/PDIF SMBus TCA6416 DIO 16-bit Front Audio Realtek Audio Jack ALC888 SMBus (Line-out/Mic-in/Line-in (opt.)) LPC Header TPM 2.0 Super IO with WDT RS232/422/485 2x Fan Control H/W Monitor Case Open MECHANICAL DRAWING User's Manual | CMS311-W480E/Q470E 243.84... -
Page 10: Chapter 2 - Hardware Installation
(left/right) Intel PCIE3 (PCIe x16) SATA2/3 W480E/Q470E (left/right) JP13/11 USB3 Gen2 PCIE4 (PCIe x4) (up to down) Front JP24 (USB 5/6) Audio JP10/8 JP25 (left to right) SOJ2 S/PDIF USB2_11/12 USB2_13/14 COM1/2 USB3_9/10 (top to bottom) User's Manual | CMS311-W480E/Q470E... -
Page 11: System Memory
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. Features • Four 288-pin DIMM up to 128GB • Dual Channel DDR4 2400/2666/2933 MHz (ECC support: W480E only) User's Manual | CMS311-W480E/Q470E... -
Page 12: Removing The Dimm Module
Hold the card by its edges and remove it from the slot. The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 1 Step 2 Step 2 Step 3 Step 3 User's Manual | CMS311-W480E/Q470E... -
Page 13: Cpu
Align the 4 screw holes and tighten the heat sink up by inserting screws, DO remember to con- nect the fan cable on the board. (The location of fan connector may vary.) There are 4 screw holes around the CPU for the heat sink to be mounted. User's Manual | CMS311-W480E/Q470E... -
Page 14: Jumper Settings
2. Put a jumper cap on pin 2 and pin 3. Wait for a few seconds and set it back to its default setting, i.e. jumper cap on pin 1 and pin 2. • 3. Plug the power cord and power-on the system. Clear CMOS Data Normal (default) 1-2 On Clear CMOS Data 2-3 On User's Manual | CMS311-W480E/Q470E... -
Page 15: Com1/Com2 Rs232/422/485 And Power Select
JP4 (for COM 1) is used to configure Serial COM ports to pure RS232 or RS232 with power. The pin functions of COM 1 vary according to JP4’s setting respectively. COM 2 uses JP7 for power select. User's Manual | CMS311-W480E/Q470E... -
Page 16: At/Atx Mode - Jp26
JP24 (USB 5/6) Audio JP10/8 JP25 (left to right) SOJ2 S/PDIF USB2_11/12 USB2_13/14 COM1/2 USB3_9/10 (top to bottom) JP26 is used to switch between AT/ATX Mode. AT/ATX Mode JP26 GND (default) 1-2 On 3V3SB 2-3 On User's Manual | CMS311-W480E/Q470E... -
Page 17: Usb Power Control - Jp25
JP24 Audio (USB 5/6) JP10/8 JP25 (left to right) SOJ2 S/PDIF USB2_11/12 USB2_13/14 COM1/2 USB3_9/10 (top to bottom) JP25 is used to determine the USB power. USB 3 Power Select JP25 5VDU 1-2 On 2-3 On User's Manual | CMS311-W480E/Q470E... -
Page 18: Rear I/O Ports
Chapter 2 HARDWARE INSTALLATION X Rear I/O Ports User's Manual | CMS311-W480E/Q470E... -
Page 19: Usb Ports
USB port cables to a connector. Wake-On-USB Keyboard/Mouse The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. User's Manual | CMS311-W480E/Q470E... -
Page 20: Graphics Interfaces
(left/right) Intel PCIE3 (PCIe x16) SATA2/3 (left/right) W480E/Q470E JP13/11 USB3 Gen2 PCIE4 (PCIe x4) (up to down) Front JP24 Audio (USB 5/6) JP10/8 JP25 (left to right) SOJ2 S/PDIF USB2_11/12 USB2_13/14 COM1/2 USB3_9/10 (top to bottom) User's Manual | CMS311-W480E/Q470E... -
Page 21: Lan Ports
The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of your system. Front Audio (AUJ2) Assignment Assignment Mic2-L Mic2-R N.C. Line2-R Mic2-JD Line2-L Line2-JD User's Manual | CMS311-W480E/Q470E... -
Page 22: Internal I/O Connectors
5 Serial ATA 3.0 ports with data transfer rate up to 6Gb/s D_IOA4_C D_IOA12_C • Integrated Advanced Host Controller Interface (AHCI) controller D_IOA5_C D_IOA13_C • Support RAID 0, RAID 1, RAID 5, RAID 10 D_IOA6_C D_IOA14_C D_IOA7_C D_IOA15_C User's Manual | CMS311-W480E/Q470E... -
Page 23: Com (Serial) Ports
COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector. User's Manual | CMS311-W480E/Q470E... -
Page 24: Cooling Fan Connectors
Insufficient power supplied to the system may result in instability or malfunction CTRL of the add-in boards and peripherals. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consump- tion requirements. User's Manual | CMS311-W480E/Q470E... -
Page 25: Front Panel
Power On Suspend) state, it will blink at 1-second intervals. When the system is in the S3 (STR - Suspend To RAM) state, it will blink at 4-second intervals. Power Button This button is used to switch the system's power on or off . User's Manual | CMS311-W480E/Q470E... -
Page 26: Lan Led Connector
S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector. LAN LED (ETJ2, optional) S/PDIF (AUJ1) Assignment Assignment Assignment Assignment GBE_LED_1000- GBE_LED_100- GBE_LED_LINK_ACT- 3V3DU SPIN LINK_1000_2 LINK_100_2 SPOUT LINK_ACTIVITY_2 3V3DU User's Manual | CMS311-W480E/Q470E... -
Page 27: Smbus Connector
Low Pin Count Interface Specification Revision 1.1’. The table below indicates the ® pin functions of the LPC connector. Assignment Assignment 3V3DU LPC (J21) SMB_DATA_ SMB_CLK_RESUME RESUME Assignment Assignment SMBALERT_PCH- LAD1 RST# LAD0 FRAME# VCC3 LAD3 GND1 LAD2 SERIRQ GND2 5VSB User's Manual | CMS311-W480E/Q470E... -
Page 28: Chassis Intrusion Connector
(left to right) SOJ2 SOJ2 S/PDIF USB2_11/12 USB2_13/14 S/PDIF COM1/2 USB3_9/10 (top to bottom) USB2_11/12 USB2_13/14 COM1/2 USB3_9/10 (top to bottom) InnoAGE HDR1 (JP24) Case Open (SOJ2) Assignment Assignment Assignment Assignment PCRST# RECOV# CASEOPEN- PWRLED# HDDLED# PWRBTN# User's Manual | CMS311-W480E/Q470E... -
Page 29: Innoage Hddpwr
W480E/Q470E JP13/11 USB3 Gen2 PCIE4 (PCIe x4) (up to down) Front JP24 (USB 5/6) Audio JP10/8 JP25 (left to right) SOJ2 S/PDIF USB2_11/12 USB2_13/14 COM1/2 USB3_9/10 (top to bottom) InnoAGE HDDPWR (CN37) Assignment Assignment +12V_SATA 5V_SATA User's Manual | CMS311-W480E/Q470E... -
Page 30: Expansion Slots
Install PCI Express cards such as network cards or other expansion cards M.2 Socket The M.2 socket is the Next Generation Form Factor (NGFF) which is designed to support mul- tiple modules and make the M.2 more suitable in application for solid-state storage. User's Manual | CMS311-W480E/Q470E... -
Page 31: Battery
• There exists explosion hazard if the battery is incorrectly installed. mounted. • Replace only with the same or equivalent type recommended by the manufacturer. • Dispose of used batteries according to local ordinances. User's Manual | CMS311-W480E/Q470E... -
Page 32: Chapter 3 - Bios Settings
“Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. User's Manual | CMS311-W480E/Q470E... -
Page 33: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | CMS311-W480E/Q470E... -
Page 34: Rc Acpi Configuration
• Last State The system returns to the last state right before power failure. Note: Some of the fields may not be available when the features are not supported by the equipped CPU. User's Manual | CMS311-W480E/Q470E... -
Page 35: Power & Performance
Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and ME Unconfig on RTC Clear nothing is executing. When disabled, ME will not be unconfigured on RTC Clear. Note: The sub-menus are detailed in following sections. User's Manual | CMS311-W480E/Q470E... - Page 36 Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc. USB Provisioning of AMT Secure Erase Mode Enable or disable AMT USB Provisioning. Select Secure Erase module behavior: Simulated or Real. Force Secure Erase Enable or disable Force Secure Erase on next boot. User's Manual | CMS311-W480E/Q470E...
- Page 37 This field is used to enable or disable the ME FW Image Re-Flash function, which allows the ration. user to update the ME firmware. Unconfigure ME Enable or disable to unconfigure ME with resetting MEBx password to default. User's Manual | CMS311-W480E/Q470E...
-
Page 38: Trusted Computing
This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | CMS311-W480E/Q470E... -
Page 39: Nct6126D Super Io Configuration
WatchDog Timer Unit Select WatchDog Timer Unit — Second or Minute. SuperIO WatchDog Timer Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. Note: The sub-menus are detailed in following sections. User's Manual | CMS311-W480E/Q470E... - Page 40 ▼ SYS Smart Fan/CPU Smart Fan Control = [Disabled] Fix Fan Speed Count Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will al- ways operate at the specified speed regardless of gauged temperatures. User's Manual | CMS311-W480E/Q470E...
-
Page 41: Serial Port Console Redirection
Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. Flow Control is for RS485 mode and is only supported by Serial Port 1 (COM1). User's Manual | CMS311-W480E/Q470E... -
Page 42: Usb Configuration
Keep USB devices available only for EFI applications. • Auto Disable Legacy support if no USB devices are connected. XHCI Hand-off Enable or disable XHCI Hand-off. USB Mass Storage Driver Support Enable or disable USB Mass Storage Driver Support. User's Manual | CMS311-W480E/Q470E... -
Page 43: Csm Configuration
This field controls the execution of UEFI and Legacy Storage OpROM. Video This field controls the execution of UEFI and Legacy Video OpROM. Other PCI devices This field determines OpROM execution policy for devices other than Network, Storage or Video. User's Manual | CMS311-W480E/Q470E... -
Page 44: Network Stack Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | CMS311-W480E/Q470E... -
Page 45: Intel(R) Ethernet Controller X550
F10: Save & Exit ESC: Exit Version 2.21.1278. Copyright (C) 2021 AMI Firmware Image Properties View device firmware information NIC Configuration Configure network interface port. Blink LEDs Blink LEDs for a duration up to 15 seconds. User's Manual | CMS311-W480E/Q470E... -
Page 46: Chipset
Please select a submenu and press Enter. The submenus are detailed in the following pages. Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | CMS311-W480E/Q470E... -
Page 47: Peg Port Configuration
Enable or disable the root port, or select "Auto" for auto-detection. Enable or disable this field to detect non-compliance PCIe devices in the PEG. Max Link Speed Configure PCIE2/PCIE4 port’s Max Speed: Auto, Gen1, Gen2 or Gen3. User's Manual | CMS311-W480E/Q470E... -
Page 48: Pch-Io Configuration
Enable or disable this field to detect non-compliance PCIe devices in the PEG. This field may not appear when the port does not support Non-compliant device detection. VT-d capability. DMA Control Guarantee Enable or disable DMA_Control_Guarantee bit. Hybrid Storage Mode Enable or disable Dynamic Configuration for Hybrid Storage Device. User's Manual | CMS311-W480E/Q470E... -
Page 49: Sata And Rst Configuration
This field shows up when SATA Mode Selection is set to Intel RST Premium With Intel Optane System Acceleration. Enable or disable to use RST Legacy OROM when CSM is enabled. Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | CMS311-W480E/Q470E... -
Page 50: Security
Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | CMS311-W480E/Q470E... -
Page 51: Boot
Refer to the Advanced > CSM Configuration submenu for more information. This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | CMS311-W480E/Q470E... -
Page 52: Updating The Bios
When the BIOS IC needs to be replaced, you have to populate it properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not. User's Manual | CMS311-W480E/Q470E... -
Page 53: Chapter 4 - Raid
Combination of RAID 0 (data striping) RAID 10 Stripe (not same mirror) and RAID 1 (mirroring) Extends capacity to the sum of total SPAN None drives, the second drive won't be used until the first one is full. User's Manual | CMS311-W480E/Q470E... - Page 54 2. Press <Y> to confirm the process. 5. Relevant information will appear with the message "Mode change is completed." on bot- tom. 3. Wait the process to start, the whole process takes about several seconds depends on the volume amounts. User's Manual | CMS311-W480E/Q470E...
- Page 55 Chapter 4 Chapter 4 RAID SETTINGS RAID SETTINGS Other RAID modes follow the same procedure as well. User's Manual | CMS311-W480E/Q470E...
