DFI CMS330-Q470E User Manual

DFI CMS330-Q470E User Manual

Microatx industrial motherboard

Advertisement

Quick Links

CMS330-Q470E/H420E
microATX Industrial Motherboard
User's Manual
ver.1_-_7-1321_23-15

Advertisement

Table of Contents
loading

Summary of Contents for DFI CMS330-Q470E

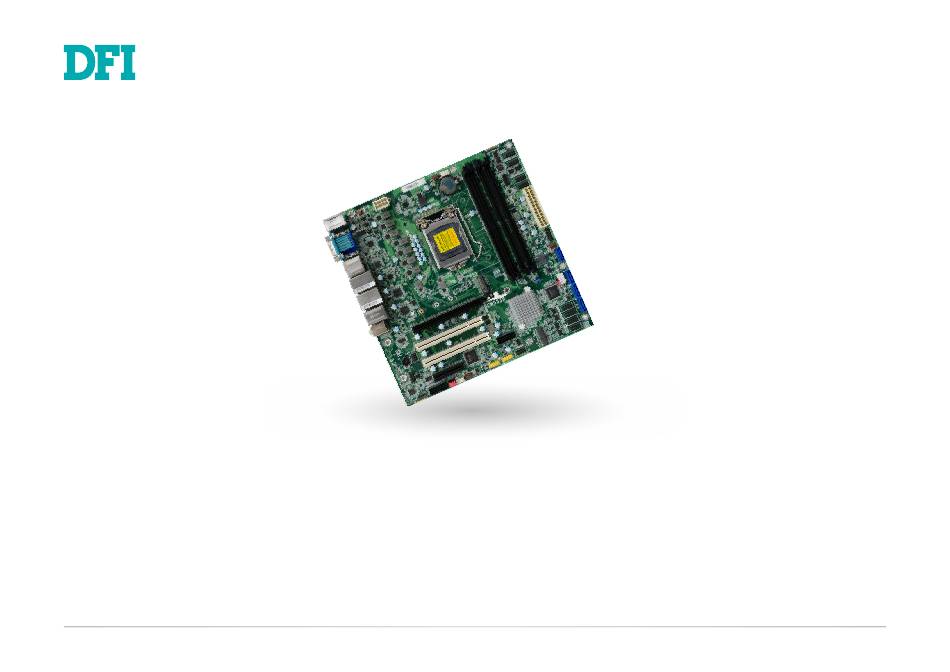

  • Page 1 CMS330-Q470E/H420E microATX Industrial Motherboard User’s Manual ver.1_-_7-1321_23-15...
  • Page 2 The changes or modifications not expressly approved by the party responsible for are the properties of the respective owners. compliance could void the user’s authority to operate the equipment. • Shielded interface cables must be used in order to comply with the emission limits. User's Manual | CMS330-Q470E/H420E...
  • Page 3: Table Of Contents

    Main ............................34 Advanced ..........................34 RC ACPI Configuration ....................35 CPU Configuration ......................35 Power & Performance ....................36 PCH-FW Configuration ....................36 Trusted Computing ......................39 NCT6126D Super IO Configuration ................40 NCT5114D Super IO Configuration ................42 Serial Port Console Redirection ...................43 User's Manual | CMS330-Q470E/H420E...
  • Page 4 • To reduce the risk of electric shock, unplug the power cord before removing the sys- tem chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. User's Manual | CMS330-Q470E/H420E...
  • Page 5 Thermal solution (For 95W/125W, Height: 69.3mm) 761-103001-000G DP to HDMI Dongle 612-D2H13M-000G I/O shield (opt. for 4 x USB 2.0) A49-CMS330-000G M.2-COM4 (M.2 serial port module) 770-M2COM1-000G M.2-2LAN (M.2 LAN port module) 770-M22LN1-000G M.2-2PSE (M.2 PSE module) 770-M22PS1-000G User's Manual | CMS330-Q470E/H420E...
  • Page 6: Chapter 1 - Introduction

    1 x RS-232/422/485 (RS-232 w/ power) (DB-9) 2 x USB 3.2 (Q470E: Gen2; H420E: Gen1) 2 x USB 3.2 Gen1 (Q470E: Up to 6 x USB 3.2 Gen1, MOQ required) 2 x USB 2.0 User's Manual | CMS330-Q470E/H420E Display 1 x VGA 1 x DP++...
  • Page 7 24-pin ATX power Consumption Typical: i9-10900K: 3.3V @ 0.36A (1.19W); 5V @ 1.02A (5.1W); 12V @ 3.8A (45.6W) Max.: i9-10900K:3.3V @ 0.38A (1.25W); 5V @ 1.82A (9.1W); 12V @ 15.64A (187.68W) RTC Battery CR2032 Coin Cell www.dfi.com User's Manual | CMS330-Q470E/H420E...
  • Page 8: Features

    Plug and Play peripherals. RTC Timer The Real Time Clock (RTC) installed on the system board allows your system to automatically power-on on the set date and time. User's Manual | CMS330-Q470E/H420E...
  • Page 9: Block Diagram

    SPI BIOS SMBus DIO 16-bit TCA6416 LPC Header SMBus TPM 2.0 (opt.) USB 2.0 Super IO PS/2 KB/MS with WDT USB 2.0 2x Fan Control H/W Monitor RS232/422/485 1x Case Open RS232 9x MECHANICAL DRAWING 233.68 227.33 User's Manual | CMS330-Q470E/H420E...
  • Page 10: Chapter 2 - Hardware Installation

    PCIE2 (PCIe x4) Front Audio M.2 E Key USB 11/12 2230 DIO Power SYS FAN3 (USB 2.0) Note COM 6 S/PDIF JP13/11/25 Digital I/O (DIO) COM2/3/4/5 USB 9/10 (USB 2.0) (left to right) (top to bottom) User's Manual | CMS330-Q470E/H420E...
  • Page 11: System Memory

    Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. Features • Four 288-pin DIMM up to 128GB (Q470E) / Two 288-pin DIMM up to 64GB (H420E) • Dual Channel DDR4 2400/2666/2933 MHz User's Manual | CMS330-Q470E/H420E...
  • Page 12: Removing The Dimm Module

    Hold the card by its edges and remove it from the slot. The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 1 Step 2 Step 2 Step 3 Step 3 User's Manual | CMS330-Q470E/H420E...
  • Page 13: Cpu

    Align the 4 screw holes and tighten the heat sink up by inserting screws, DO remember to con- nect the fan cable on the board. (The location of fan connector may vary.) There are 4 screw holes around the CPU for the heat sink to be mounted. User's Manual | CMS330-Q470E/H420E...
  • Page 14: Jumper Settings

    2. Put a jumper cap on pin 2 and pin 3. Wait for a few seconds and set it back to its default setting, i.e. jumper cap on pin 1 and pin 2. • 3. Plug the power cord and power-on the system. „ 1-2 On: Normal (default) „ 2-3 On: Clear CMOS Data User's Manual | CMS330-Q470E/H420E...
  • Page 15: Com1/Com2 Rs232/422/485 Select

    (top to bottom) JP1/JP2/JP3 (for COM 1) are used to configure the COM ports to RS232, RS422 (Full Duplex) or RS485. When COM 1 RS232/422/485 is selected, JP1 and JP2 must be set in accordance to JP3. User's Manual | CMS330-Q470E/H420E...
  • Page 16: Com1 Rs232 Power Select

    The pin functions of COM 1 vary according to JP4’s setting respectively. „ JP4 (COM 1) 2 4 6 2 4 6 1 3 5 1 3 5 1-3, 2-4 On: 3-5, 4-6 On: RS232 (default) RS232 with power User's Manual | CMS330-Q470E/H420E...
  • Page 17: At/Atx Mode - Jp26

    USB 11/12 2230 DIO Power SYS FAN3 (USB 2.0) Note COM 6 S/PDIF JP13/11/25 Digital I/O (DIO) USB 9/10 (USB 2.0) COM2/3/4/5 (left to right) (top to bottom) JP26 is used to switch between AT/ATX Mode. User's Manual | CMS330-Q470E/H420E...
  • Page 18: Usb Power Control - Jp25

    USB 11/12 2230 (USB 2.0) DIO Power SYS FAN3 Note COM 6 JP25 S/PDIF JP13/11/25 Digital I/O (DIO) USB 9/10 (USB 2.0) COM2/3/4/5 (left to right) (top to bottom) JP25 is used to determine the USB power. User's Manual | CMS330-Q470E/H420E...
  • Page 19: Rear I/O Ports

    • 1 VGA port • 1 DP++ • 1 HDMI port • RJ45 LAN 1/2 • 2 USB 3.2 Gen2 ports • 6 USB 3.2 Gen 1 ports • 1 Line-out jack • 1 Mic-in jack User's Manual | CMS330-Q470E/H420E...
  • Page 20: Usb Ports

    S3 (STR - Suspend To RAM) state. • 2 x USB 3.2 Gen 1 internal ports, box headers (USB3 5/6) • 4 x USB 2.0 internal ports (USB2 9/10/11/12) • 2 x USB 2.0 rear ports (USB2 7/8) User's Manual | CMS330-Q470E/H420E...
  • Page 21: Graphics Interfaces

    PCIE2 (PCIe x4) Front Audio M.2 E Key USB 11/12 2230 DIO Power SYS FAN3 (USB 2.0) Note COM 6 S/PDIF Digital I/O (DIO) JP13/11/25 COM2/3/4/5 USB 9/10 (USB 2.0) (left to right) (top to bottom) User's Manual | CMS330-Q470E/H420E...
  • Page 22: Rj45 Lan Ports

    This jack is used to connect an external microphone. work hub. Front Audio The front audio connector allows you to connect to the second line-out and mic-in jacks that are at the front panel of your system. User's Manual | CMS330-Q470E/H420E...
  • Page 23: Com 1

    (top to bottom) Features The pin functions of COM 1 port will vary according to setting of JP1, JP2, JP3 and JP4. Refer to “COM1 RS232/422/485 Select” and “COM1 RS232/Power Select” in this chapter for more information. User's Manual | CMS330-Q470E/H420E...
  • Page 24: Internal I/O Connectors

    4 Serial ATA 3.0 ports with data transfer rate up to 6Gb/s D_IOA5_C D_IOA13_C • Integrated Advanced Host Controller Interface (AHCI) controller D_IOA6_C D_IOA14_C • Support RAID 0, RAID 1, RAID 5, RAID 10 D_IOA7_C D_IOA15_C User's Manual | CMS330-Q470E/H420E...
  • Page 25: Com (Serial) Ports

    (top to bottom) COM 2/3/4/5 from top to bottom „ COM Port Pin Assignment RS232 RS232 RS422 RS485 with PWR DCD- +12V TXD- Data- SIN- TXD+ Data+ RXD+ DTR- DTR- RXD- DSR- DSR- RTS- RTS- CTS- CTS- User's Manual | CMS330-Q470E/H420E...
  • Page 26: Cooling Fan Connectors

    Insufficient power supplied to the system may result in instability or malfunction of the add-in boards and peripherals. Calculating the system’s approximate power Control usage is important to ensure that the power supply meets the system’s consump- tion requirements. User's Manual | CMS330-Q470E/H420E...
  • Page 27: Front Panel

    Power On Suspend) state, it will blink at 1-second intervals. When the system is in the S3 (STR - Suspend To RAM) state, it will blink at 4-second intervals. Power Button This button is used to switch the system's power on or off . User's Manual | CMS330-Q470E/H420E...
  • Page 28: Lan Led Connector

    1 of the S/PDIF connector. LAN1 PIN1/2/3/4 LAN2 PIN5/6/7/8 „ LAN LED Connector Pin Assignment Pin Assignment Pin Assignment GBE_LED_1000- GBE_LED_100- GBE_LED_LINK_ 3V3DU ACT- LINK_1000_2 LINK_100_2 LINK_ 3V3DU ACTIVITY_2 User's Manual | CMS330-Q470E/H420E...
  • Page 29: Smbus Connector

    33MHz LPC bus clock. For more information about LPC bus refer to the Intel Low Pin Count Interface Specification Revision 1.1’. The table below indicates the ® pin functions of the LPC connector. Assignment Assignment LAD1 RST# LAD0 FRAME# VCC3 LAD3 LAD2 SERIRQ 5V5B User's Manual | CMS330-Q470E/H420E...
  • Page 30: Chassis Intrusion Connector

    (left to right) (top to bottom) (top to bottom) „ Chassis Intrusion Connector Pin Assignment Assignment Assignment „ InnoAGE HDR1 (JP24) Pin Assignment CASEOPEN- Assignment Assignment Assignment Assignment PCRST# PCRST# RECOV# RECOV# PWRLED# PWRLED# HDDLED# HDDLED# PWRBTN# PWRBTN# User's Manual | CMS330-Q470E/H420E...
  • Page 31: Expansion Slots

    The M.2 socket is the Next Generation Form Factor (NGFF) which is designed to support mul- tiple modules and make the M.2 more suitable in application for solid-state storage. PCI Slot PCI Slot is used for PCI device expansion. User's Manual | CMS330-Q470E/H420E...
  • Page 32: Battery

    • There exists explosion hazard if the battery is incorrectly installed. mounted. • Replace only with the same or equivalent type recommended by the manufacturer. • Dispose of used batteries according to local ordinances. User's Manual | CMS330-Q470E/H420E...
  • Page 33: Chapter 3 - Bios Settings

    When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | CMS330-Q470E/H420E...
  • Page 34: Main

    The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | CMS330-Q470E/H420E...
  • Page 35: Rc Acpi Configuration

    • Last State The system returns to the last state right before power failure. Note: Some of the fields may not be available when the features are not supported by the equipped CPU. User's Manual | CMS330-Q470E/H420E...
  • Page 36: Power & Performance

    Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and ME Unconfig on RTC Clear nothing is executing. When disabled, ME will not be unconfigured on RTC Clear. Note: The sub-menus are detailed in following sections. User's Manual | CMS330-Q470E/H420E...
  • Page 37 Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc. USB Provisioning of AMT Secure Erase Mode Enable or disable AMT USB Provisioning. Select Secure Erase module behavior: Simulated or Real. Force Secure Erase Enable or disable Force Secure Erase on next boot. User's Manual | CMS330-Q470E/H420E...
  • Page 38 This field is used to enable or disable the ME FW Image Re-Flash function, which allows the ration. user to update the ME firmware. Unconfigure ME Enable or disable to unconfigure ME with resetting MEBx password to default. User's Manual | CMS330-Q470E/H420E...
  • Page 39: Trusted Computing

    This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | CMS330-Q470E/H420E...
  • Page 40: Nct6126D Super Io Configuration

    WatchDog Timer Unit Select WatchDog Timer Unit — Second or Minute. SuperIO WatchDog Timer Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. Note: The sub-menus are detailed in following sections. User's Manual | CMS330-Q470E/H420E...
  • Page 41 ▼ SYS Smart Fan/CPU Smart Fan Control = [Disabled] Fix Fan Speed Count Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will al- ways operate at the specified speed regardless of gauged temperatures. User's Manual | CMS330-Q470E/H420E...
  • Page 42: Nct5114D Super Io Configuration

    Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc. Serial Port Note: Enable or disable the current serial COM port. The sub-menus are detailed in following sections. Change Settings Select an optimal settings for Super IO Device. User's Manual | CMS330-Q470E/H420E...
  • Page 43: Serial Port Console Redirection

    Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. Flow Control is for RS485 mode and is only supported by Serial Port 1 (COM1). User's Manual | CMS330-Q470E/H420E...
  • Page 44: Usb Configuration

    Keep USB devices available only for EFI applications. • Auto Disable Legacy support if no USB devices are connected. XHCI Hand-off Enable or disable XHCI Hand-off. USB Mass Storage Driver Support Enable or disable USB Mass Storage Driver Support. User's Manual | CMS330-Q470E/H420E...
  • Page 45: Csm Configuration

    This field controls the execution of UEFI and Legacy Storage OpROM. Video This field controls the execution of UEFI and Legacy Video OpROM. Other PCI devices This field determines OpROM execution policy for devices other than Network, Storage or Video. User's Manual | CMS330-Q470E/H420E...
  • Page 46: Network Stack Configuration

    Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | CMS330-Q470E/H420E...
  • Page 47: Chipset

    Please select a submenu and press Enter. The submenus are detailed in the following pages. Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | CMS330-Q470E/H420E...
  • Page 48: Peg Port Configuration

    Enable or disable the root port, or select "Auto" for auto-detection. Enable or disable this field to detect non-compliance PCIe devices in the PEG. Max Link Speed Configure PCIE2/PCIE4 port’s Max Speed: Auto, Gen1, Gen2 or Gen3. User's Manual | CMS330-Q470E/H420E...
  • Page 49: Pch-Io Configuration

    Non-compliant device detection. VT-d capability. Control Iommu Pre-boot Behavior Enable dTBT and PCH USB topology IOMMU in Pre-boot environment. Teton Glacier Mode Switch between Dynamic Configuration for Teton Glacier Enable or Disabled. User's Manual | CMS330-Q470E/H420E...
  • Page 50: Sata And Rst Configuration

    This field shows up when SATA Mode Selection is set to Intel RST Premium With Intel Optane System Acceleration. Enable or disable to use RST Legacy OROM when CSM is enabled. Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | CMS330-Q470E/H420E...
  • Page 51: Security

    Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | CMS330-Q470E/H420E...
  • Page 52: Boot

    Refer to the Advanced > CSM Configuration submenu for more information. This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | CMS330-Q470E/H420E...
  • Page 53: Updating The Bios

    When the BIOS IC needs to be replaced, you have to populate it properly onto the system board after the EEPROM programmer has been burned and follow the technical person's instructions to confirm that the MAC address should be burned or not. User's Manual | CMS330-Q470E/H420E...
  • Page 54: Chapter 4 - Raid

    Combination of RAID 0 (data striping) RAID 10 Stripe (not same mirror) and RAID 1 (mirroring) Extends capacity to the sum of total SPAN None drives, the second drive won't be used until the first one is full. User's Manual | CMS330-Q470E/H420E...
  • Page 55 2. Press <Y> to confirm the process. 5. Relevant information will appear with the message "Mode change is completed." on bot- tom. 3. Wait the process to start, the whole process takes about several seconds depends on the volume amounts. User's Manual | CMS330-Q470E/H420E...
  • Page 56 Chapter 4 Chapter 4 RAID SETTINGS RAID SETTINGS Other RAID modes follow the same procedure as well. User's Manual | CMS330-Q470E/H420E...
