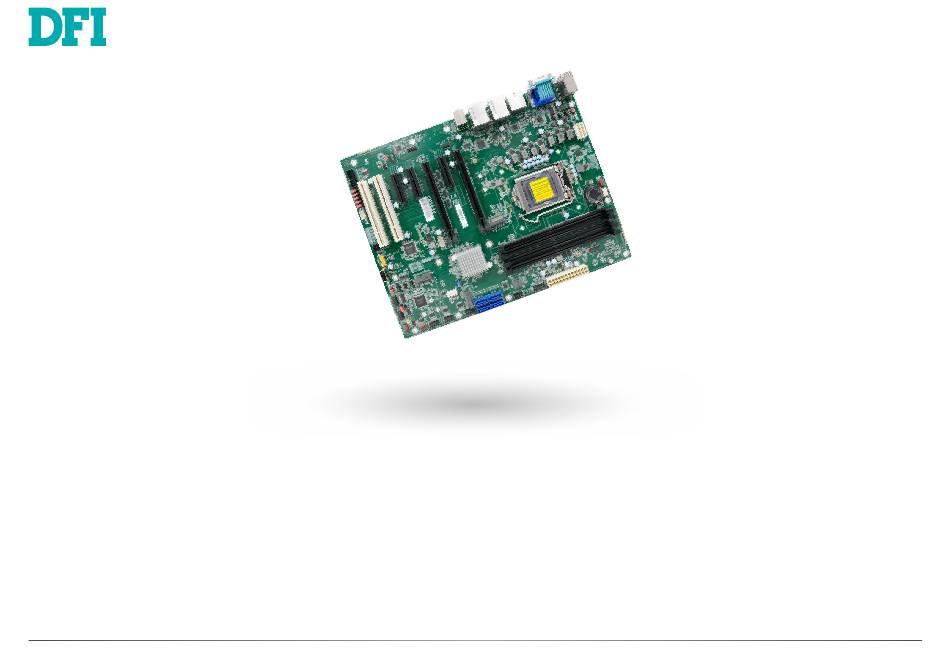

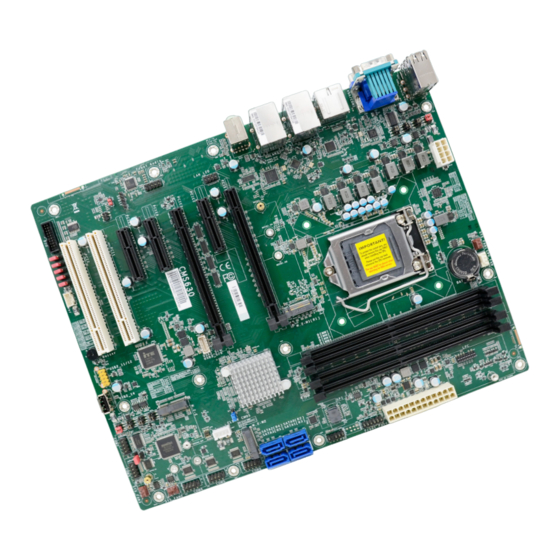

- Page 1 CMS630-W480E/Q470E ATX Industrial Motherboard User’s Manual A-619-M-2120...
- Page 2 Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be repro- This equipment has been tested and found to comply with the limits for a Class B digital duced in any form or by any means or used to make any transformation/adaptation without the device, pursuant to Part 15 of the FCC rules.
-
Page 3: Table Of Contents
Table of Contents ME Configuration ......................39 Active Management Technology Support ..............40 MEBX Configuration ......................40 Debug Configuration .....................41 Chapter 1 - Introduction........................ 6 UEFI Device Manager ....................41 Specifications ......................... 6 SIO NCT6126D .......................42 Features ..........................8 Console Redirection ......................44 Block Diagram ........................9 Security ..........................45 Chapter 2 - Hardware Installation ....................10 Boot ............................45... - Page 4 About this Manual Static Electricity Precautions This manual can be downloaded from the website. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer The manual is subject to change and update without notice, and may be based on editions that components without causing any signs of physical damage.
- Page 5 About the Package The package contains the following items. If any of these items are missing or damaged, Before Using the System Board please contact your dealer or sales representative for assistance. When installing the system board in a new system, you will need at least the following internal •...
-
Page 6: Chapter 1 - Introduction
Chapter 1 INTRODUCTION Chapter 1 - Introduction GRAPHICS Controller Intel® HD Gen 9 Graphics Feature OpenGL 4.5, DirectX 12, OpenCL 2.1 X Specifications HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 SYSTEM Processor 10th Generation Intel®... - Page 7 Chapter 1 INTRODUCTION SATA 4 x SATA 3.0 (up to 6Gb/s, SATA 3) RAID 0/1/5/10 1 x 16-bit DIO 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus PS/2 1 x PS/2 (mini-DIN-6) WATCHDOG Output & System Reset, Programmable via Software from 1 to 255 TIMER Interval Seconds...
-
Page 8: Features
Chapter 1 INTRODUCTION X Features Watchdog Timer PCI Express The Watchdog Timer function allows your application to regularly “clear” the system at the set PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds time interval. If the system hangs or fails to function, it will reset at the set time interval so that by forming multiple lanes. -
Page 9: Block Diagram
Chapter 1 INTRODUCTION X Block Diagram Channel A DDR4 2400/2666/2933MHzDIMM Channel A PTN3355 DDR4 2400/2666/2933MHzDIMM Channel B DP++ LGA 1200 DDR4 2400/2666/2933MHzDIMM Channel B HDMI DDR4 2400/2666/2933MHzDIMM ASM1442K PCIe x16 PCIe x16 2x (1 x16 or 2 x8 signal) DMI 3.0 PCIe x1 PCIe x4 GLAN I211AT... -
Page 10: Chapter 2 - Hardware Installation
Chapter 2 HARDWARE INSTALLATION Chapter 2 - Hardware Installation X Board Layout Note: Some components are optional and only available upon request. CPU FAN Important: DDR4_1 DDR4_3 Electrostatic discharge (ESD) can damage your board, processor, disk drives, USB2_7/8/9/10 System +12V Power Fan 1 add-in boards, and other components. -
Page 11: System Memory
Chapter 2 HARDWARE INSTALLATION X System Memory System Memory Installing the DIMM Module Before installing the memory module, please make sure that the following safety cautions are well-attended. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. -
Page 12: Removing The Dimm Module
Chapter 2 HARDWARE INSTALLATION System Memory Installing the DIMM Module System Memory Removing the DIMM Module Please follow the steps below to install the memory card into the socket. Please follow the steps below to remove the memory card from the socket. Step 1: Press the eject tabs at both ends of the socket outward and downward to release them from Step 1:... -
Page 13: Cpu
Chapter 2 HARDWARE INSTALLATION X CPU Installing the CPU Fan and Heat Sink The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circula- tion across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board. -
Page 14: Jumper Settings
Chapter 2 HARDWARE INSTALLATION X Jumper Settings CLEAR CMOS Data If any anomaly of the followings is encountered — a) CMOS data is corrupted; b) you forgot the supervisor or user password; c) failure to start the system due to BIOS mis-configuration —... -
Page 15: Com1/Com2 Rs232/422/485 Select
Chapter 2 HARDWARE INSTALLATION Jumper Settings „ JP1/JP2 (COM1), JP6/JP8 (COM2) 2 4 6 2 4 6 2 4 6 COM1/COM2 RS232/422/485 Select 1 3 5 1 3 5 1 3 5 1-3, 2-4 On: 3-5, 4-6 On: 3-5, 4-6 On: RS232 (default) RS422 Full Duplex RS485... -
Page 16: Com1/Com2 Rs232 Power Select
Chapter 2 HARDWARE INSTALLATION Jumper Settings COM1/COM2 RS232 Power Select „ JP4 (COM 1) / JP7 (COM 2) 2 4 6 2 4 6 (COM 1) 1 3 5 1 3 5 1-3, 2-4 On: 3-5, 4-6 On: RS232 (default) RS232 with power (COM 2) JP4 (for COM 1) and JP7 (for COM 2) are used to configure Serial COM ports to pure RS232... -
Page 17: Dio Power & Voltage - Jp11/12/13/14/15
Chapter 2 HARDWARE INSTALLATION Jumper Settings Jumper Settings DIO Power & Voltage - JP11/12/13/14/15 AT/ATX Mode - JP26 „ AT mode „ JP15 1-2 On: GND (default) 1-2 On: 5VSB (default) „ ATX mode 2-3 On: 2-3 On: 3V3SB JP26 JP11/12/13/14/15 JP26 is used to switch between AT/ATX Mode. -
Page 18: Pwm Control - Jp23
Chapter 2 HARDWARE INSTALLATION Jumper Settings Jumper Settings PWM Control - JP23 InnoAGE HDR1 „ JP23 1-2 On: 5VDU (default) JP27 2-3 On: JP23 JP23 is used to set PWM control. JP27 is used to set InnoAGE functions. *Note: Currently support InnoAge out-of-band management through RJ45 only. „... -
Page 19: Connector Power Control - M2Jp1 / M2Jp2
Chapter 2 HARDWARE INSTALLATION Jumper Settings M.2 Connector Power Control - M2JP1 / M2JP2 M2JP1 1-2 On: 3V3 (default) M2JP2 2-3 On: 3V3DU M2JP1 and M2JP2 are used to control the power of M2CN1(M.2-M1) and M2CN2(M.2-M2). User's Manual | CMS630... -
Page 20: Rear I/O Ports
Chapter 2 HARDWARE INSTALLATION X Rear I/O Ports COM 1 HDMI LAN 1 LAN 2 Line-out Mic-in USB 2.0 DP++ USB 3.2 USB 3.2 Gen1 Gen2 The rear panel I/O ports consist of the following: • 1 DP++ • 2 USB 3.2 Gen2 ports •... -
Page 21: Usb Ports
Chapter 2 HARDWARE INSTALLATION Rear I/O Ports „ USB 2.0 Headers (USB 11/12) USB Ports Assignment Assignment USB 7/8/9/10 (USB 2.0) Data- Data- Data+ Data+ USB 1/2 (USB 3.2 Gen 1) N.C. USB 3/4 (USB 3.2 Gen 2) „ USB 2.0/3.2 Headers (USB 5/6) Assignment Assignment SBV3... -
Page 22: Graphics Interfaces
Chapter 2 HARDWARE INSTALLATION Rear I/O Ports Rear I/O Ports COM1 Graphics Interfaces The display ports consist of the following: • 1 DP++ Port • 1 HDMI port • 1 VGA port COM Port (DB9 COM1) DP++ Port The DP++ port which carries both digital audio and video signals is used to connect a LCD The pin functions of COM 1 port will vary according to setting of JP1, JP2, JP3 and JP4. -
Page 23: Rj45 Lan Ports
Chapter 2 HARDWARE INSTALLATION Rear I/O Ports Rear I/O Ports RJ45 LAN Ports Audio Rear Audio Line-out LAN1/2 Mic-in Front Audio Mic2-L Mic2-R Mic2-JD Line2-R Front I/O Sense Line2-L Line2-JD Rear Audio The system board is equipped with 2 audio jacks (Line-out and Mic-in). Line-in jack is available upon request. -
Page 24: Internal I/O Connectors
Chapter 2 HARDWARE INSTALLATION X Internal I/O Connectors Internal I/O Connectors Digital I/O Connector SATA (Serial ATA) SATA Pin Assignment „ SATA 0/1 from left to right SATA 2/3 from left to right The 16-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors. -
Page 25: Com (Serial) Ports
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors COM (Serial) ports The pin functions of COM 2 port will vary according to setting of JP6, JP7, JP8 and JP10. Re- fer to “COM1/COM2 RS232/422/485 Select” and “COM1/COM2 RS232/Power Select” in this chapter for more information. -
Page 26: Cooling Fan Connectors
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors Cooling Fan Connectors Power Connector System Fan 1 (PWM) CPU Fan (PWM) „ ATX 8-pin Power Connectors +12V 12 24 +3.3V „ CPU Fan +12V +12V +5VSB PWR_OK PS_ON# +3.3V -12V „... -
Page 27: Front Panel
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors Front Panel S/PDIF Connector „ Front Panel Connector PWR-LED ATX-SW HD-LED RESET „ S/PDIF SPDIF out „ Front Panel Pin Assignment SPDIF in Assignment Assignment N.C. 3V3SB PWR-LED 3V3SB HD-LED HD_LED SUS_LED The S/PDIF connector is used to connect an external S/PDIF port. -
Page 28: Lpc Connector
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors LPC Connector „ LPC Connector „ PS2 Pin Assignment The Low Pin Count Interface was defined by Intel Corporation to facilitate the industry’s transi- ® tion towards legacy free systems. It allows the integration of low-bandwidth legacy I/O compo- Assignment Assignment nents within the system, which are typically provided by a Super I/O controller. -
Page 29: Innoage Hdd Power
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Innoage HDD Power „ Pin Assignment Assignment +12V_SATA 5V_SATA User's Manual | CMS630... -
Page 30: Expansion Slots
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors Expansion Slots Expansion Slots Installing the M.2 Module Before installing the M.2 module into the M.2 socket, please make sure that the following safety cautions are well-attended. PCIe 1 (PCIe x16) PCIe 2 (PCIe x4) 1. -
Page 31: Battery
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Expansion Slots Internal I/O Connectors Battery Please follow the steps below to install the card into the socket. „ Battery Step 1: Insert the card into the socket at an angle while making sure the notch and key are perfectly aligned. -
Page 32: Chapter 3 - Bios Setup
Chapter 3 BIOS SETTINGS Chapter 3 - BIOS Setup Legends X Overview The BIOS is a program that takes care of the basic level of communication between the CPU Keys Function and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed Right / Left arrow Move the highlight left or right to select a menu... -
Page 33: Main
Chapter 3 BIOS SETTINGS X Main X Advanced The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. -
Page 34: Acpi Configuration
Chapter 3 BIOS SETTINGS Advanced ACPI Configuration InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced Wake on RTC from S4/S5 ACPI Configuration ACPI Configuration Determines the action tak- in everyday. It will over- en when the system power ride the OS schedule for Wake On LAN <Enabled>... -
Page 35: Cpu Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced CPU Configuration Video Configuration Configure CPU processing related settings in this page. InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced Initial priority: Video Configuration CPU Configuration Allow more than two fre- AUTO: quency ranges to be sup- PEG->PCIe->PCI->IGFX... -
Page 36: Audio Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced Audio Configuration SATA Configuration InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced SATA Configuration Control Detection of the SATA Configuration Enable or Disable SATA HD-Audio device. Device. HD Audio <Enabled> SATA Controller(s) <Enabled>... -
Page 37: Usb Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced USB Configuration USB Power Control InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced U S B k e y b o a r d / m o u s e / s t o r a g e 5V_Dual: Support system wake USB Configuration USB Power Control... -
Page 38: Pci Express Configuration
Chapter 3 BIOS SETTINGS Advanced PCI Express Configuration PCIE4/PCIE5/M.2-M(R1)/LAN1/PCIE2/M.2-E/M.2-M2 InsydeH2O Setup Utility Rev. 5.0 Advanced Port Enable PCI Express Configuration PCI Express Port Settings Enable or disable the PCI Express Root Port, LAN Port and M.2-M. PCIE1 PCIE3 LAN2 PCIe Speed PCIE4 PCIE5 Select PCIe Speed of the current port —... -
Page 39: Me Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced System Agent (SA) Configuration ME Configuration InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced U S B k e y b o a r d / m o u s e / s t o r a g e When Disabled ME will be put System Agent (SA) Configuration USB Configuration... -
Page 40: Active Management Technology Support
Chapter 3 BIOS SETTINGS Advanced Advanced Active Management Technology Support MEBX Configuration InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced Enable/Disable Intel(R) Active MEBX Configuration Setting Active Management Technology Support MEBX Configuration Management Technology BIOS Extension. Note : iAMT H/W is Intel AMT Support <Enabled>... -
Page 41: Debug Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced Debug Configuration UEFI Device Manager This section configures Debug setting. Configure UEFI device with option ROM, such as LAN card, etc. InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced Enable it to output debug mes- UEFI Device Manager Setting Debug Configuration UEFI Device Manager... -
Page 42: Sio Nct6126D
Chapter 3 BIOS SETTINGS Advanced SIO NCT6126D Configure Super I/O settings in this submenu. Scroll by moving the cursor up or down to reveal more options. InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced Configure Serial port using op- Configure Serial port using op- COM Port 1 <Enable>... - Page 43 Chapter 3 BIOS SETTINGS Advanced SIO NCT6126D X PC Health Status This section displays the PC health status. InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced PC Health Status Boundary 0 [30] Boundary 1 [40] Voltage Boundary 2 [50] VBAT...
-
Page 44: Console Redirection
Chapter 3 BIOS SETTINGS Advanced X COM1/COM2/COM3/COM4/COM5/COM6 Console Redirection Configure individual COM port serial settings in the submenu. Configure COM port serial settings in the submenu. InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Advanced Advanced E n a b l e C o n s o l e R e d i r e c t i o n Console Redirection Setup COM1 Function... -
Page 45: Security
Chapter 3 BIOS SETTINGS X Security X Boot InsydeH2O Setup Utility Rev. 5.0 InsydeH2O Setup Utility Rev. 5.0 Main Advanced Security Boot Exit Security Current TPM Device <TPM 2.0 (DTPM)> W h e n H i d d e n , d o n ’ t e x - Numlock <Off>... - Page 46 Chapter 3 BIOS SETTINGS Boot PXE Boot capability This field is only available when "Boot Type" is set to “UEFI Boot Type” or “Dual Boot Type”, and when "Network Stack" is enabled. Disabled Suppoort Network Stack UEFI IPv4/IPv6 Legacy Legacy PXE OPROM only USB Boot Enable or disable booting to USB boot devices.
-
Page 47: Exit
BIOS with the flash utility. For updating Insyde BIOS in UEFI mode, you may refer to the how-to video at https://www.dfi.com/tw/knowledge/video/31. InsydeH2O Setup Utility Rev. 5.0... -
Page 48: Chapter 4 - Raid
Chapter 4 RAID SETTINGS Chapter 4 - RAID X Setup Procedure The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, and SPAN. To enable the RAID function, the following settings are required. 1. Connect the Serial ATA drives. 2. - Page 49 Chapter 4 RAID SETTINGS Setup Procedure Setup Procedure Step 3-1: Create a RAID Volume if the boot type is UEFI Step 3: Create a RAID Volume If the boot type is set to UEFI, RAID volume creation will be different. Please use the following 1.
- Page 50 Chapter 4 RAID SETTINGS Step 4: Install the Intel Rapid Storage Technology Utility 4. Go through the readme document to view system requirements and installation information then click “Next”. The Intel Rapid Storage Technology Utility can be installed from within Windows. It allows RAID volume management (create, delete, migrate) from within the operating system.
- Page 51 Chapter 4 RAID SETTINGS 7. Click “Yes, I want to restart this computer now” to complete the installation and then click “Finish”. User's Manual | CMS630...
