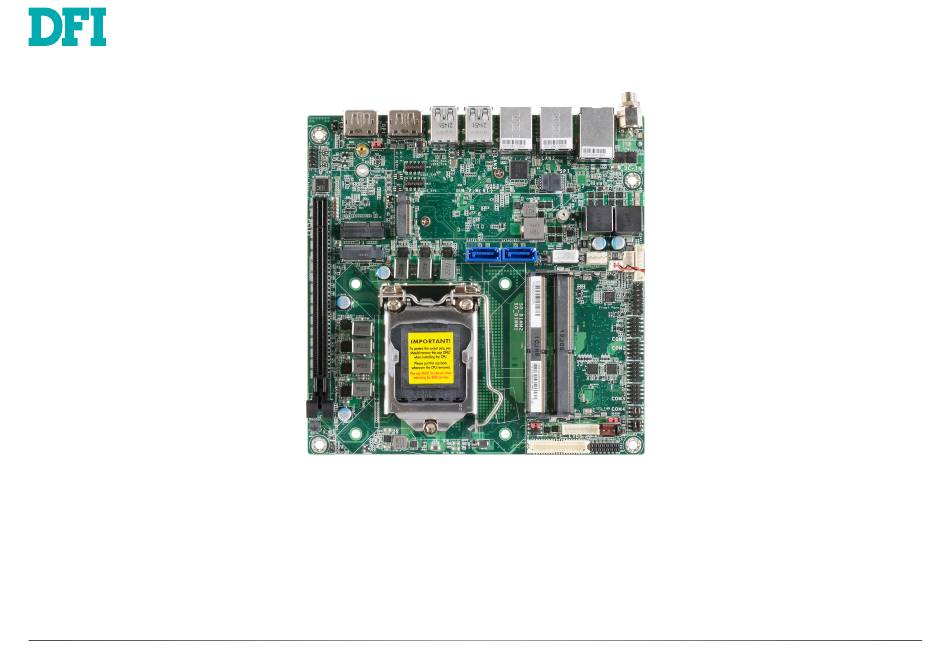

- Page 1 CMS101/CMS103 Thin Mini-ITX User’s Manual © February 05, 2023 DFI Inc.
-
Page 2: Fcc And Doc Statement On Class A
1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | CMS101/CMS103... -
Page 3: Table Of Contents
Chapter 3 - BIOS Settings ......................26 Overview ..........................26 Updating the BIOS ........................26 Main ............................27 Advanced ..........................27 RC ACPI Settings ......................28 CPU Configuration ......................28 Power & Performance ....................29 PCH-FW Configuration ....................29 Trusted Computing ......................30 PTN3460 Configuration ....................31 NCT6126D Super IO Configuration ................31 User's Manual | CMS101/CMS103... -
Page 4: About This Manual
It must be returned to the purchase point, factory or authorized service agency for all such work. 4. We will not be liable for any indirect, special, incidental or consequential damages to the product that has been modified or altered. User's Manual | CMS101/CMS103... -
Page 5: Static Electricity Precautions
Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | CMS101/CMS103... -
Page 6: Chapter 1 - Introduction
I211AT PCIe(10/100/1000 speeds) ® REAR I/O Ethernet 1 x 2.5GbE (RJ-45) 2 x GbE (RJ-45) W480/Q470: 4 x USB 3.2 Gen2 (dual type-A connector) H420: 4 x USB 3.2 Gen1 (dual type-A connector) Display 2 x DP++ User's Manual | CMS101/CMS103... - Page 7 Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH ENVIRONMENT MTBF CMS103-W480IB 554,497 hrs @ 25°C; 325,039 hrs @ 45°C; 208,771 hrs @ 60°C; Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled CERTIFICATION Certifications...
-
Page 8: Dimensions
Chapter 1 INTRODUCTION X Dimensions X Block Diagram User's Manual | CMS101/CMS103... -
Page 9: Chapter 2 - Hardware Installations
Front Panel LAN2 COM1 LAN1 COM2 DC-IN COM3 Single 12V +/-10% DC (CMS101) Wide Range 15~36V (CMS103) M.2 E-Key COM4 Front Audio M.2 B-Key Power Selection COM 1 M.2 2230 E key Power Selection COM 2 M.2 2242/3042/3052 B key... -
Page 10: Bottom View
Chapter 2 HARDWARE INSTALLATION Bottom View Nano SIM slot Intel® W480/Q470/H420 Chipset User's Manual | CMS101/CMS103... -
Page 11: Installing The Heat Sink
If a wrist strap is unavailable, establish and main- tain contact with the system chassis throughout any procedures requiring ESD protection. Mounting holes User's Manual | CMS101/CMS103... -
Page 12: Jumper Settings
Power Selection COM1 (JP2) M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key „ 1-3 /2-4 On: „ 3-5 /4-6 On: „ 2-3 On: Clear CMOS „ 1-2 On: Normal (default) RS232 with Power RS232 Standard (Default) User's Manual | CMS101/CMS103... -
Page 13: Power Selection Com2 (Jp3)
Power Selection COM2 (JP3) LCD/Inverter Power Select (DPJP602) M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key „ 1-2 On: +12V (Default) „ 2-3 On: +5V „ 1-3 /2-4 On: „ 3-5 /4-6 On: RS232 Standard (Default) RS232 with Power User's Manual | CMS101/CMS103... -
Page 14: Backlight Voltage Select (Dpjp601)
Panel Power Select (DPJP603) Backlight Voltage Select (DPJP601) M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key „ 1-2 On: 12V „ 5-6 On: 3.3V (Default) „ 3-4 On: 5V „ 1-2 On: 3V3 (Default) „ 2-3 On: 5V User's Manual | CMS101/CMS103... -
Page 15: Pin Assignment
M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key COM 1/2 COM 3/4 RS422 Full RS232 RS485 Duplex DCD- DATA- Assignment Pin Assignment DATA+ 3V3SB PWR-LED 3V3SB HD-LED DTR- HD_LED SUS_LED DSR- RESET ATX-SW PM_SYSRST PWR_BTN- RTS- CTS- User's Manual | CMS101/CMS103... -
Page 16: Lvds Power (Dpj601)
LPC (J14) M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key Assignment Assignment Assignment LAD1 Panel Inverter Brightness Voltage Control RST# LAD0 Panel Power FRAME# +3.3V LAD3 Panel Backlight On/Off Control LAD2 LCD/Inverter Power SERIRQ LCD/Inverter Power 5VSB User's Manual | CMS101/CMS103... -
Page 17: Front Audio (Auj2)
Front Audio (AUJ2) USB 2.0 5-6/7-8 Headers (UBJ7, UBJ8) USB 2.0 7-8 USB 2.0 5-6 M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key Assignment Assignment Assignment Assignment Mic2-L DATA- DATA- Mic2-R DATA+ DATA+ Line2-R Mic2-JD Line2-L Line2-JD User's Manual | CMS101/CMS103... -
Page 18: Chassis Intrusion (Soj1)
Chapter 2 HARDWARE INSTALLATION Chassis Intrusion (SOJ1) CPU Fan (J10) M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key Assignment Assignment Signal Sense Speed Control User's Manual | CMS101/CMS103... -
Page 19: Sata0 (R2)/ Sata1 (R3)
Chapter 2 HARDWARE INSTALLATION SATA0 (R2)/ SATA1 (R3) SATA Power (CN1) SATA0 (R2) M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key SATA1 (R3) Assignment Assignment +12V User's Manual | CMS101/CMS103... -
Page 20: Battery (J5)
Chapter 2 HARDWARE INSTALLATION Digital I/O (J13) Battery (J5) M.2 E-Key M.2 E-Key M.2 B-Key M.2 B-Key Assignment DIO0 Assignment DIO1 +3.3V DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 User's Manual | CMS101/CMS103... -
Page 21: Digital I/O Power (J12)
Chapter 2 HARDWARE INSTALLATION Digital I/O Power (J12) M.2 E-Key M.2 B-Key Assignment +12V 5VSB User's Manual | CMS101/CMS103... -
Page 22: Lvds Lcd Panel (Dpcn601)
Assignment LVDSA_3+ LVDSB_3+ LVDSA_3- LVDSB_3- M.2 E-Key LVDSA_2+ LVDSB_2+ M.2 B-Key LVDSA_2- LVDSB_2- LVDSA_1+ LVDSB_1+ LVDSA_1- LVDSB_1- LVDSA_0+ LVDSB_0+ LVDSA_0- LVDSB_0- LVDSA_CLK+ LVDSB_CLK+ LVDSA_CLK- LVDSB_CLK- DDC_CLK DDC_DATA +3.3V Panel Power Panel Power Panel Power Panel Power User's Manual | CMS101/CMS103... -
Page 23: Edp (Cn23) *Optional
Chapter 2 HARDWARE INSTALLATION eDP (CN23) *Optional Assignment Assignment eDP_PANEL_PWR VCC_INV_PWR eDP_PANEL_PWR VCC_INV_PWR eDP_PANEL_PWR VCC_INV_PWR VCC_INV_PWR eDP_AUXN_C eDP_AUXP_C DIMMING eDP_LANE0_P BLONOFF eDP_LANE0_N eDP_LANE1_P eDP_LANE1_N eDP_HDP_C eDP_LANE2_P eDP_LANE2_N eDP_LANE3_P eDP_LANE3_N eDP_PANEL_PWR User's Manual | CMS101/CMS103... -
Page 24: Expansion Slots
Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | CMS101/CMS103... -
Page 25: Installing The So-Dimm Module
Inspect that the clip sits in the notch. If not, please pull the clips outward, release and remove the card, and mount it again. User's Manual | CMS101/CMS103... -
Page 26: Chapter 3 - Bios Settings
To update the BIOS, you will need the new BIOS file and a flash utility. Please contact technical support or your sales representative for the files and specific instructions about how to update BIOS with the flash utility. User's Manual | CMS101/CMS103... -
Page 27: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | CMS101/CMS103... -
Page 28: Rc Acpi Settings
The system automatically powers on after power failure. • S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. • Last State The system returns to the last state right before power failure. User's Manual | CMS101/CMS103... -
Page 29: Power & Performance
When disabled, AMT BIOS features are no longer supported and user is no longer able to ac- C states cess MEBx Setup. This option does not disable manageability features in FW. Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | CMS101/CMS103... -
Page 30: Trusted Computing
This field is used to enable or disable BIOS support for the security device such as an TPM 2.0 to achieve hardware-level security via cryptographic keys. Pending operation To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. User's Manual | CMS101/CMS103... -
Page 31: Ptn3460 Configuration
Select PTN3460 LVDS BUS Mode : Single LVDS Bus /Dual LVDS Bus Note: The sub-menus are detailed in following sections. Note: The configuration must match the specifications of your LCD Panel in order for the LCD Panel to display properly. User's Manual | CMS101/CMS103... -
Page 32: Nct6126D Hw Monitor
Fan Speed Count 1 field. • Fan Speed Count 1 to Fan Speed Count 4 Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will operate according to the specified boundary temperatures above-mentioned. User's Manual | CMS101/CMS103... -
Page 33: Serial Port Console Redirection
Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. Flow Control is for RS485 mode and is only supported by Serial Port 1 (COM1). User's Manual | CMS101/CMS103... -
Page 34: Usb Configuration
Enables I/0 port 60h/64h emulation support. This should be enabled for the complete USB Set the number of times the presence of media will be checked. Use either +/- or numeric keyboard legacy support for non-USB aware Oses. keys to set the value. User's Manual | CMS101/CMS103... -
Page 35: Csm Configuration
This field controls the execution of UEFI and Legacy Storage OpROM. Video This field controls the execution of UEFI and Legacy Video OpROM. Other PCI devices This field determines OpROM execution policy for devices other than Network, Storage or Video. User's Manual | CMS101/CMS103... -
Page 36: Chipset
Please select a submenu and press Enter. The submenus are detailed in the following pages. Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detection. User's Manual | CMS101/CMS103... -
Page 37: Peg Port Configuration
Enable/Disable onboard NIC. Wake on LAN Enable Enable/Disable integrated LAN to wake the system. Above 4GB MMIO BIOS assignment Enable/Disable above 4GB MemoryHappedIO BIOS assignment. This is enabled automatically when Aperture Size is set to 2048MB. User's Manual | CMS101/CMS103... -
Page 38: Configuration► Pci Express Configuration
Control the PCI Express Root Port. PCIe Speed Select PCIe Speed of the current port — AUTO, Gen1, Gen 2, or Gen3. This field may not appear when the speed of the port is not configurable. User's Manual | CMS101/CMS103... -
Page 39: Configuration► Sata And Rst Configuration
This option allows you to create RAID or Intel Rapid Storage configuration along with Intel® Optane™ system acceleration on Serial ATA devices. Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | CMS101/CMS103... -
Page 40: Security
Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | CMS101/CMS103... -
Page 41: Boot
Refer to the Advanced > CSM Configuration submenu for more information. • Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set-ting from the USB flash device. User's Manual | CMS101/CMS103...
