2.9.4.1 Creating a sequence
• Select the command to use as the sequence initiator. In this example,
TV – ON.
• Select Learn Code by deflecting the joystick to the right while the
command is highlighted.
• Point the TV remote control at the control panel's infrared receiver and
press the on/off button twice.
TV - ON
• After each successful learn operation a check mark appears momentarily
on the screen, select Learn Code again.
TV - Off
• Point the DVD remote control at the control panel's infrared receiver and
press the on/off button twice.
Channel Up
• After each successfully learned operation, a check mark appears
momentarily on the screen, select Learn Code again.
Channel Down
• Complete the sequence by highlighting Exit and deflecting the joystick to
the left.
Volume Up
• Now the TV – ON command will have a check mark and three dots beside
it, showing a learned sequence.
Volume Down
Menu
2.9.5
Enabling and disabling infrared codes
Delete All Codes

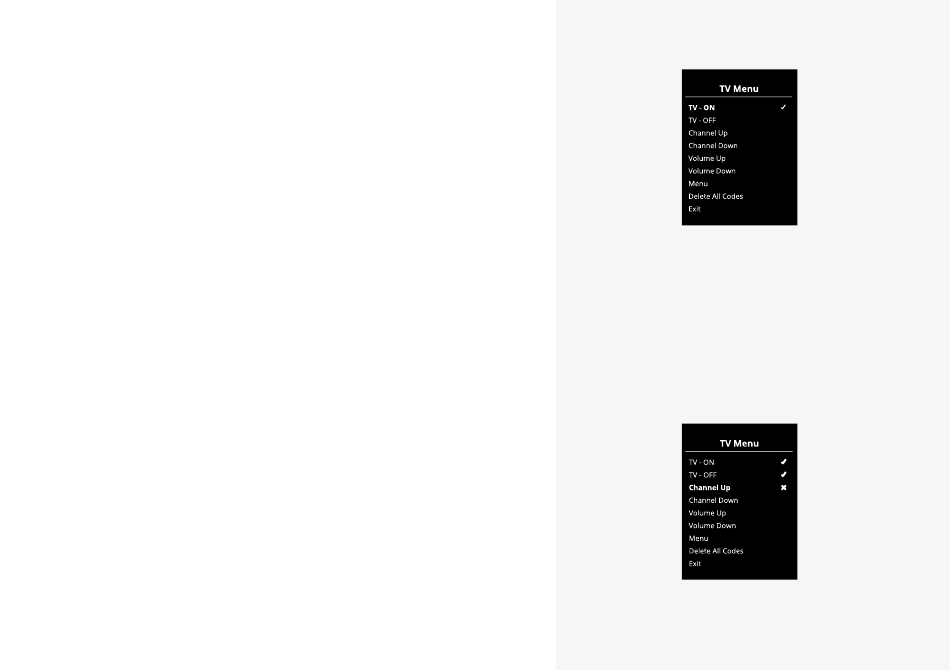

Infrared codes can be enabled or disabled in the infrared setup menu. If a
code is disabled, it will not transmit and will not appear in infrared mode.
Exit
To disable an infrared code, deflect the speed paddle up or down. A disabled
infrared code appears with an X next to the highlighted command.
To enable an infrared code, deflect the speed paddles up or down. An enabled
code appears with a check mark next to the highlighted command.
56 - Power Platform Joystick Module for R-net
TV Menu
...
TV Menu
TV - ON
TV - Off
Channel Up
Channel Down
Volume Up
Volume Down
Menu
Delete All Codes
Exit
...
