Permobil Power Platform R-net User Manual page 53

2.9.3.1 Learning an infrared code procedure

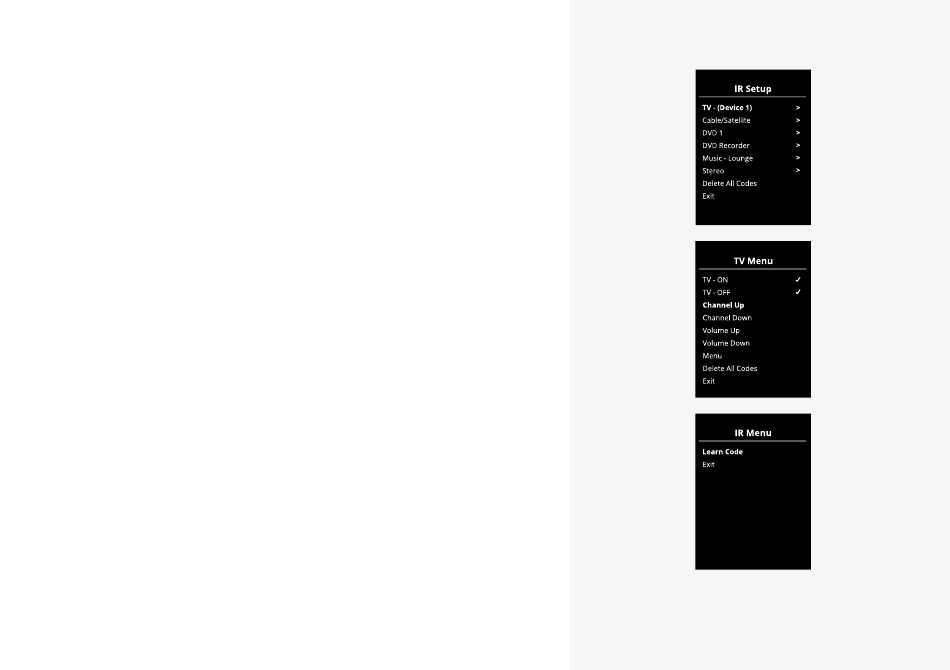

Enter the infrared setup menu.
Select an appliance, for example TV – (Device 1) as illustrated.
(Device 1) shows where the equipment's unique name may appear on the
screen.
TV - (Device 1)
Cable/Satellite
DVD 1
The commands for the appliance will appear on the screen as shown in the
figure. Select a command to learn.
DVD Recorder
In this example, Channel Up will be selected from the TV menu.
Music - Lounge
Stereo
Delete All Codes
Deflect the joystick right to select the command Learn Code when it is
Exit
highlighted.
IR Setup
TV Menu
TV - ON
TV - OFF
Channel Up
Channel Down
Volume Up
Volume Down
Menu
Delete All Codes
Exit
>
>
>
>
>
>
>
>
>
IR Menu
> Learn Code
Exit
>
>
Power Platform Joystick Module for R-net - 53
