2.6.9

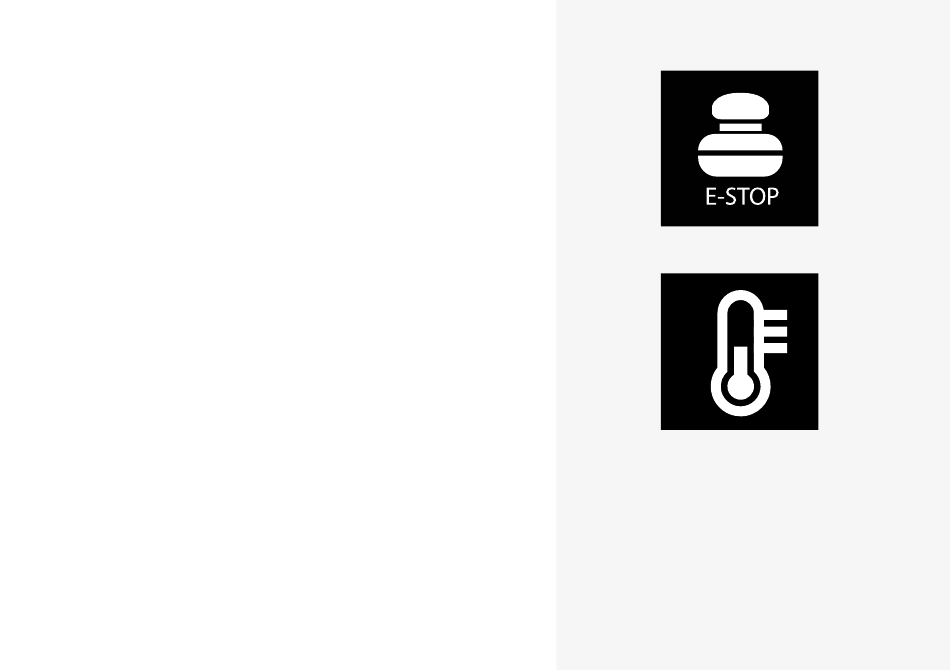

Emergency stop
If the control system is programmed for latched drive or actuator operation,
then an emergency stop switch is usually connected to the external profile
switch jack. This symbol flashes if the emergency stop switch is operated or
disconnected.
2.6.10 Power Platform temperature
This symbol means that a safety feature of the Power Platform has been
triggered.
This safety feature reduces the power to the motors, and automatically resets
when the control system has cooled down.
When this symbol occurs, drive slowly or stop the wheelchair.
If the temperature of the Power Platform continues to increase, it can reach a
level where it must cool down, at which point it will not be possible to drive the
wheelchair any further.
28 - Power Platform Joystick Module for R-net
