Permobil ROHO Smart Check Setup Manual

ROHO
Red Light
Remove air
Green Light
Setup is complete or
cushion is within the saved
inflation range
Red Light
Smart Check Setup
®

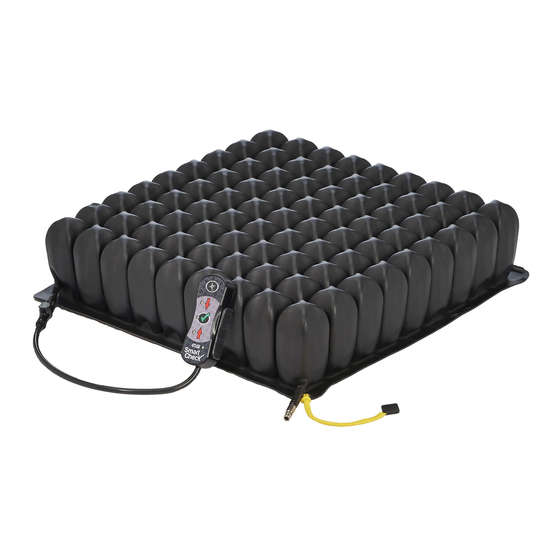

1. Place the ROHO Sensory Ready Cushion on the chair
with the air cells facing up. Place the nozzle of the
pump over the inflation valve and overinflate the
cushion until it begins to arch. Pinch the rubber nozzle of the hand pump
and turn to close the inflation valve completely. Remove pump.
2. Transfer individual to chair and attach Smart Check to the
cushion. You will hear a "click" when the connection is secure.
3. Start Setup Process: Press the green
check button, when you see the red
down arrow illuminate, you are ready
to begin the Smart Check Set-up,
continue to step 4.
Note: If you see the red up arrow, when you press the check button then:
1) Make sure the disconnect is securely attached and,
2) Open the inflation valve and press the green check button again. Repeat
until you see the red down arrow illuminate.
4. Press, but do not hold, the Setup Button. The red down arrow will flash.
Open the inflation valve, release air
(approx 30-60 sec) and wait for the
flashing green light. To ensure an
accurate reading, the individual must
remain still.
5. When you see the flashing green light, close the inflation valve.
The green light indicates that set up is
complete.
6. The individual can now check their
cushion inflation rate daily by attaching the
Smart Check and pressing the Check Button.
®
Smart Check
Add air
®
Set-Up Guide
Setup Button
Check Button
Quick
Disconnect
Before performing a new Setup,
clear the setting on Smart Check
by performing a Hard Reset as
instructed below.
Note: Smart Check can be
attached or detached when
performing the Hard Reset.
1. Make sure there are no steady
or flashing lights.
2. Simultaneously press and hold
the Check Button AND the
Setup Button for 5 seconds.
Each of the lights will flash one
time, indicating that the
previous setting has been
removed.
3. After Hard Reset is complete,
follow the Smart Check Setup
Instructions.
Permobil Australia | 1300 845 483
Hard Reset
orders.au@permobil.com
permobil.com.au
