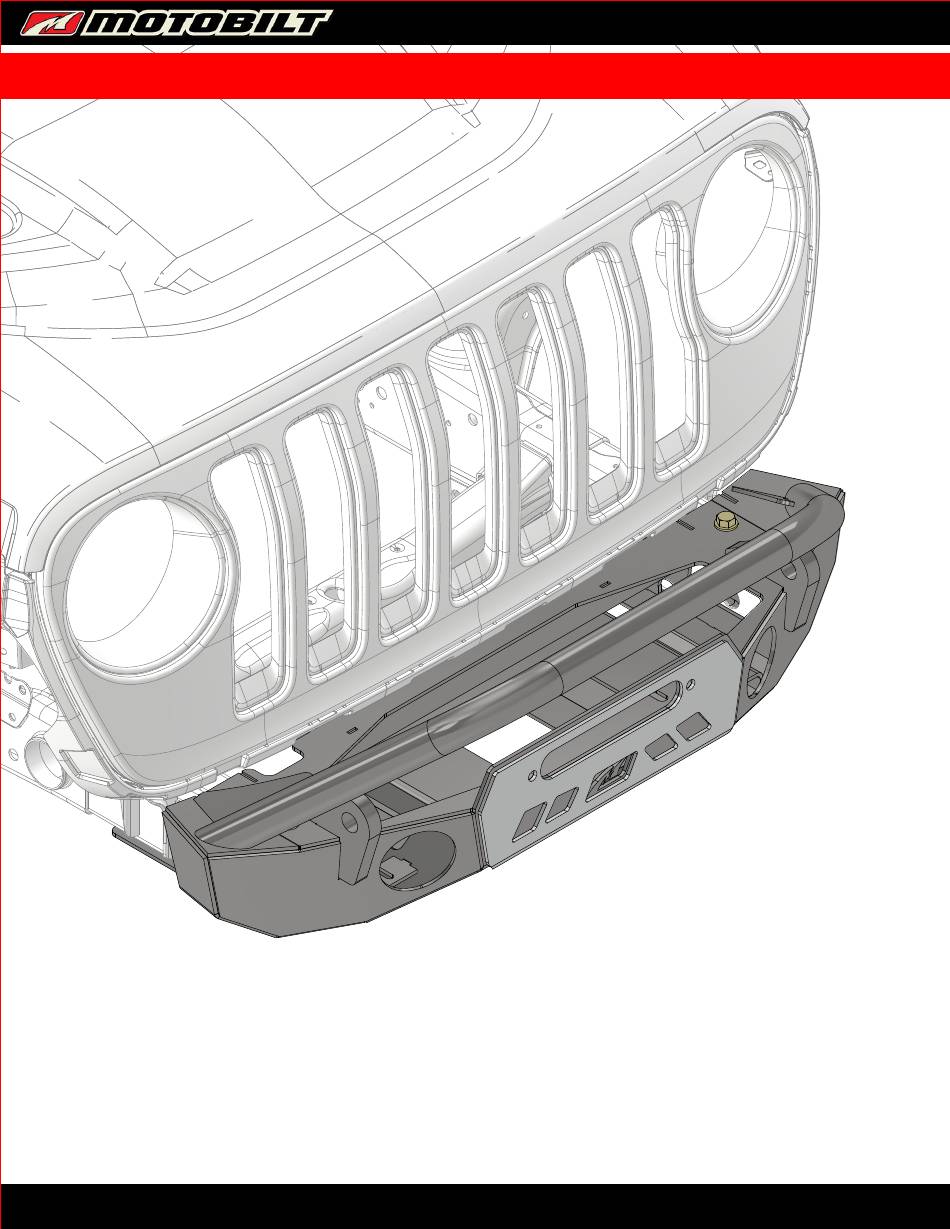

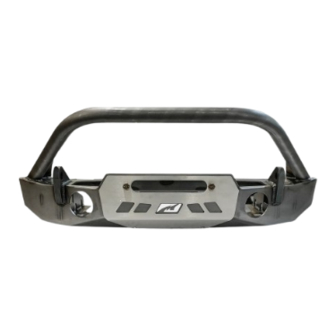

- Page 1 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper MB1248-B - GLADIUS FRONT BUMPER COMPATIBLE WITH JK / JKU / JL / JLU / JT ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: MB1248-B - Shipping Gladius Frame Chop Front Bumper CONTENTS MB1238-S Qty: 2 MB1248-15 Qty: 1 MB1248-B Qty: 1 1/2"-13 x 6" Hex Bolt 1/2" Flat Washer 1/2"-13 - Nylon Locknut Qty: 4 Qty: 8 Qty: 4 motobilt.com | 334-219-2333...
- Page 3 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper 6 . 5 REMOVE PARTS HIGHLIGHTED IN RED, MEASURE 6.5" FROM FRONT OF BODY MOUNT 6 . 5 motobilt.com | 334-219-2333...
- Page 4 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper 1/2" DRILL BIT USE BUMPER TO MARK HOLES TOP AND BOTTOM REMOVE BUMPER AND DRILL HOLES DO NOT DRILL THROUGH TOP AND BOTTOM AT THE SAME TIME motobilt.com | 334-219-2333...
- Page 5 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper ASSEMBLE LIGHTS WITH HARDWARE PROVIDED BY MFG LOOSE, TO ALLOW LIGHT TO SLIDE LIGHT ONTO BRACKET motobilt.com | 334-219-2333...
- Page 6 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper 1/4"-20 - Nylon Insert Locknut 1/4" Flat Washer NOTE: WINCH AND WINCH HARDWARE NOT INCLUDED 1/4"-20 Countersunk Flat Hex Socket motobilt.com | 334-219-2333...
- Page 7 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper NOTE POSITION OF CROSSBAR, THIS WILL LINE UP WITH THE FRAME HOLE TO ALLOW ACCESS TO CRUSH SLEEVE motobilt.com | 334-219-2333...
- Page 8 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper 1/2"-13 x 6" Hex Bolt 1/2" Flat Washer 1/2" Flat Washer 1/2"-13 - Nylon Locknut motobilt.com | 334-219-2333...
- Page 9 REV: MB1248-B - Assembly Instructions Gladius Frame Chop Front Bumper JL SWAYBAR MOUNT JK SWAYBAR MOUNT Jeep JL/JLU/JT Swaybar Compatibility: Jeep JK/JKU Swaybar Compatibility: The factory swaybar can be modified The factory swaybar can be modified to fit this product, however the Rubicon...
