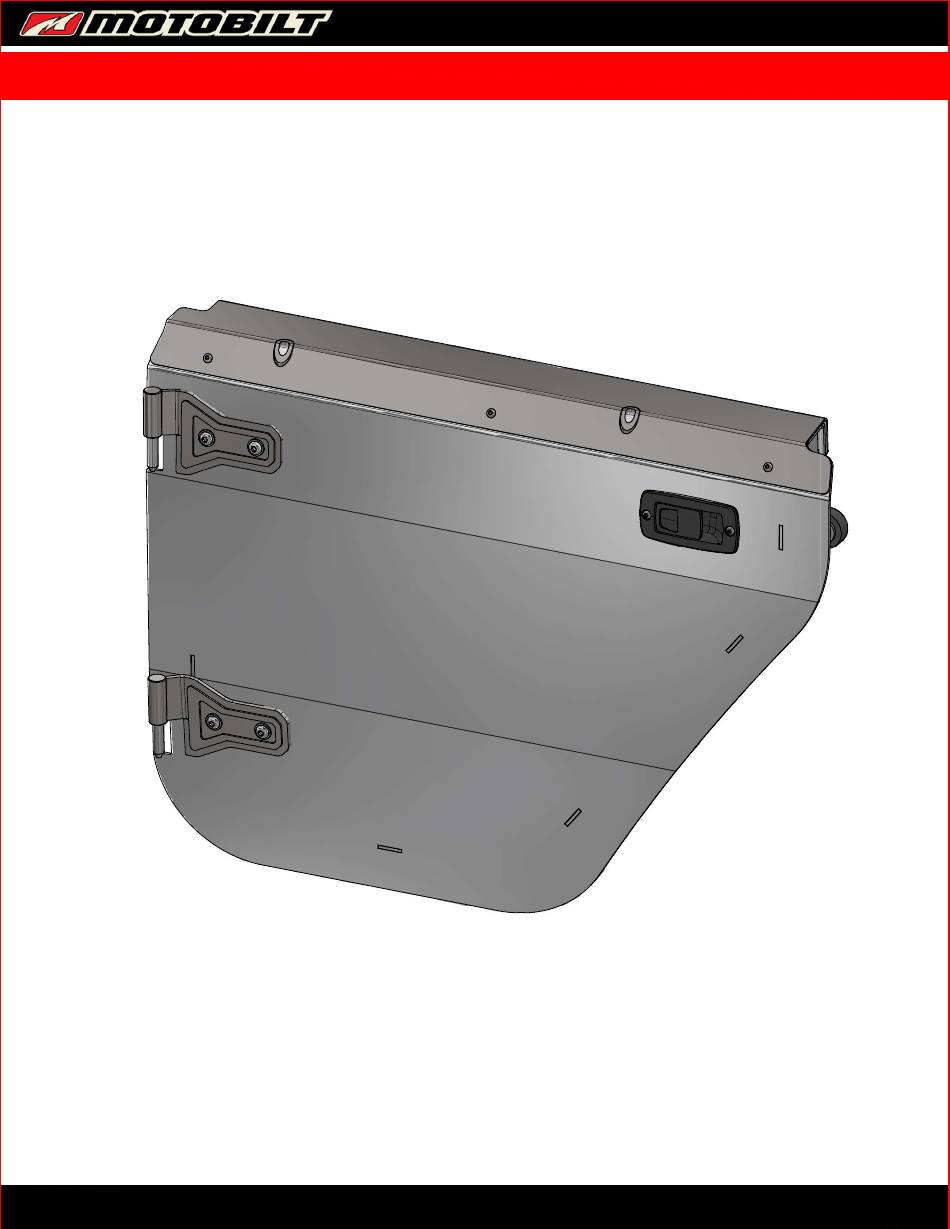

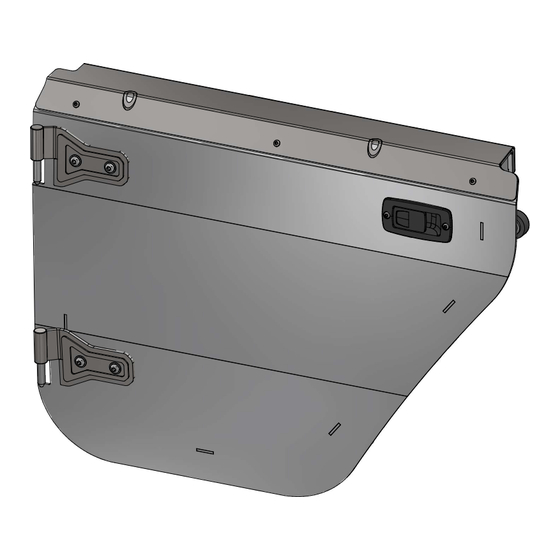

- Page 1 REV: 0 MB3061 - Assembly Instructions Rear Soft Upper Window Adapter Kit JKU ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: 0 MB3061 - Assembly Instructions Rear Soft Upper Window Adapter Kit JKU CONTENTS MB3061 Sill Weldment Driver Qty 1 MB3061 Sill Weldment Passenger Qty 1 Button Head Screw Flat Washer Nylock Nut #10-24 x 3/4" #10-24 Qty 6 Qty 6 Qty 6 motobilt.com | 334-219-2333...
- Page 3 REV: 0 MB3061 - Assembly Instructions Rear Soft Upper Window Adapter Kit JKU INSTRUCTIONAL VIDEO AVAILABLE https://www.youtube.com/watch?v=qh_I0KH-hxs Browse to YOUTUBE.com Search "Front and Rear Soft Upper Kit for Motobilt Jeep JK/JKU Half Doors" motobilt.com | 334-219-2333...
- Page 4 USING THE PAPER TEMPLATE. THIS HOLE WILL BE MARKED LINE UP WITH EXISTING WITH THE ACTUAL STEEL PARTS HOLE ON INTERIOR DOOR SKIN MB3061-01 PAPER TEMPLATE "A" USED FOR MARKING LARGE CUTOUT PRINT THIS SHEET ON 8-1/2" x 11" PAPER AT...
- Page 5 MB3061-01 PAPER TEMPLATE "B" USED FOR MARKING LARGE CUTOUT PRINT THIS SHEET ON 8-1/2" x 11" PAPER AT 100% SCALE LINE UP WITH EXISTING MARK THIS HOLE HOLE ON INTERIOR USING THE PAPER TEMPLATE. DOOR SKIN THIS HOLE WILL BE MARKED...
- Page 6 LINE UP WITH EXISTING HOLE ON INTERIOR CUT OUT THIS HOLE DOOR SKIN ON PAPER TEMPLATE MB3061-01 PAPER TEMPLATE "C" USED FOR MARKING LARGE CUTOUT PRINT THIS SHEET ON 8-1/2" x 11" PAPER AT 100% SCALE FOLD FOLD LINE UP WITH EXISTING...
- Page 7 JOIN TEMPLATES "A" + "B" + "C" NOT TO SCALE TEMPLATE "A" MATCH LINES JOIN WITH TAPE TEMPLATE "B" MATCH LINES JOIN WITH TAPE TEMPLATE "C"...
- Page 8 REV: 0 MB3061 - Assembly Instructions Rear Soft Upper Window Adapter Kit JKU STEP 1 1. Remove five (5) existing screws from half door. NOTE: You will reuse all existing screws. 2. Fold & place joined paper template "A/B/C" over the door sill. Align holes shown.
- Page 9 REV: 0 MB3061 - Assembly Instructions Rear Soft Upper Window Adapter Kit JKU STEP 2 1. Remove the inner door skin from half door. 2. Place both the Sill weldment in position. The welded tubes in each Door Sill weldment should loosely clear the cutouts you made in in the doors from Step 1.
- Page 10 REV: 0 MB3061 - Assembly Instructions Rear Soft Upper Window Adapter Kit JKU STEP 3 1. Will the inner door skin still removed, install button head screws, flat washers & nylocks through all of the drilled holes. 2. Install inner door skin.
- Page 11 REV: 0 MB3060 - Assembly Instructions Front Soft Upper Window Adapter Kit JKU STEP 4 INSTALL SOFT UPPER DOORS motobilt.com | 334-219-2333...
