3.2 Installation of the heat sink

Installation steps:

1. Remove the processor baffle (as shown below)

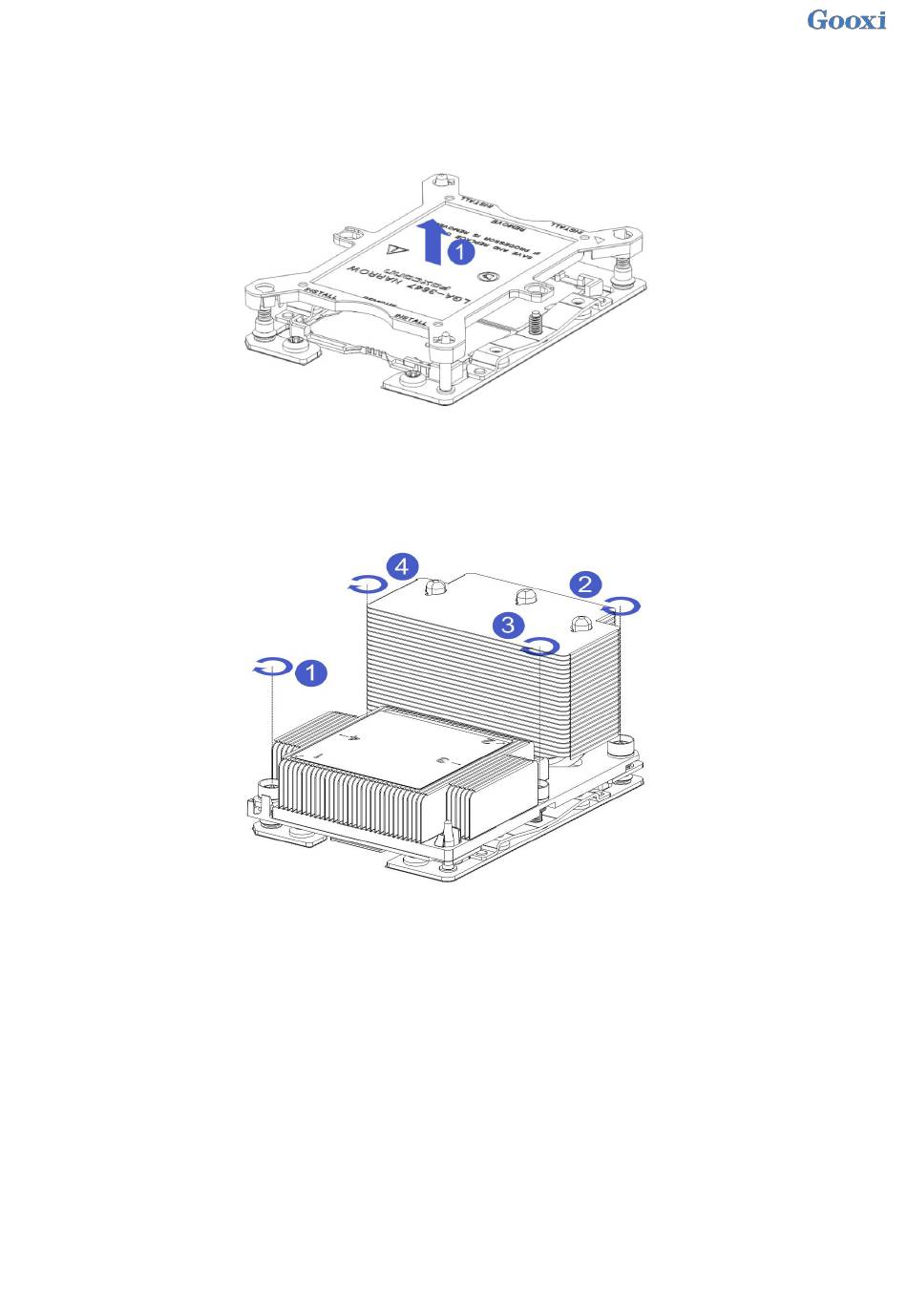

Figure 3-5
2. Align the heat sink with the heat sink fixing studs on the CPU base, and tighten the heat sink fixing screws in sequence
according to the instructions . (As shown below)
NOTE: The pins on the motherboard are extremely fragile and easily damaged. To avoid damaging the motherboard, do
not touch the processor or processor socket contacts.
Figure 3- 6
