Audio Processor ESP-88C and ESP-00
Standard Version Chassis
1. Electrical Tests
Required Items
• Audio Precision ATS-2 test station
• Aubit ESP-88 test switchbox with cables
and adapters
• ®
Bose CC-16 or CC-64 controller
•
IBM Compatible PC with Microsoft
®
Windows XP
• LAN Ethernet crossover cable
• DB9F to DB9F Null Modem cable
• ®
Bose ControlSpace
•
ATS-2 test station software
•
Microsoft Excel
Test Setup Procedures
1. Ensure that the PC has a valid IP address
[192.168.0.1 – 192.168.0.99]. To set your IP
address, click on START go to the CON-
TROL PANEL and click on NETWORK &
DIAL UP CONNECTIONS. Click on MAKE
NEW CONNECTION. Make a LAN connec-
tion. Click on PROPERTIES, then click on
INTERNET PROTOCOL TCP/IP. Set the IP
address to be between 192.168.0.1 and
192.168.0.99. The subnet mask will remain
255.255.255.0 and leave DNS settings
window blank. Click OK.
2. Connect the chassis under test to the
AuBit switcher and the ATS-2 test station as
shown in Figure 7.
3. If not installed on the PC, install the Bose
ControlSpace Designer software. Once the
software is installed, click on the icon to start
the program.
4. Once the software opens, load the ESP88
TEST connection.csp file. This is a test file
that is has the chassis pre-configured as a
straight pass-through to allow test.
If you don't have this file, perform the follow-
ing steps to set up the software and hard-
ware for test.

TEST PROCEDURES

®
®
software
74

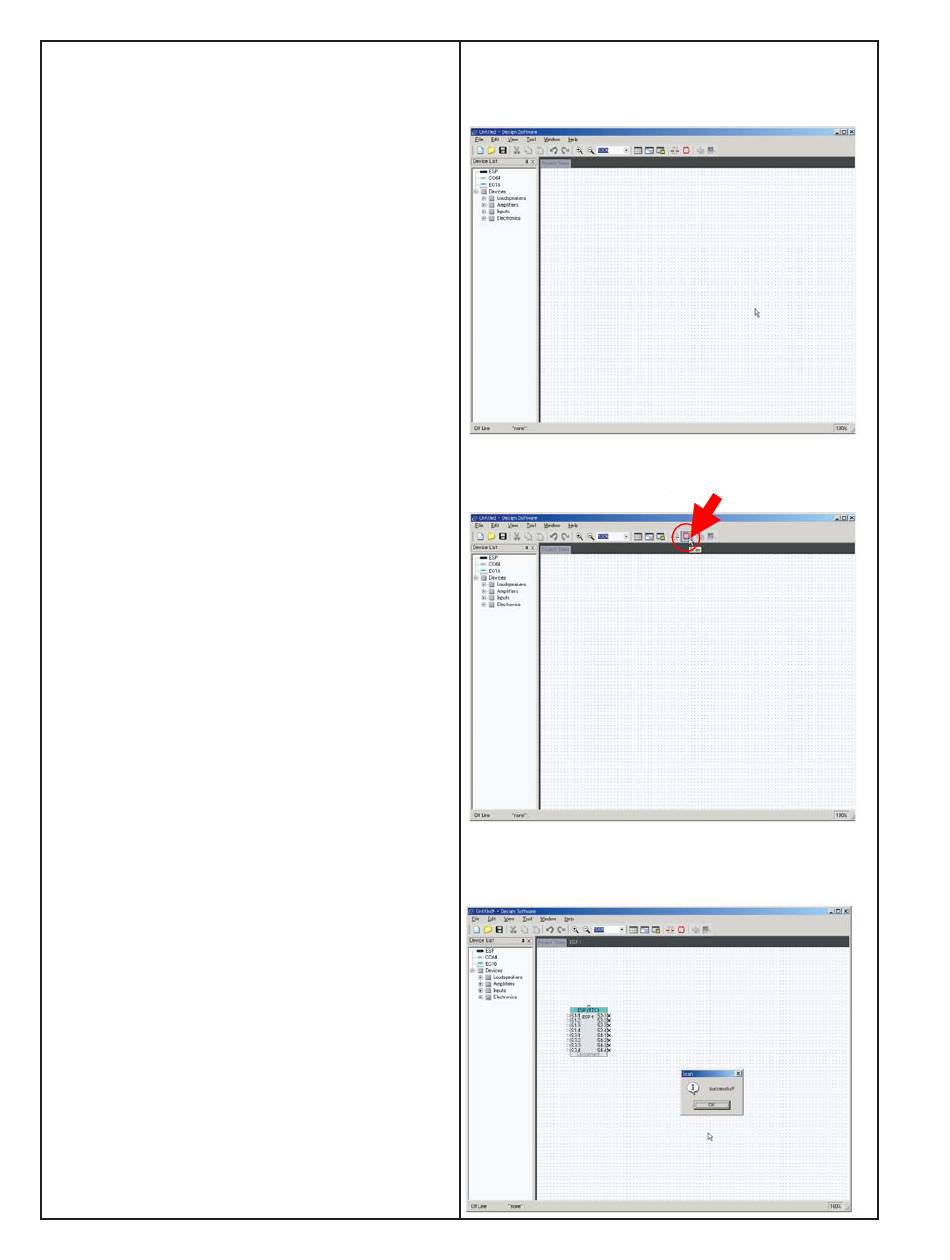

Once you open the ControlSpace software,
you should see a blank project window like
the one shown below.
Click on "Scan".
The connected ESP will appear on
"Project view". This case has no Technic.
