Main Part List, Controlspace Cc-64 Controller - Bose ControlSpace ESP-88C Service Manual

Item
Number
1 Metal EMC Shield, Case, SECC-T1, T=0.50MM
2 Front Panel
3 Knob
4 Nylon Washer, OD=6.1MM, ID=2.95MM, T=2MM
5 Keyboard Overlay, Plastic, W/S, Adhesive
6 LCM Module, STN, Blue, 12 Clock,
YMC402-11AAABUCL
7 LED PCB Assembly
8 Main PCB Assembly
9 Metal Panel, Aluminum
10 Screw, SI, MSP, M3X11.5MM
11 Screw, MSB, M3X6, NI
12 Spacer, Support, K33-7
13 Sponge
14 PVC Washer, ID=3.1MM, T=0.3MM

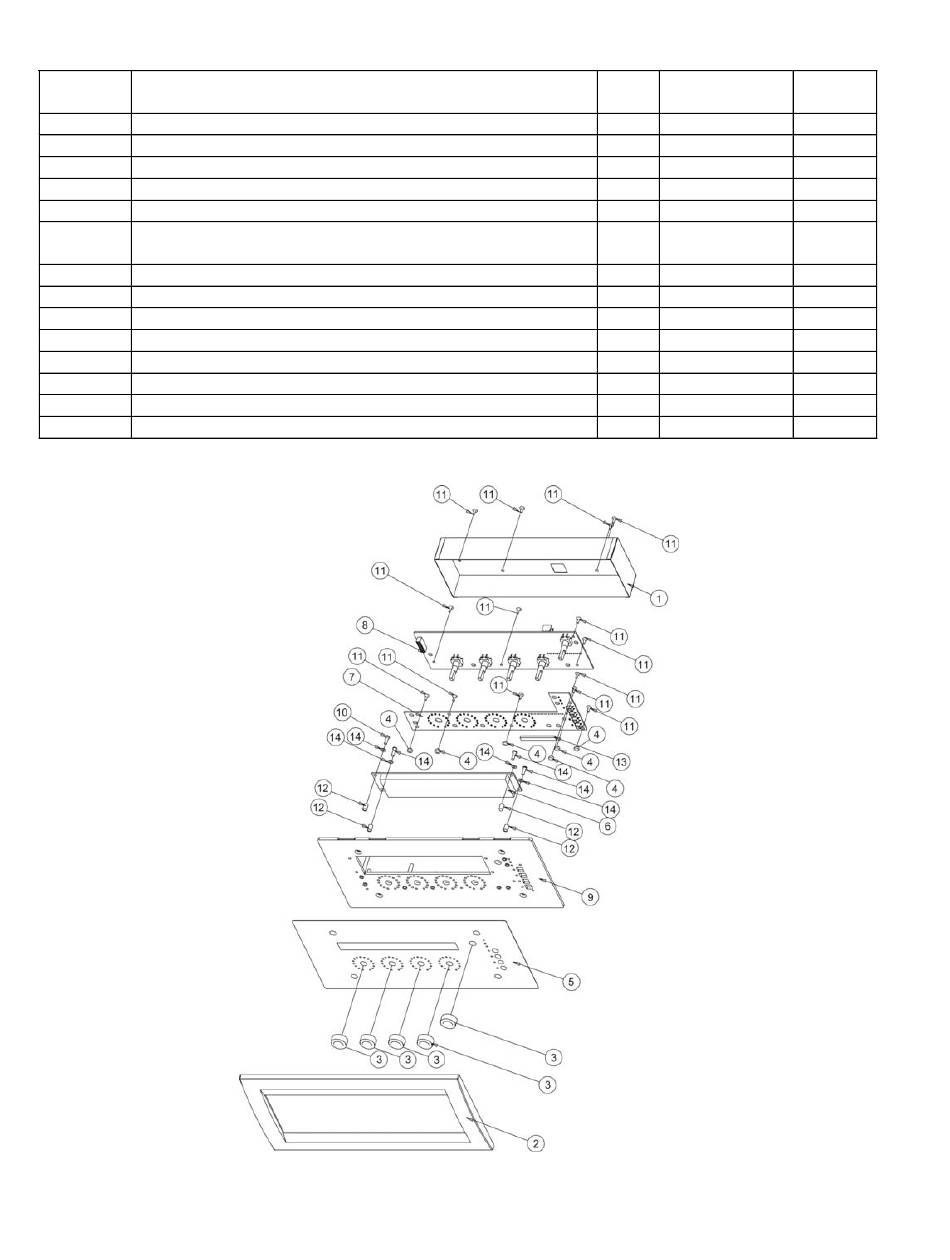

Figure 6. ControlSpace CC-64 Controller Exploded View
MAIN PART LIST
ControlSpace ® CC-64 Controller
Description
18
Qty Part Number
1 275816
1 275814
5 278523-002
6 -
1 277485
1 323977-001S
1 278524-001
1 278523-001
1 275815
4 -
14 -
4 -
1 -
4 -
Note
4
4
4
4
4
4
4
4
4
