Summary of Contents for Bose ControlSpace

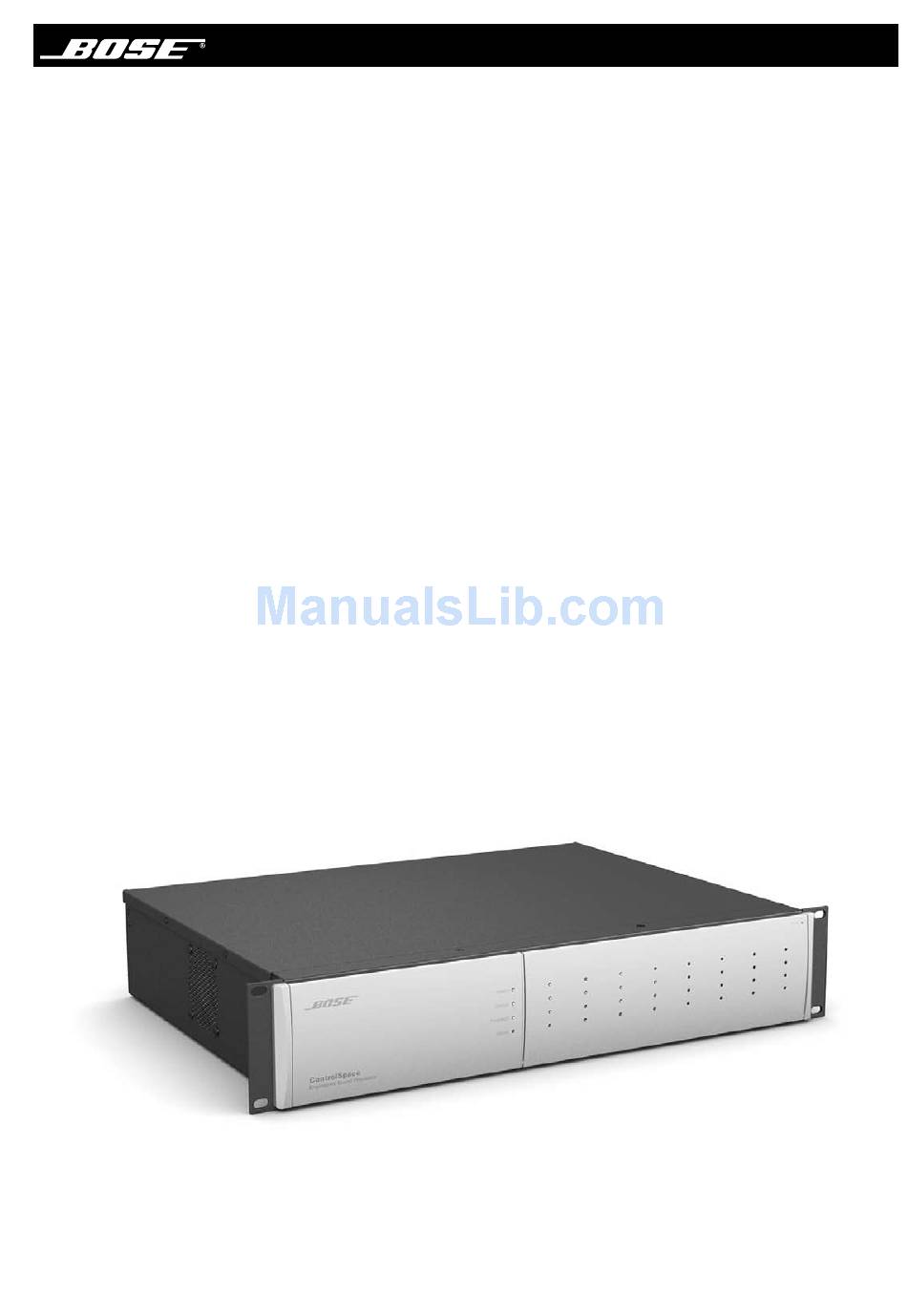

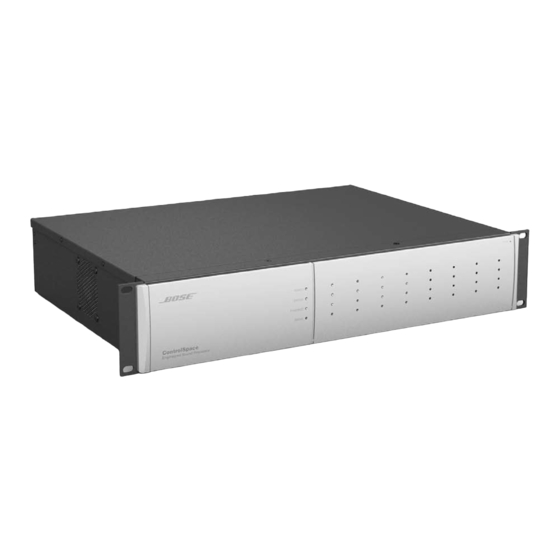

- Page 1 ControlSpace Engineered Sound Processor ® Safety Instructions & Install Guide...
-
Page 2: Important Safety Instructions
Low Voltage Directive 73/23/EEC. The service this product yourself. Opening or removing covers complete Declaration of Conformity can be found on www.bose.com. ©2008 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission. -
Page 3: Rack Mounting Considerations
Important Safety Instructions General precautions Rack mounting considerations CAUTION: Place the unit where it will be protected from This audio signal processor requires two 1.75" heat and allow adequate ventilation. Place the unit away (4.4 cm) rack space units with 12.8" (32.5 cm) inside from direct heat sources, such as heating vents and depth. -
Page 4: Features And Functions
Introduction Quick start Introduction • Install the ControlSpace Designer software The Bose ControlSpace Engineered Sound Proces- ® ® included with the ESP (always check www.pro. sor is a flexible, expandable and high-quality digital bose.com for latest version.) audio signal processor. The ESP-88 (base model) in- cludes eight inputs (microphone or line-level selectable) •... -
Page 5: Front Panel
Front Panel Indicators and Features Front Panel 1. Status indicator 6. Serial indicator Green = Netlist loaded, operating = RS232: Rx/Tx Yellow = DSP resource shortage Yellow = RS485: CC-16 controller (delay or cycles) command received = Error in netlist Green = RS485: CC-16 controller command transmitted = No netlist loaded... -
Page 6: Rear Panel Controls And Connections
Eight general purpose control inputs connectors are green) in slots 1 and 3. Eight general purpose control outputs These are inputs S1-1 through S1-4, and S3-1 through S3-4 in the ControlSpace ™ Designer software. 6. GPIO slot 2 For optional 2nd GPIO card 2. - Page 7 Modularity and Expansion Flexible architecture Remove the eight screws from the cover of the ESP and The ESP employs a flexible, modular architecture. The slide off the top to access the expansion card slots. flexible architecture provides two levels of DSP perfor- mance: up to 32 general purpose control inputs and outputs, and up to 64 audio channels.
-
Page 8: Expansion Cards
Modularity and Expansion Expansion cards Maximum expansion card configuration Three types of optional cards are available: DSP The ESP-00 has eight available audio expansion slots expansion; GPIO; and Audio. and two available GPIO slots. DSP expansion card PC041769 4 ch input/output 4x28 8x24 12x20 16x16 20x12 24x8 28x4 4 ch input/4x4 I/O 20x12 24x12 20x8 24x8 24x4 28x8 32x4... -
Page 9: Audio Connections
Modularity and Expansion Audio connections Inputs include a 5k ohm pull-up resistor allowing SPST switches to be wired from input to ground. Potentiom- A microphone or line level audio source can be con- eters can be wired in series from the control input to nected to the Mic/Line inputs using one of the following ground. -
Page 10: Troubleshooting
Unnatural sound • Verify that the correct EQ and/or crossover is used in the signal path. Status LED is off • Power is off or netlist is not loaded. Use ControlSpace Designer software to load a netlist/configuration Ethernet LED is off •... -
Page 11: Technical Specifications
Technical Specifications Audio channels Signal processing Type 32-bit floating-point digital signal processor(s) Analog 32 max (all slots full) Digital (AES3) 64 (all slots full) Clock speed 200MHz Maximum 1600 MIPS/1200MFLOPS calculation (6400MIPS/4800MFLOPS with DSP Mechanical option card) Dimensions 18.9" W x 3.5" H x 12.6" D Delay memory 16MByte/72s(Maximum) (482 mm x 88 mm x 320 mm) - Page 12 Technical Specifications Dimensions...
-
Page 13: Warranty
THE LIMITATION OF LIABILITY TO SPECIFIED AMOUNTS, SO of Bose. Bose systems are not designed to be used in every THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY environment, so please review your Owner’s Guide. WHERE TO YOU. - Page 14 2008 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM316788 Rev 00...
