Bose PowerMatch ESPLink Quick Start Manual

WARNING: This product is intended for installation by professional installers only.
CAUTION: Make no modification to the system or accessories. Unauthorized alterations may compromise safety, regulatory
compliance, and system performance.
CAUTION: Electro-Static Discharge (ESD) sensitive device. Handle with care.
Thank you for selecting Bose
professional installers with basic installation and safety guidelines for installing the optional ESPLink Digital Input Card into a Bose
PowerMatch amplifier. Please read this document before attempting installation.
To install the ESPLink card into a PowerMatch amplifier, follow these instructions:
1. Turn off and unplug the amplifier.
2. Detach the rear expansion slot cover plate by removing the 2 screws. (See Figure 1.)
3. Align the ESPLink card with the plastic card guides in the open slot; insert until the rear panel is flush with the rear of the amplifier.
(See Figure 2.)
4. Screw the card into place.
5. Plug in the power cord and turn on the amplifier.
6. Using the front panel, navigate to the FIRMWARE VERSION screen (MAIN MENU<UTILITY<FIRMWARE VERSION).

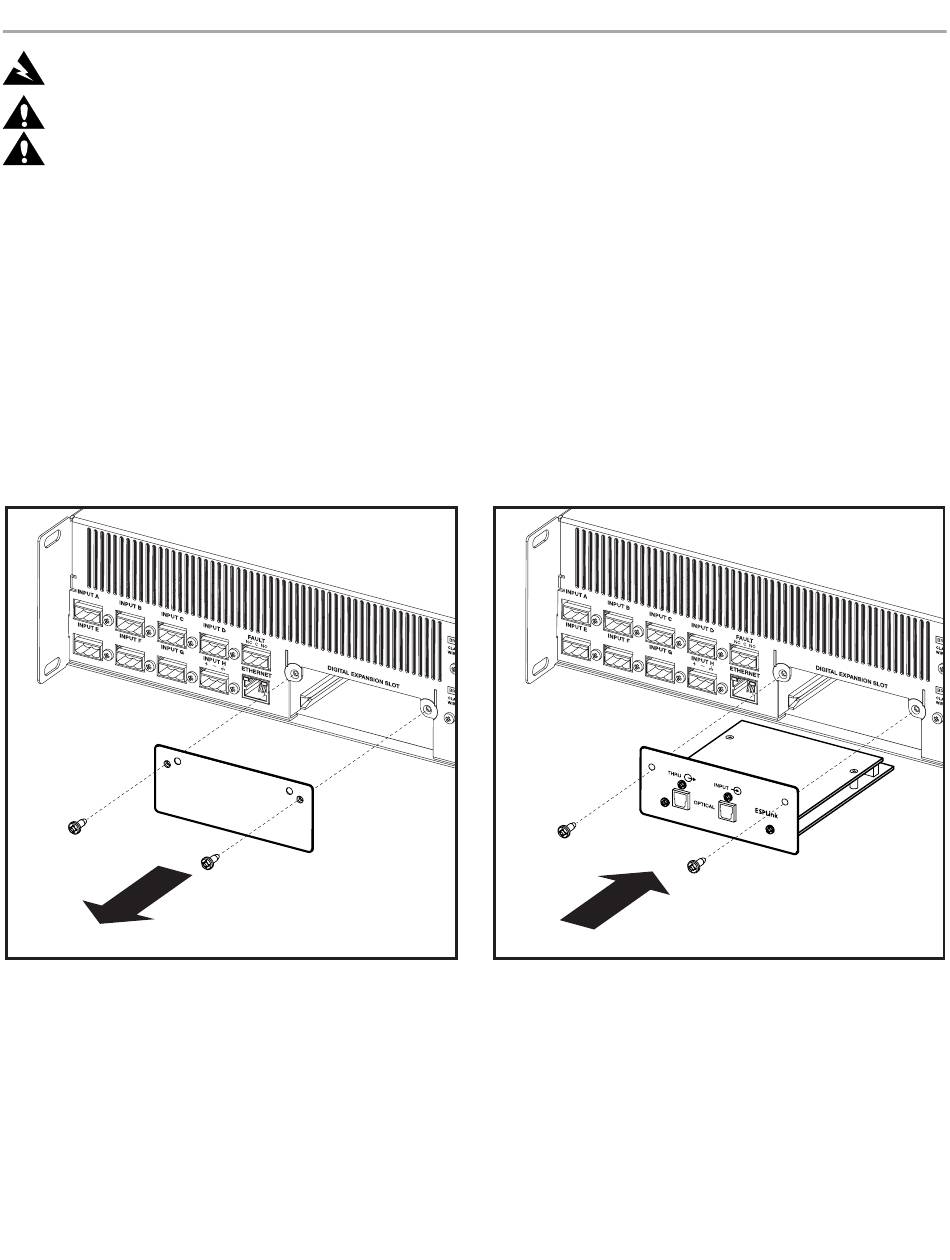

Figure 1.
®
Bose PowerMatch
PowerMatch amplifiers for your sound reinforcement system. This document is intended to provide
® ®
®
ESPLink Digital Input Card
Figure 2.
