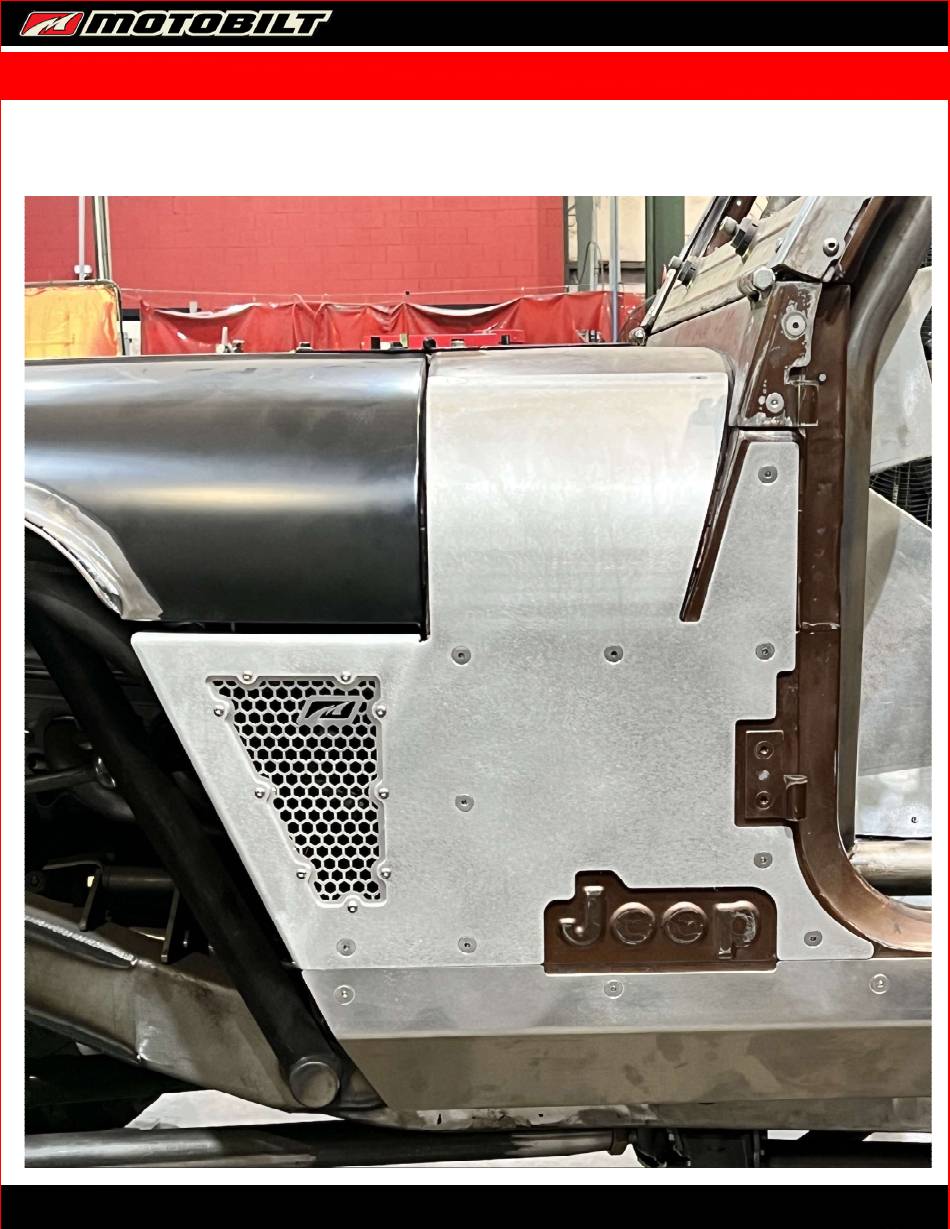

- Page 1 REV: 0 MB1230 - Assembly YJ Cowl Armor with Fenders ASSEMBLY INSTRUCTIONS This Assembly Instructions package is the same for MB1230 Steel version or MB1230-A Aluminum version motobilt.com | 334-219-2333...
- Page 2 REV: 0 MB1230 - Assembly YJ Cowl Armor with Fenders CONTENTS MB1230-03 Qty 2 MB1230 - DRIVER MB1230 - PASSENGER Qty 1 Qty 1 Button Head Screw Flat Washer #10-24 x 3/4" Qty 20 Qty 20 (Includes 2 Spares) (Includes 2 Spares)
- Page 3 REV: 0 MB1230 - Assembly YJ Cowl Armor with Fenders COMPATIBLE MOTOBILT PRODUCTS MB1224 YJ Hood Fender Flare Plates MB1230 YJ Cowl Armor with Fenders This product is also compatible with a factory YJ hood MB1173 Steel Boatside Rocker Guards for YJ MB1173-A Aluminum Boatside Rocker Guards for YJ MB1171 Steel 15"...
- Page 4 REV: 0 MB1230 - Assembly YJ Cowl Armor with Fenders STEP 1 1. Remove factory inner & outer fenders from both the driver & passenger sides. 2. See diagram below for general parts & fasteners assembly. Nylock Nut 5/16"-18 Flat Washer 5/16"...
- Page 5 REV: 0 MB1230 - Assembly YJ Cowl Armor with Fenders STEP 2 Drill 11/32" diameter holes through the body & install fasteners (10 locations each side) Align Cut Outs in MB1230 with Cut Outs in Rocker Armor Position MB1230-03 behind &...
