- Page 1 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit TJ/LJ/YJ FRONT HALF FRAME KIT ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
-
Page 2: Kit Components

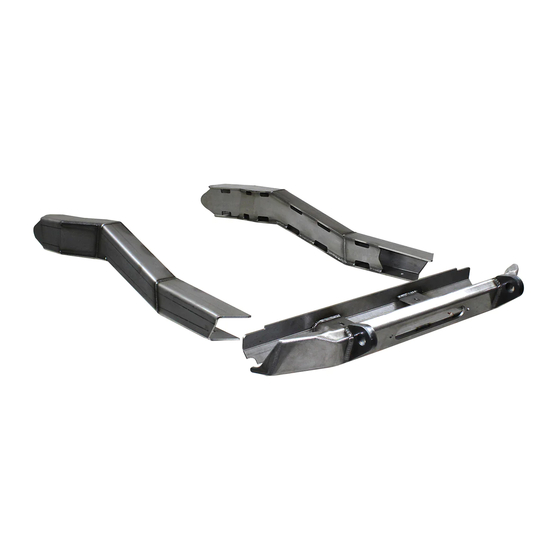

REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit KIT COMPONENTS NYLOCK NUT HEX BOLT 7/16"-14 7/16"-14 x 1" GR8 MB3034-11 Qty: 2 Qty: 2 SIDE PLATE Qty: 2 MB3034 - PASSENGER FRAME RAIL Qty: 1 MB3034 - DRIVER FRAME RAIL... - Page 3 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit TJ/LJ FRAME MODIFICATION REMOVE THE FRONT UPPER AND LOWER CONTROL ARM MOUNTS HIGHLIGHTED IN RED. ONCE THE MOUNTS ARE REMOVED, GRIND THE FRAME SMOOTH. REMOVE REMOVE REMOVE REMOVE motobilt.com | 334-219-2333...
- Page 4 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit TJ/LJ FRAME MODIFICATION TJ/LJ FRAME UNMODIFIED CONFIRM FRAME IS LEVEL FRONT FRAME STOP ALL THE MEASUREMENTS ARE TO BE TAKEN FROM THE BOTTOM CORNER OF THE FACTORY BODY MOUNT. DRAW TWO LINES. THE LINE CLOSER TO THE CUT LINE FRONT OF THE FRAME IS WHERE YOU WILL CUT.
- Page 5 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit YJ FRAME MODIFICATION TJ/LJ FRAME UNMODIFIED CONFIRM FRAME IS LEVEL FRONT FRAME STOP CUT LINE ALL THE MEASUREMENTS ARE TO BE TAKEN FROM THE BOTTOM CORNER OF THE FACTORY BODY MOUNT. DRAW TWO LINES. THE LINE CLOSER TO THE 2 13/16 FRONT OF THE FRAME IS WHERE YOU WILL CUT.
- Page 6 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit FRAME RAIL FACTORY FRAME DRIVER FRAME RAIL TJ FRAME FRONT CONFIRM THE TWO SECTIONS OF CONFIRM LEVEL FRAME ARE LEVEL TO ENSURE THEY ARE PARALLEL AND INSTALLED CORRECTLY CONFIRM LEVEL...
- Page 7 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit BUMPER INSTALL MB3034 - PASSENGER FRAME RAIL USE THE 7/16" HARDWARE TO LOCATE AND SECURE THE BUMPER THEN REMOVE AFTER TACK WELDING HEX BOLT 7/16"-14 x 1" NYLOCK NUT 7/16"-14 HEX BOLT 7/16"-14 x 1"...
- Page 8 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit BUMPER SIDE PLATE INSTALL MB3034 - DRIVER FRAME RAIL MB3034-11 SIDE PLATE MB3034-11 SIDE PLATE NOTE: HARDWARE IS REMOVED! MB3034 - PASSENGER FRAME RAIL MB3034 - BUMPER MB3034 - DRIVER FRAME RAIL...
- Page 9 REV: 0 MB3034 - Assembly Instructions TJ/LJ/YJ Front Half Kit FINISH WELD MB3034 - DRIVER FRAME RAIL MB3034 - DRIVER FRAME RAIL FACTORY FRAME MB3034 MB3034 - BUMPER DRIVER FRAME RAIL MB3034 - BUMPER MB3034-11 SIDE PLATE MB3034 DRIVER FRAME RAIL...
