1. Press and hold the DOWN Key until the table stops at the lower position limit
2. Release the DOWN Key
3. Press and hold the DOWN Key again
▸ The table will move down slightly, then up again
4. Release the DOWN Key
▸ The Position Reset Procedure is complete.
INFO
If your SMARTneo-2G / SMARTneo-3G has been parameterized with additional stopp-
ing points (e.g. a Container Stop Position), repeat Step 3 until the table has moved
upwards again.

6.8 CONFIGURATION EXAMPLE

1 SMARTneo-2G / SMARTneo-3G Control Box
2 Actuators
3 User interface (see Chapter 6.3)
4 Mains cable
1
M1
2
3

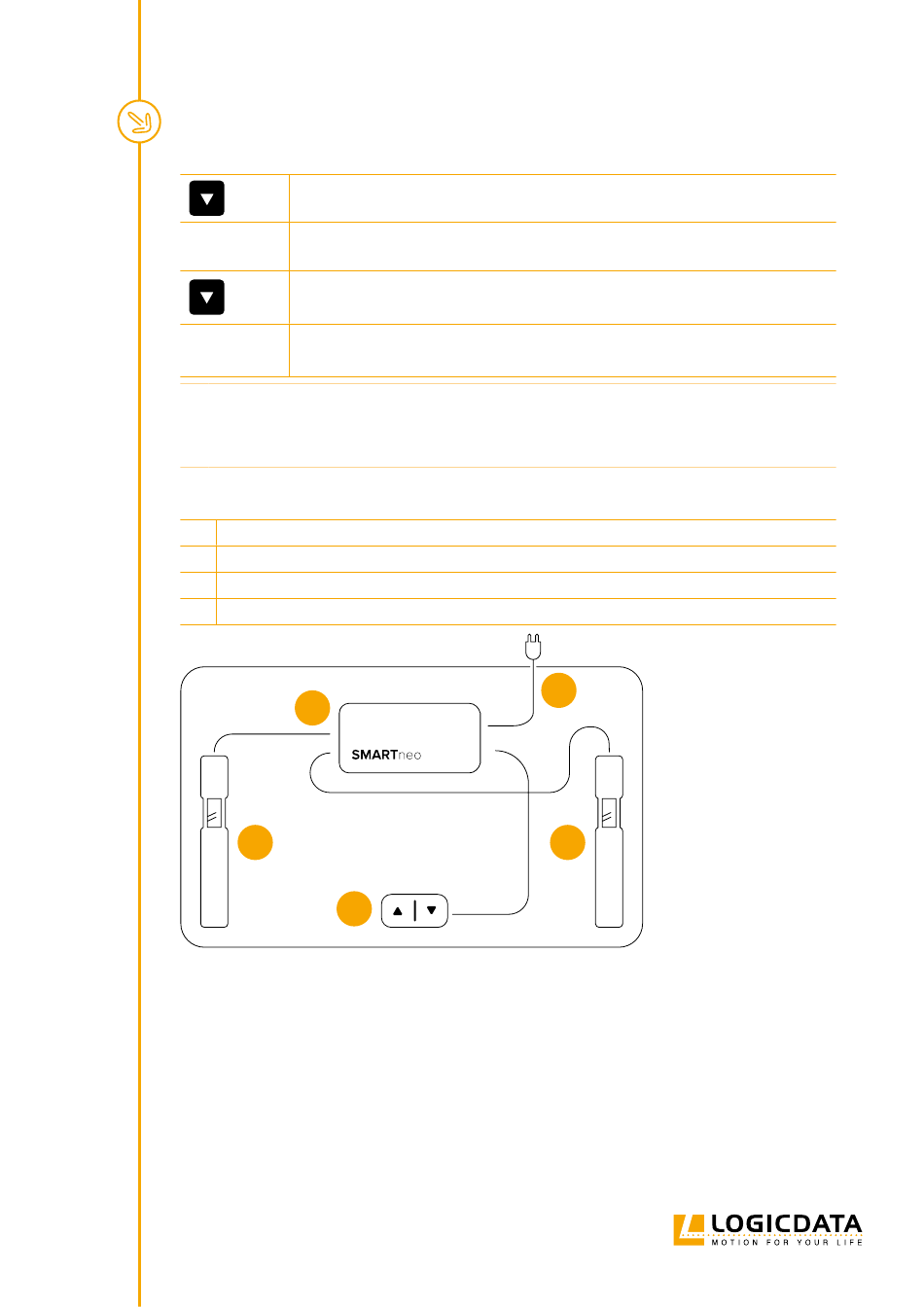

Fig. 6: Configuration Example SMARTneo-2G / SMARTneo-3G
